7800690SN Briggs and Stratton - 107.280070, ZTS7000, 285Z, 26HP w/52" Mower Deck (2011)

Model: 7800690SN

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

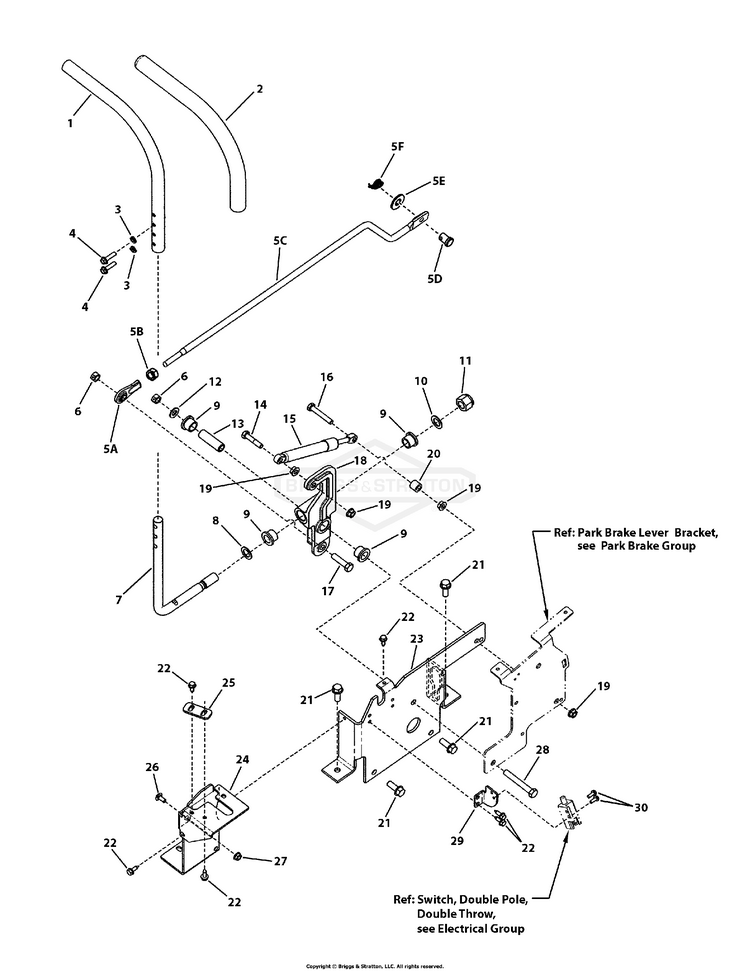

Control Group - Left Hand

...
...
1
HANDLE BS-7043338AYP
...
2
GRIP TWIN STICK BS-7072212YP
...
3
WASHER BS-5025169FS
...
4
BOLT, 1/4-20 X 1", GD BS-5025010X8SM
...
5A
ROD END, (3/8-24 thread) BS-7100743YP
...
5B
NUT, HEX, 3/8-24 BS-703895
...
5C
ROD, Link Foward/Reverse (3/8-24 thread) BS-7104168YP
...
5D
PIN, 7/16 x 1" Clevis BS-7900000SM
...
5E
FW, .438X1X.084 YZ BS-7090517SM
...
5F
COTTER PIN, 1/2 SELF, BS-7091594SM
...
6
NUT, 3/8-16 BS-703347
...
7
ROD, Handle R.H. BS-7200004SM
...
8
WASHER, .64 x .99 x .05 Flat, YZ BS-7091628SM
...
9
BUSHING BS-7013874SM
...
10
WASHER, 5/8 ID x 1.00 OD x .065 Nylon BS-7900016SM
...
11
NUT, NYLOCK, 5/8-18 BS-703432
...
12
WASHER, FLAT .406X.81 BS-71072MA
...
13
SPACER, Sleeve, RZT BS-7100714YP
...
14
CAPSCREW, 5/16-18X1.5 BS-703906
...
15
DAMPENER, CONTROL BS-5103511YP
...
16
CAPSCREW,5/16-18 X 2 BS-703867
...
17
CAPSCREW,3/8-16X1.5 BS-703406
...
18
ARM, Die Cast Aluminum BS-7100715YP
...
19
NUT, 5/16-18, GR5 BS-703409
...
20
SPACER BS-7023206YP
...
21
SCREW, Hex Washer Head, Self Tap, 3/8-16 x 1 BS-704000
...
22
BOLT, GR5, 1/4X.0750 BS-703466
...
23
CONTROL BRACKET, LH BS-7043302BMYP
...
24
BRACKET, Guide, Stick, Control, LH BS-7301128BMYP
...
25
PLATE, Foward/Reverse Adjust BS-7300009BMYP
...
26
BOLT, 1/4-20 x 5/8" Round Head Short Square Neck, GR 5, YZ BS-7091573YP
...
27
NUT, 1/4-20, GR5 BS-703233
...
28
BOLT, 3/8-16 X 2-3/4" BS-5025013X22SM
...
29
BRACKET, SWITCH BS-7300032BMYP
...
30
SCREW,HEX, #10-24X.5 BS-704060
...
...
...
...
...
