7800690 Briggs and Stratton - 107.280071, ZTS7000, 285Z, 26HP w/52" Mower Deck (2011)

Model: 7800690

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

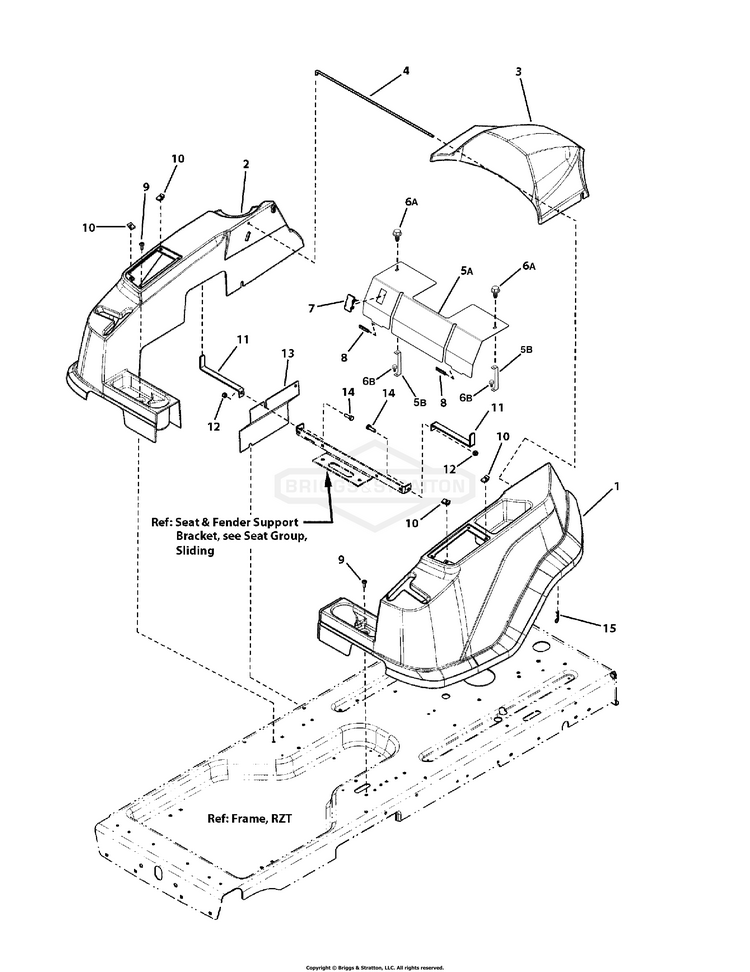

Fender Group

...
...
1
FENDER, LH BS-7103776YP
...
2
FENDER, RH BS-7103775YP
...
3
COVER, Engine BS-7103777YP
...
4
ROD, Pivot, Hood BS-7103998YP
...
5A
COVER, BATTERY, 285z BS-7301216YP
...
5B
BRACKET, Battery Cover BS-7301217YP
...
6A
SCREW, HEX, 1/4-20X.5 BS-704130
...
6B
CAPSCREW, Hex Washer, Taptite, 3/8-16 x 3/4 BS-025X151MA
...
7
PLUG-HOLE BLACK BS-1722611SM
...
8
STRIP, TRIM BS-7503228YP
...
9
SCREW BS-770003
...
10
NUT BS-705876
...
11
BRACKET, Support, Fender BS-7301101BMYP
...
12
NUT, HEX, 5/16-18 BS-703902
...
13
PLATE, Side, RH BS-7301126BMYP
...
14
BOLT BS-5025011X8FS
...
15
PIN, 3/32 X 1.6 BS-703300
...
...
...
...
...
