7800629 Briggs and Stratton - E20M42, 20HP w/42" Mower Deck (2010)

Model: 7800629

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

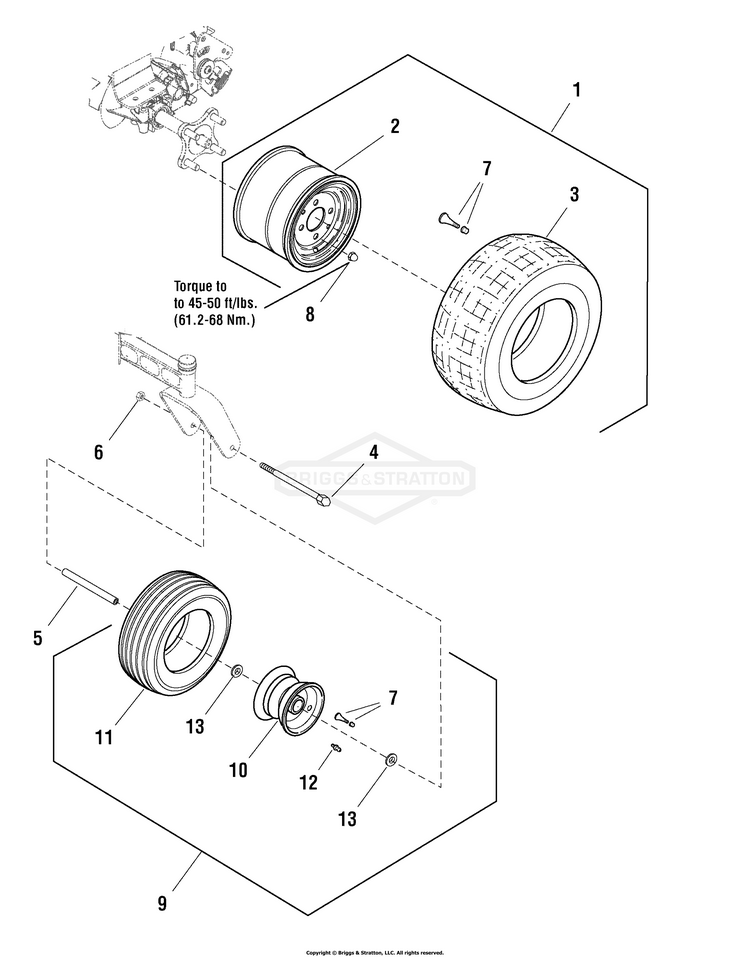

Wheel & Tire Group (W7501728)

...
...
1
WHEEL & TIRE ASSEMBLY, 18 x 8-1/2-8 BS-1726383SM
...
2
WHEEL & TIRE ASSEMBLY, Rear (Included with Ref. 1) BS-1726383SM
...
3
TIRE, 18 x 8-1/2 - 8 (Included with Ref. 1) BS-1734877SM
...
4
HHCS, 7/16C X6 GR5 YZ BS-7091772SM
...
5
SPACER - CASTER BS-1734841SM
...
6
NUT, Hex Center Lock BS-7090839SM
...
7
VALVE STM&CP,TR41 SE (Included with Ref. 1 & 9) BS-024373MA
...
8
NUT, Hex Lug, 7/16-20 BS-2177725SM
...
9
WHEEL & TIRE ASSY BS-1734013SM
...
10
WHEEL, 11 x 4 - 5 (Included with Ref. 9) BS-1734876SM
...
11
TIRE, Caster, 11 X 4.0 - 5 (SV) (Included with Ref. 9) BS-5022433X1SM
...
12
FITTING, Lube BS-7104428YP
...
13
BUSHING, 5/8 ID (Included with Ref. 9) BS-1759320YP
...
...
...
...
...
