7800514 Briggs and Stratton - 107.289920, ZTS 6000, 26HP w/52" Mower Deck (2009)

Model: 7800514

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

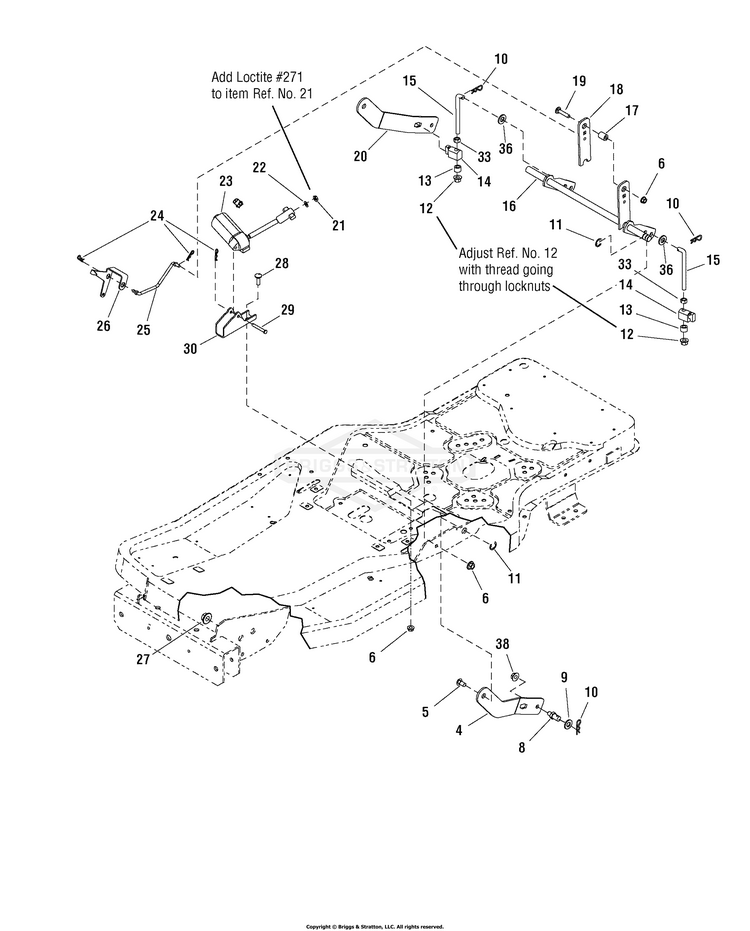

Lift Group (7501424)

...
...
4
ARM, Mower Lift L.H. BS-1733535ASM
...
5
BOLT, Shoulder BS-009X67MA
...
6
NUT, 5/16-18, GR5 BS-703409
...
8
PIN, 3/8-16 BS-704054
...
9
WASHER, 0.516IDX1OD BS-703853
...
10
PIN, 3/32 X 1.6 BS-703300
...
11
RING, Klipring, 5/8" BS-1704420SM
...
12
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
13
SPACER BS-1666294SM
...
14
TRUNNION BS-1731894SM
...
15
ROD, Mower Lift 3/8-16 x 1 LG Thread BS-1734217SM
...
16
LIFT SHAFT ASSEMBLY BS-1733356ASM
...
17
SPACER, Powdered Metal BS-1673796SM
...
18
ARM, Lift Trunnion BS-1734336ASM
...
19
BOLT, 5/16-18X1.5 BS-703296
...
20
ARM, Mower Lift R.H. BS-1733536BMYP
...
21
NUT, Hex, 1/4-20 L.H. Thread BS-1960757SM
...
22
WASHER BS-703332
...
23
MOTOR, Electric BS-1761788YP
...
24
PIN, 13X1.19 BS-703430
...
25
ROD, Height of Cut Indicator BS-1733572SM
...
26
INDICATOR, Height of Cut BS-1733454SM
...
28
BOLT, CRRG, 5/16-18X1 BS-703800
...
29
PIN, SHEAR BS-703063
...
30
BRACKET, Electric Motor Mount BS-1733533BMYP
...
33
NUT, HEX, 3/8-16 BS-703577
...
36
WASHER, FLAT BS-703878
...
38
NUT, CNTR LCK, 3/8-16 BS-703893
...
...
...
...
...
