7800514 Briggs and Stratton - 107.289920, ZTS 6000, 26HP w/52" Mower Deck (2009)

Model: 7800514

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

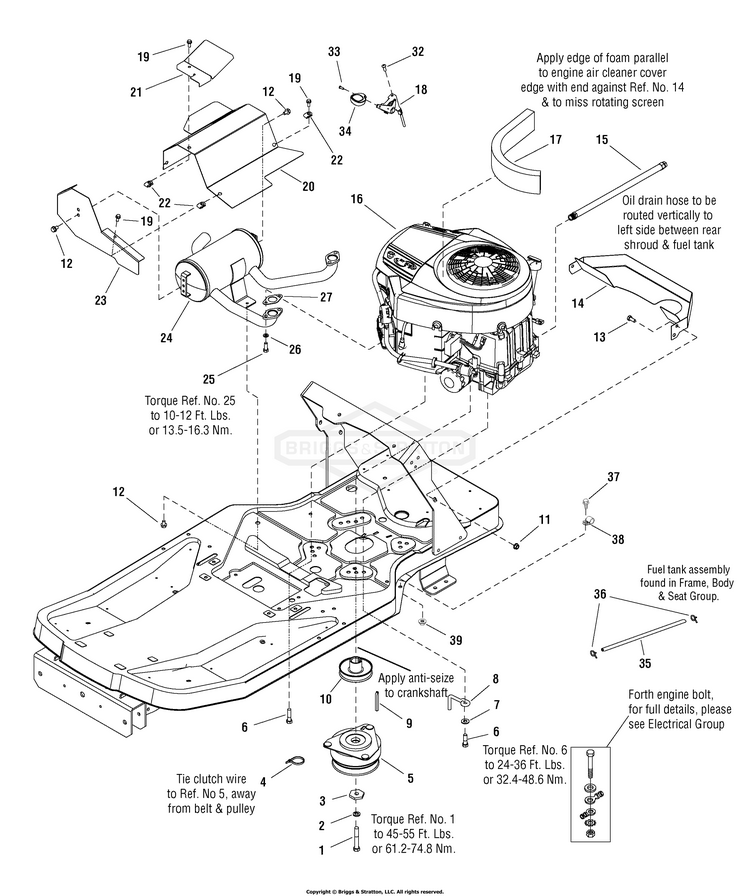

Engine Group - 26HP Briggs & Stratton (7501422)

...
...
1
CAPSCREW, Hex Head, 7/16-20 x 2-3/4, G5 BS-7027266SM
...
2
LCKWSHR,7/16,SPLIT RE BS-704007
...
3
WASHER, HEX, 0.453ID BS-1708264SM
...
4
TIE, Self Locking, 3-5/8 LG BS-2832747SM
...
5
KIT, ELECTRIC CLUTCH BS-1687746YP
...
6
SCREW-HEX WSHR HD TAP BS-2828635SM
...
7
WASHER, FLAT BS-703878
...
8
RETAINER, Clutch BS-7101717SM
...
9
KEY, Parallel, Plain, 1/4 x 1/4 x 1-1/4 BS-2154096SM
...
10
PULLEY ASSEMBLY, Engine BS-7101716SM
...
11
NUT, 5/16-18, GR5 BS-703409
...
12
SCREW, 5/16-18X.5 BS-703985
...
13
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
14
AIR DUCT, Inlet BS-1733414ASM
...
15
HOSE-OIL DRAIN .375ID BS-1726498SM
...
16
ENGINE, 26HP B&S Platinum Twin (Model - 445877, Type - 0132, Trim - B1) BS-445877-0132-B1
...
17
SEAL, Foam Air Duct, 1 x 2-1/2", 12" Long BS-1734189SM
...
18
CONTROL, Throttle BS-7103123YP
...
19
CAPSCREW, Hex Flange, Whiz Lock, 1/4-20 x 5/8 BS-1960295SM
...
20
HEAT SHIELD, Muffler Top BS-1734246ASM
...
21
HEAT SHIELD, Throttle BS-1728017SM
...
22
NUT BS-705876
...
23
SHIELD, Heat, Muffler Side BS-1727939ASM
...
24
MUFFLER, 24 HP V-Twin ELS BS-1734061SM
...
25
CAPSCREW, Hex Socket Head, 5/16-18 x 3/4 BS-1936228SM
...
26
WASHER, 5/16" LOCK BS-5025170SM
...
27
GASKET, Exhaust BS-690970
...
32
SCREW, 1/4-20X5/8 BS-703953
...
33
SCREW, Pan Head Taptite Combo, 310-16 x 3/4 BS-7091195SM
...
34
KNOB, Slot BS-1725337SM
...
35
** HOSE, Fuel, Low Perm, 1/4" I.D. x 19-1/2" Long (See Frame, Body & Seat Group for fuel tank assembly.) BS-1734995SM
...
36
CLAMP, Hose BS-791850
...
37
SCREW, 5/16-18 BS-703354
...
38
HARNESS CLIP, 5/8" BS-7900020SM
...
39
NUT, 5/16-18, GR5 BS-703409
...
...
...
...
...
