7800505 Briggs and Stratton - 309007x66A, 10.5HP w/30" Mower Deck, CE (2009-10)

Model: 7800505

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

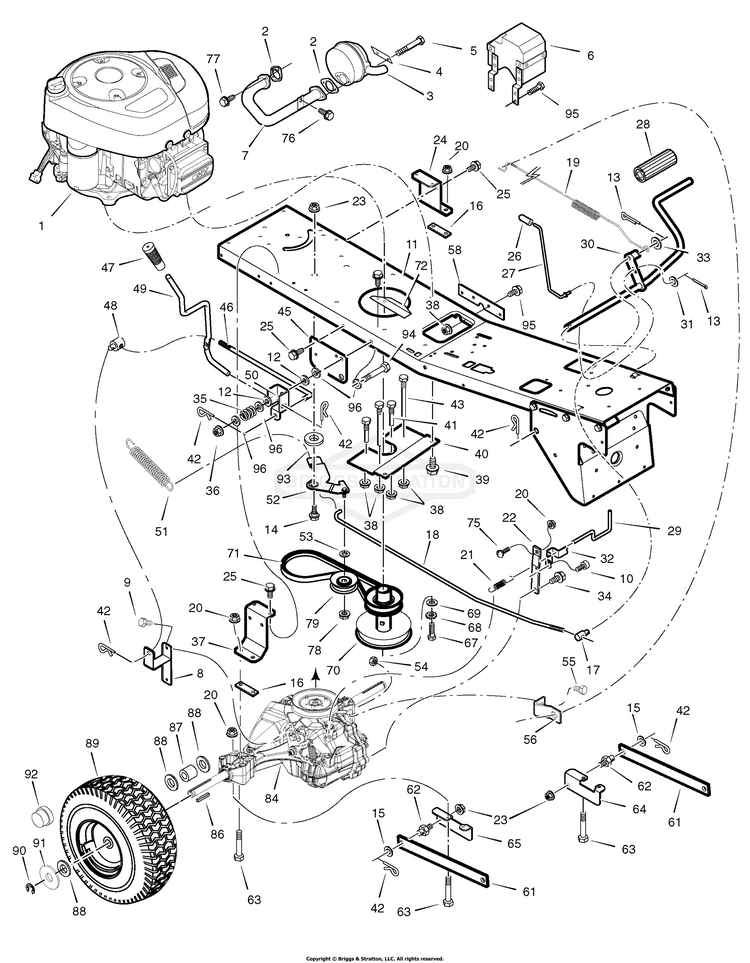

Motion Drive

...
...
1
ENGINE, Briggs & Stratton * (Engine Model: 215807-0135-B1) BS-215807-0135-B1
...
2
GASKET, Exhaust BS-692236
...
3
MUFFLER BS-1401358MA
...
4
LOCK-SCREW 223016 BS-092378MA
...
5
BOLT, Hex, 5/16-18 x 4-1/8 BS-01X134MA
...
6
SHIELD, Heat BS-1401375MA
...
7
TUBE, Exhaust BS-1401357MA
...
8
BRACKET, Shift Lever BS-1741784ZYP
...
9
BOLT, Hex Flange, 5/16-18 x 3/4 BS-001X75MA
...
10
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
11
FRAME (Use on models after Serial Number 2013481797) BS-885058ZYP
...
11
FRAME (Use on models after Serial Number 2013481797) BS-885370ZYP
...
12
WASHER, FLAT- DELRIN BS-17X217MA
...
13
PIN, COTTER, 3/32X.75 BS-703312
...
14
BOLT, Shoulder, 3/8-16 x 5/8 BS-009X39MA
...
15
WASHER, 1/2 BS-017X91MA
...
16
PLATE, Transaxle BS-1742526ZYP
...
17
NUT-ADJUSTING BS-094815ZMA
...
18
ROD - CLUTCH BS-1401305ZMA
...
19
SPRING, Brake BS-165X165MA
...
20
NUT, HEX FLNG,5/16-18 BS-704067
...
21
SPRING, Roll Release BS-1742524YP
...
22
BRACKET, Torque BS-1742527ZYP
...
23
NUT, CNTR LCK, 3/8-16 BS-703893
...
24
BRACKET, LH - TRANSAX BS-1401268E701MA
...
25
SCREW, 5/16-18 x 3/4 BS-26X249MA
...
26
GRIP BS-1401337MA
...
27
ROD, Parking Brake BS-1401112MA
...
28
PEDAL-BRAKE BLACK RUB BS-1727261SM
...
29
ROD, Roll Release BS-1401304ZMA
...
30
ROD, Clutch/Brake BS-1401127E701MA
...
31
WASHER BS-017X38MA
...
32
BRACKET, Roll Release BS-1401303E701MA
...
33
WASHER, FLAT .406X.81 BS-71072MA
...
34
SCREW BS-26X216MA
...
35
SPRING, Compression BS-164X39MA
...
36
NUT, Nylock, 3/8-24 BS-15X119MA
...
37
BRACKET, TRANSAXLE RH BS-1401042E701MA
...
38
NUT, 5/16-18, GR5 BS-703409
...
39
SCREW-HEX WSHR HD TAP BS-2828635SM
...
40
PLATE, Belt Guide BS-1401057E701MA
...
41
BELT GUIDE, Long BS-1401105MA
...
42
PIN, 3/32 X 1.6 BS-703300
...
43
GUIDE, Belt - Short BS-1401104MA
...
45
BRACKET, LIFT PIVOT BS-1401032E701MA
...
46
ROD, Shift Link BS-1401307ZMA
...
47
GRIP BS-1753233YP
...
48
NUT, Adjusting BS-1401148ZMA
...
49
LEVER, Shift BS-1401356MA
...
50
BRACKET, Pivot BS-1401340ZMA
...
51
SPRING, Variator Drive BS-165X147MA
...
52
ARM, Idler (Use on models after Serial Number 2013481797) BS-1741785ZYP
...
52
ARM, Idler (Use on models after Serial Number 2013481797) BS-885372ZYP
...
53
WASHER BS-017X91MA
...
54
NUT, HEX FLNG,5/16-18 BS-704067
...
55
SCREW, Hex BS-0025X3MA
...
56
BRACKET, Brake Spring Extension (Use on models after Serial Number 2013481797) BS-1742528ZYP
...
56
BRACKET, Brake Spring Extension (Use on models after Serial Number 2013481797) BS-885373ZYP
...
58
PLATE, Reinforcement BS-1401260E701MA
...
61
ARM, Rear BS-1401031E701MA
...
62
PIN, 3/8-16 BS-704054
...
63
BOLT, 5/16-18 BS-5025011X24SM
...
64
BRACKET, Left Rear Hanger BS-1401301E701MA
...
65
BRACKET, Right Rear Hanger BS-1401302E701MA
...
67
BOLT, Hex, 7/16-20 x1-1/2 BS-01X140MA
...
68
LOCKWASHER BS-019X35MA
...
69
WASHER.46.97.25 FLAT BS-17X170MA
...
70
PULLEY, Stack BS-1401308MA
...
71
BELT, Drive, 4L BS-1742461YP
...
72
HEAT SHIELD BS-1401396MA
...
75
BOLT BS-703159
...
76
SCREW.25-20 S-T BS-26X263MA
...
77
SCREW, 5/16-18 BS-06X103MA
...
78
NUT, CNTR LCK, 3/8-16 BS-703893
...
79
PULLEY, Idler BS-1401309MA
...
86
KEY, Square BS-056534MA
...
87
SPACER, Rear Wheel BS-1401103MA
...
88
WASHER BS-17X160MA
...
89
WHEEL & TIRE ASSEMBLY BS-1401120MA
...
--
TUBE (Only) BS-1664090SM
...
--
TIRE (Only) BS-1720337SM
...
90
RING, E .750D .050T BS-0011X3MA
...
91
WASHER BS-17X195MA
...
92
HUB CAP BS-094618MA
...
93
WASHER BS-17X174ZMA
...
94
BOLT, Hex, 3/8-24 x 2-3/8 BS-01X143MA
...
95
SCREW, 5/16-18 x 7/8 BS-26X267MA
...
96
WASHER, FLAT- DELRIN BS-17X217MA
...
...
...
...
...
