7800505 Briggs and Stratton - 309007x66A, 10.5HP w/30" Mower Deck, CE (2009-10)

Model: 7800505

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

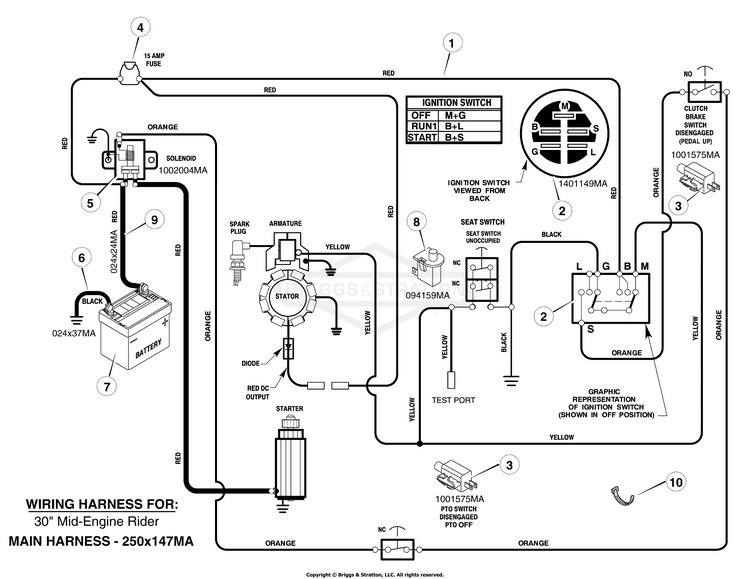

Electrical System

...
...
1
HARNESS, Chassis Wire BS-250X147MA
...
2
SWITCH, Ignition BS-1401149MA
...
--
KEY, Ignition BS-327349MA
...
3
SWITCH, Limit BS-1001575MA
...
4
FUSE BS-054212MA
...
--
HOLDER, Fuse BS-407078MA
...
5
SOLENOID BS-7701100MA
...
--
SCREW, Mounting BS-26X229MA
...
--
NUT, 1/4-20, NYLOCK BS-703232
...
6
CABLE, GROUND SM RID BS-24X37MA
...
--
BOLT, 1/4-20X0.625 BS-703841
...
--
WINGNUT BS-014X79MA
...
8
SWITCH, SEAT BS-7023354YP
...
9
CABLE, Red Battery BS-024X24MA
...
--
BOOT, POSITIVE TERMIN BS-690604MA
...
10
STRAP, Tie BS-032618MA
...
...
...
...
...
