2691079-01 Briggs and Stratton - RZT26520, 26HP 52" Briggs and Stratton Zero Turn Rider (2012)

Model: 2691079-01

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

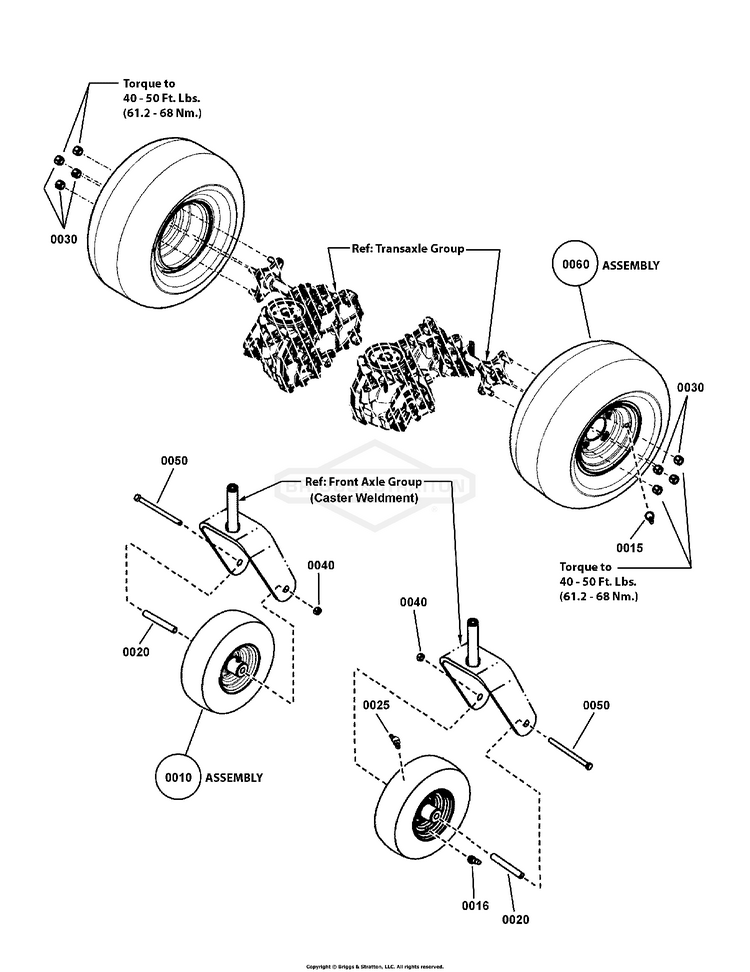

Wheel & Tire Group (W7501567)

...
...
0060
ASSEMBLY, Rear Wheel, 18 x 9.50-8, K500, PMS 877 BS-7103403YP
...
0015
AIR VALVE STEM, Snap-In BS-7012234SM
...
0030
LUG NUT, 1/2 - 20 Tapered Seat, YZ BS-7027192SM
...
0010
WHEEL & TIRE ASSY BS-1734013SM
...
0016
VALVE STM&CP,TR41 SE BS-024373MA
...
0020
SPACER - CASTER BS-1734841SM
...
0025
GREASE FITTING, (8M x 1 threads, 45 degree) BS-7104428YP
...
0050
HHCS, 7/16C X6 GR5 YZ BS-7091772SM
...
0040
NUT, 7/16-14 Hex Center Lock, GR 5 or B BS-7090839SM
...
...
...
...
...
