2691079-01 Briggs and Stratton - RZT26520, 26HP 52" Briggs and Stratton Zero Turn Rider (2012)

Model: 2691079-01

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

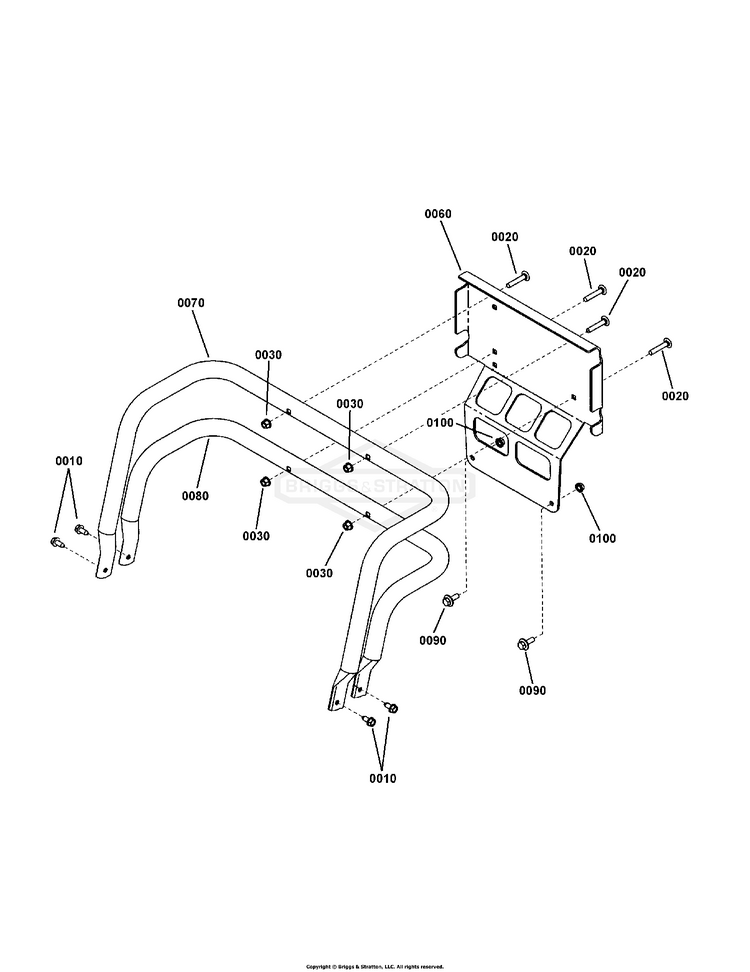

Rear Bumper Assembly (7501811)

...
...
0010
SCREW, 5/16-18 X .75 BS-703228
...
0020
BOLT,RD SH SQ BS-703175
...
0030
NUT BS-703115
...
0060
PLATE, Brand BS-1753572BIYP
...
0070
TUBE, Bumper, Upper, 285Z BS-7301123BMYP
...
0080
TUBE, Bumper, Lower, 285Z BS-7301124BMYP
...
0090
BOLT, Shoulder BS-1716654SM
...
0100
NUT, Hex Flange Whiz-Lock, 5/16-18 BS-703330
...
...
...
...
...
