2691079-01 Briggs and Stratton - RZT26520, 26HP 52" Briggs and Stratton Zero Turn Rider (2012)

Model: 2691079-01

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

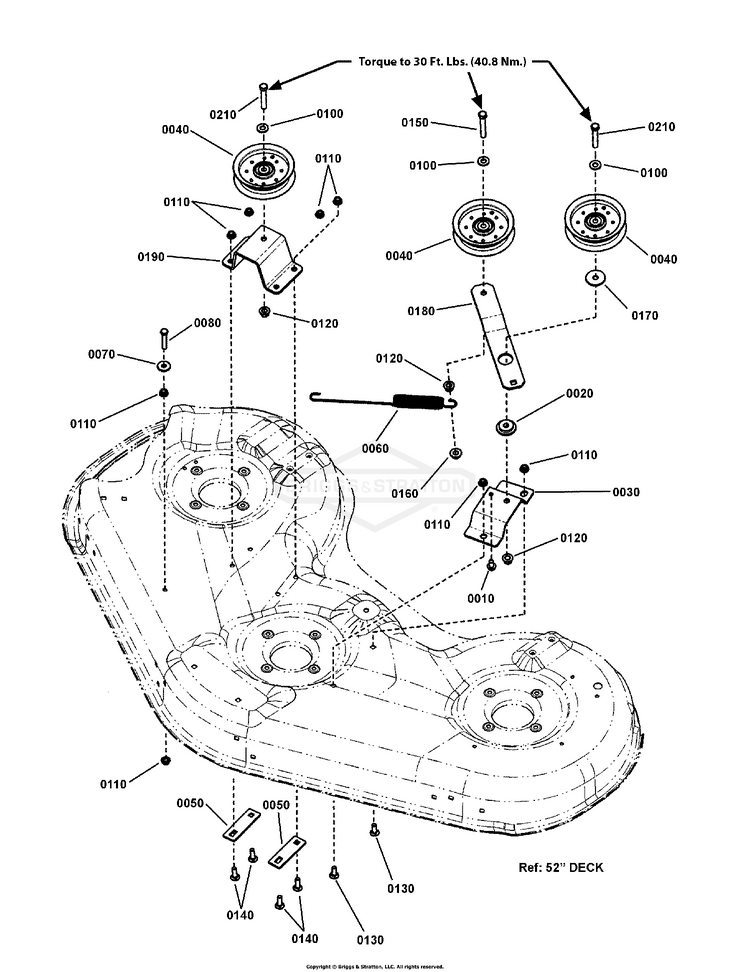

52" Mower Deck - Idler Group (7501581)

...
...
0010
SCREW, 5/16-18 X .75 BS-703228
...
0020
SPACER, .406 ID x 1.50 OD x .350 Thick, PM BS-1714255SM
...
0030
BRACKET, Idler Mount Front 46/52, Black BS-1736437BMYP
...
0040
PULLEY, Idler BS-1736540YP
...
0050
PLATE, Idler Bracket 46/52 Mowers BS-1737229BMYP
...
0060
SPRING, Extension BS-1737415YP
...
0070
WASHER, 5/16 BS-703298
...
0080
BOLT, 5/16-18 X 1-3/4 BS-5025011X14SM
...
0100
WASHER, FLAT BS-703878
...
0110
NUT, Hex Flange Whiz-Lock, 5/16-18 BS-703330
...
0120
NUT, 3/8-16 BS-703333
...
0130
BOLT, 5/16-18X.875 BS-704065
...
0140
BOLT, CRRG, 5/16-18X1 BS-703800
...
0150
SCREW, 3/8-16 x 2-1/2" Hex Head Cap GR 5 Black BS-1933685SM
...
0160
NUT, CNTR LCK, 3/8-16 BS-703893
...
0170
WASHER, .406X1.5X.12 BS-703591
...
0180
ARM, Idler, 46/52 RZT BS-7301100BMYP
...
0190
BRACKET, Idler, Rear, 46/52 RZT BS-7301102BMYP
...
0210
SCREW BS-703872
...
...
...
...
...
