2691079-01 Briggs and Stratton - RZT26520, 26HP 52" Briggs and Stratton Zero Turn Rider (2012)

Model: 2691079-01

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

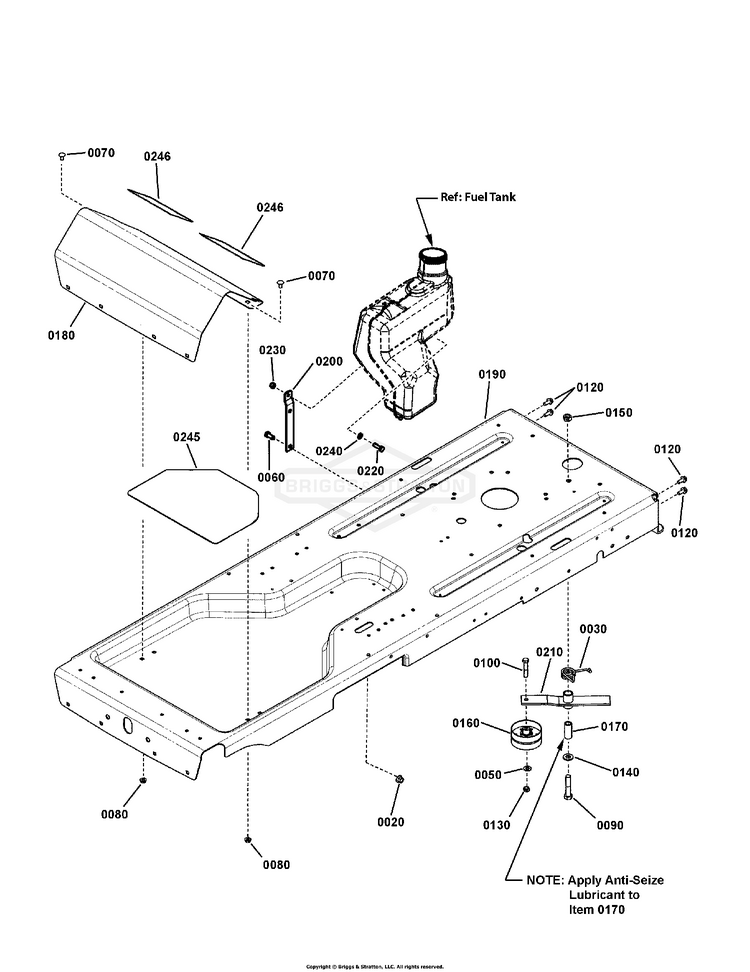

Frame Assembly, RZT (7501700)

...
...
0020
NUT, 3/8-16 BS-703333
...
0030
SPRING, Torsion, RH Wind BS-7044760SM
...
0050
WASHER, FLAT .406X.81 BS-71072MA
...
0060
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
0070
BOLT, 5/16-18X.625 G5 BS-703447
...
0080
NUT, 5/16-18, GR5 BS-703409
...
0090
BOLT, 1/2-13 X 2-1/2 BS-5025017X20SM
...
0100
CAPSCREW, 3/8-16X2 BS-703589
...
0120
SCREW, 5/16-18 X .75 BS-703228
...
0130
NUT, 3/8-16 BS-703347
...
0140
WASHER,.531X1.06X.094 BS-704123
...
0150
NUT, CNTR LCK, 1/2-13 BS-703894
...
0160
IDLER, 3.25" OD x .391 ID x 1.63, Backside BS-7100103SM
...
0170
SPACER, Hydro Idler BS-7200034SM
...
0180
FOOTREST BS-7300140BIYP
...
0190
FRAME, RZT BS-7301073BIYP
...
0200
BRACKET, Support, Fuel Tank BS-7301110BMYP
...
0210
WELDMENT, Hydro Idler MY08 BS-7400208BMYP
...
0220
BOLT BS-5025011X8FS
...
0230
NUT, HEX, 5/16-18 BS-703902
...
0240
WASHER, FLAT 5/16 BS-704015
...
0245
MAT, Floor Pan, RZT BS-7103830YP
...
0246
PAD, Foot BS-7104571YP
...
...
...
...
...
