2691079-01 Briggs and Stratton - RZT26520, 26HP 52" Briggs and Stratton Zero Turn Rider (2012)

Model: 2691079-01

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

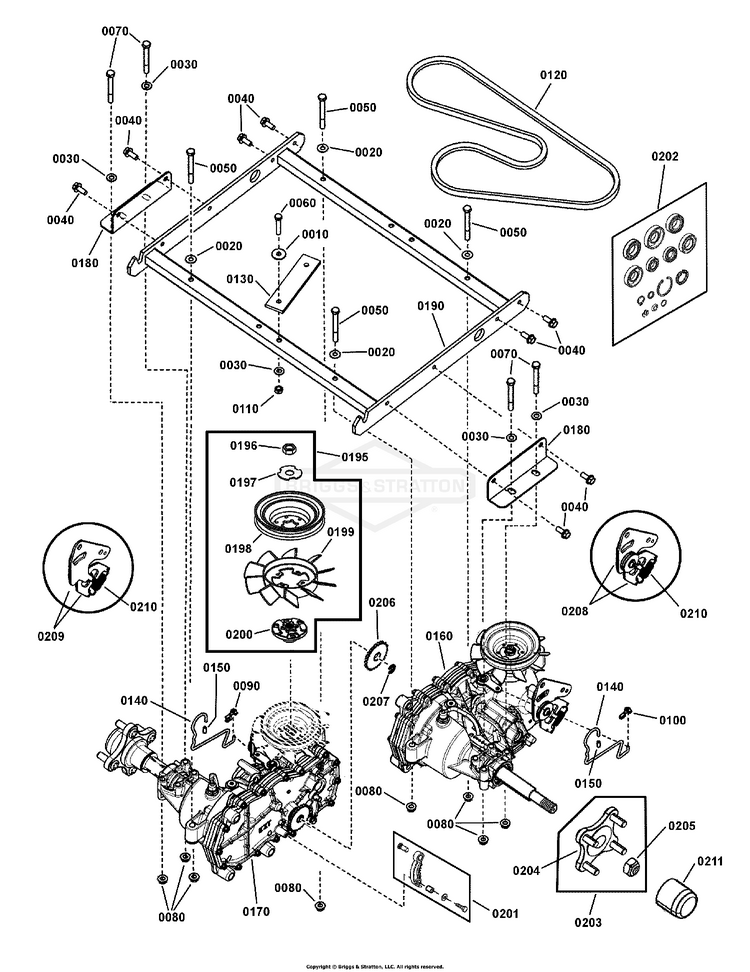

Transaxle Group, RZT (7502214dev)

...
...
0010
FENDER WASHER, 5/16" BS-7011763SM
...
0020
SHIM WASHER, 5/16 I.D. BS-7015686SM
...
0030
WASHER BS-703350
...
0040
SCREW, 5/16-18 X .75 BS-703228
...
0050
BOLT, 5/16-18 BS-5025011X24SM
...
0060
BOLT, 5/16-18 X 1-3/4 BS-5025011X14SM
...
0070
CAPSCREW,5/16-18X2.75 BS-703869
...
0080
NUT, HEX FLNG,5/16-18 BS-704067
...
0090
CLIP, Rod End Clevis RH for .188 Dia. Rod BS-1717024SM
...
0100
CLIP, Rod End Clevis LH for .188 Dia. Rod BS-1725550SM
...
0110
NUT BS-703164
...
0120
V-BELT, Hydro Drive (HA Wrapped Section; 58" Effective Length) BS-7100102SM
...
0130
RUBBER, Anti-Rotation BS-7104674YP
...
0140
ROD, Roll Release BS-7103512YP
...
0150
CAP, Vinyl BS-7103537YP
...
0180
BRACKET, TRANSAXLE BS-7300000BMYP
...
0190
WELDMENT, Transaxle Support BS-7400288BMYP
...
0195
KIT, Fan & Pulley, EZT (Incl Ref. 0196 through 0200) BS-7600157YP
...
0201
ASSEMBLY, Parking Brake Arm, Transmission BS-1728075SM
...
0202
KIT, Hydro Seal BS-1728060SM
...
0203
KIT, Hub Replacement (Incl. Ref. 0204 & 0205) BS-7600158YP
...
0206
GEAR, Parking Brake, Transmission BS-1728076SM
...
0207
CLIP, E Transmission Parking Break BS-1716622SM
...
0208
ARM, Control Kit, LH BS-1735490SM
...
0209
ARM, Control Kit, RH BS-1735491SM
...
0210
SPRING, Extension BS-1735482SM
...
...
...
...
...
