2691079-01 Briggs and Stratton - RZT26520, 26HP 52" Briggs and Stratton Zero Turn Rider (2012)

Model: 2691079-01

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

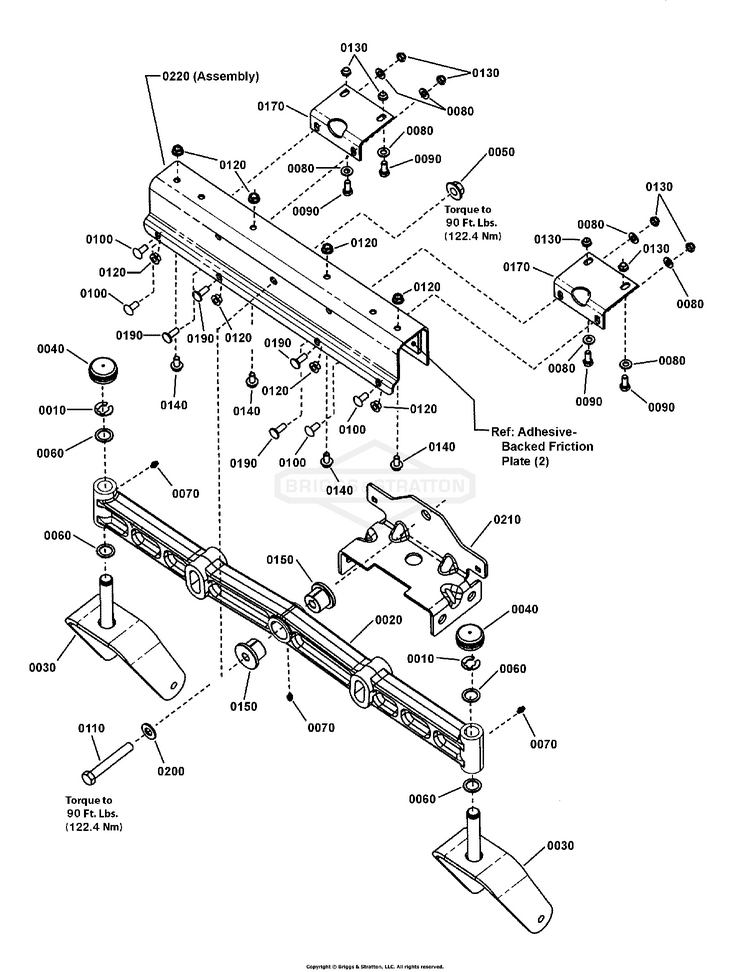

Front Axle Group, 150Z/RZT (7501589)

...
...
0010
RING, Klipring External for .750 Dia. Shaft Bln BS-1611710SM
...
0020
AXLE, Casting BS-1733426SM
...
0030
WELDMENT, Caster Yoke & Spindle, Sears- Black BS-1733448BMYP
...
0040
HUB CAP, 1.481 I.D x .62 Long Red Poly BS-1734135SM
...
0050
NUT-HEX FLANGE 1/2-1 BS-1930644SM
...
0060
WASHER, 0.750 ID x 1.60 OD x .05 Thick, Black BS-1960160SM
...
0070
LUBE FITTING, 3/16" Press Fit BS-7013864SM
...
0080
WASHER BS-703350
...
0090
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
0100
BOLT, Round Head, Short Square Neck BS-703185
...
0110
BOLT, 1/2-13 X 3-1/2" BS-5025017X28SM
...
0120
NUT, 5/16-18, GR5 BS-703409
...
0130
NUT, 5/16-18 Hex Top Lock, GR B BS-7091706SM
...
0140
BOLT, 5/16-18X0.625 BS-703823
...
0150
BUSHING, Axle Pivot BS-7103454YP
...
0170
BRACKET, AXLE SUPPORT BS-7300004BMYP
...
0190
BOLT, 5/16-18X.875 BS-704065
...
0200
WASHER,.531X1.06X.094 BS-704123
...
0210
BRACKET, Hanger, Front (46/52) BS-7301096BMYP
...
0220-10
PLATE, Friction, Adhesive Backed BS-7103773YP
...
0220-30
BRACKET, Axle BS-7301076BMYP
...
...
...
...
...
