2691079-01 Briggs and Stratton - RZT26520, 26HP 52" Briggs and Stratton Zero Turn Rider (2012)

Model: 2691079-01

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

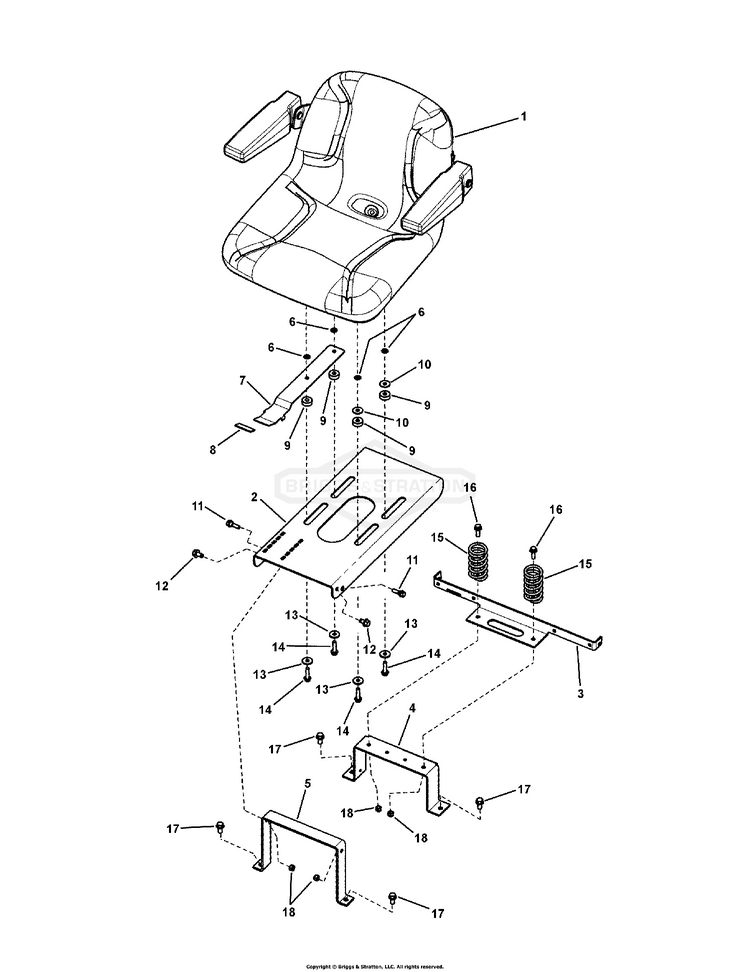

Seat Group, Sliding (7501578)

...
...
1
SEAT, 15" Back, with Armrests (Was 7100005) BS-1754218YP
...
2
PLATE, Seat, Adjustable BS-7301095BMYP
...
3
BRACKET, Support, Seat & Fender BS-7301107BMYP
...
4
SEAT SUPPORT BRACKET BS-7043316BMYP
...
5
BRACKET, Seat BS-7301070BMYP
...
6
RETAINER, GR5, 5/16 (Was 7011791 or 80002734) BS-703297
...
7
LATCH, Seat BS-7103673BMYP
...
8
COVER, Lever, Seat Adjustment BS-885215YP
...
9
SPACER, Seat, Adjustable BS-7103920YP
...
10
WASHER, Fender, 5/16 BS-7011763SM
...
11
SHOULDER BOLT, 5/16-18, YZ BS-7015761
...
12
SCREW, Hex Washer Head, Self Tap, 3/8-16 x 5/8 BS-7091198SM
...
13
WASHER, 5/16 (Was 1919381 or 80003525) BS-703298
...
15
SPRING, Compression, 3-5/8" BS-7103425YP
...
16
BOLT,5/16-18X1 BS-703410
...
17
SCREW, 3/8-16 x 3/4" Hex Washer Self-Tap BS-7090815
...
18
NUT (Was 7091575 or 80003675) BS-703164
...
--
KNOB, Adjuster, Arm Rest (Not Shown) BS-1761409YP
...
...
...
...
...
