2691079-01 Briggs and Stratton - RZT26520, 26HP 52" Briggs and Stratton Zero Turn Rider (2012)

Model: 2691079-01

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

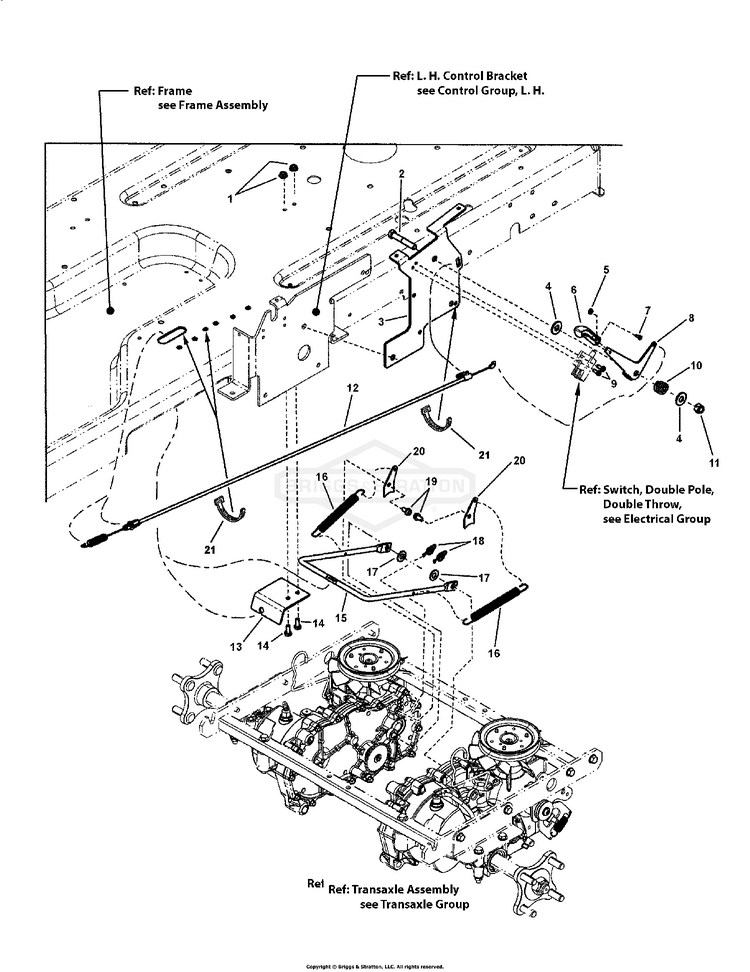

Park Brake Group (7501572)

...
...
1
NUT, 1/4-20, GR5 BS-703233
...
2
SCREW BS-703872
...
3
BRACKET, Lever, Park Brake BS-7301075BMYP
...
4
FW, .438X1X.084 YZ BS-7090517SM
...
5
NUT, Hex #8-32 BS-703460
...
6
LEVER, Throttle Control BS-7023655YP
...
7
SCREW, FIL.HEAD BS-7091017YP
...
8
LEVER, BRAKE, PARK BS-7301074YP
...
9
SCREW,HEX, #10-24X.5 BS-704060
...
10
SPRING BS-7028036YP
...
11
NUT BS-703117
...
12
CABLE, Park Brake, RZT BS-7103792YP
...
13
BRACKET, Cable, Park Brake BS-7301086BMYP
...
14
BOLT, Hex, 1/4-20 x 5/8 BS-001X38MA
...
15
ROD, Park Brake, RZT BS-7103436YP
...
16
SPRING BS-703144
...
17
WASHER, FLAT .406X.81 BS-71072MA
...
18
COTTER PIN, 1/2 SELF, BS-7091594SM
...
19
SCREW, HEX, 1/4-20X.5 BS-704130
...
20
TAB, Spring, Park Brake BS-7301092AYP
...
21
TIE, SELF LOCKING BS-703586
...
...
...
...
...
