2691041-01 Briggs and Stratton - EZT2042, 20HP w/42" Mower Deck, CE (2012)

Model: 2691041-01

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

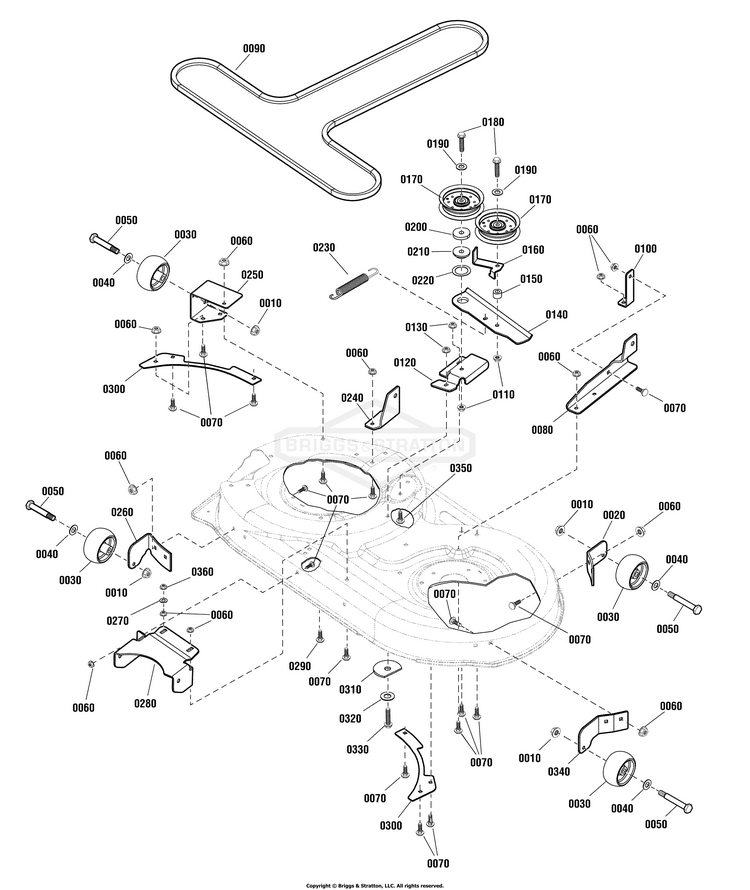

42" Mower Deck - Clutch & Support Group

...
...
0010
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
0020
SUPPORT, Gage Wheel, LH BS-1731403BMYP
...
0030
GAUGE WHEEL BS-1714760SM
...
0040
WASHER, 0.516IDX1OD BS-703853
...
0050
BOLT-WHEEL 3/8-16X2.7 BS-2108765SM
...
0060
NUT, 5/16-18, GR5 BS-703409
...
0070
BOLT, Round Head, Short Square Neck BS-703185
...
0080
BRACKET, Support, Deck, Rear LH (Use before serial Nos. 2016328880) BS-7301165BZYP
...
0080
BRACKET, Support, Deck, Rear LH (Use after serial Nos. 2016328880) BS-1753881BMYP
...
0090
V-BELT, Arbor Drive, .44" A-Wedge Deep-Groove BS-1732956SM
...
0100
SUPPORT, BRACE BS-1733577BMYP
...
0110
NUT, 3/8-16 BS-703333
...
0120
BRACKET, Idler, 42" Deck BS-7300569BMYP
...
0130
NUT, Hex Flange Whiz-Lock, 5/16-18 BS-703330
...
0140
ARM, IDLER BS-1734243BMYP
...
0150
SPACER, .750 OD x.390 ID x .50 Long BS-7016719YP
...
0160
BELT GUIDE, Idler, 42" deck BS-7301201BZYP
...
0170
PULLEY, Idler BS-1736540YP
...
0180
SCREW BS-703872
...
0190
WASHER, FLAT .406X.81 BS-71072MA
...
0200
WASHER, 3/8" Flat (0.41 ID x 1.50 OD x .25 Thick) Black BS-1960534SM
...
0210
SPACER, .406 ID x 1.50 OD x .350 Thick, PM BS-1714255SM
...
0220
WASHER, Thrust BS-7031079YP
...
0230
SPRING-EXTN 1.03 ODX BS-1733844SM
...
0240
BRACKET, Support, Deck, Rear, RH (Use before serial Nos. 2016328880) BS-7301172BZYP
...
0240
BRACKET, Support, Deck, Rear, RH (Use after serial Nos. 2016328880) BS-1753882BMYP
...
0250
BRKT, WHL GAUGE, RH BS-7301171BMYP
...
0260
SUPPORT, Gage Wheel, RH BS-1731402BMYP
...
0270
WASHER, 5/16 BS-703298
...
0280
BRACKET, Hanger, Front, 42" BS-7301170BMYP
...
0290
BOLT,RD SH SQ BS-703175
...
0300
PLATE, Rear BS-092426E701MA
...
0310
WASHER, Flat, Special, .531 x 2.5 x .135, YZ BS-7091775SM
...
0320
WASHER, FLAT BS-703878
...
0330
BOLT,5/16-18X1 BS-703410
...
0340
BRACKET, Gage Wheel, Front, LH BS-1732258BMYP
...
0350
BOLT, 5/16-18X.875 BS-704065
...
0360
SCREW,HEX, #10-32X.25 BS-704061
...
...
...
...
...
