2691041-00 Briggs and Stratton - EZT2042, 20HP w/42" Mower Deck, CE (2012)

Model: 2691041-00

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

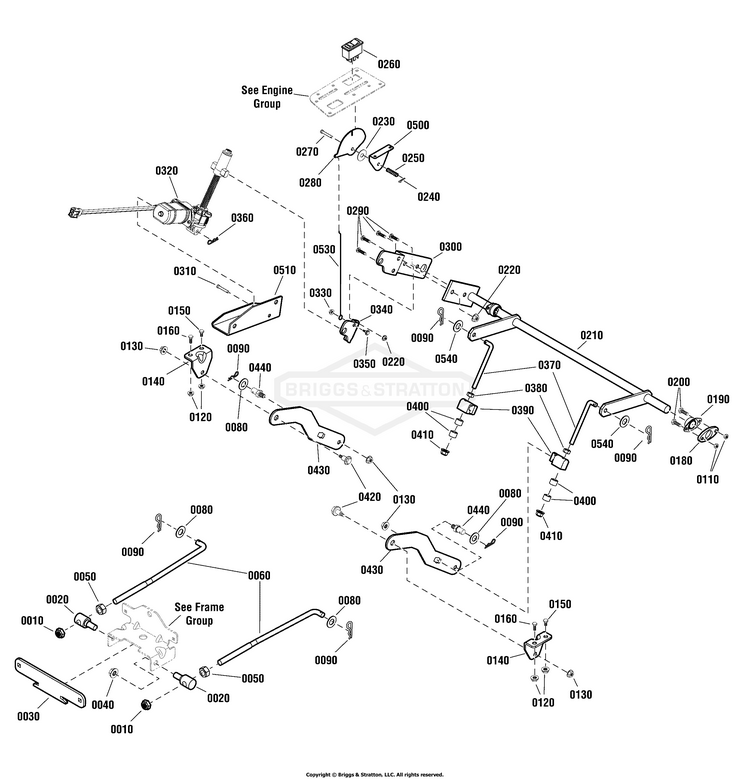

Lift Group

...
...
0010
NUT, Hex Lock, 1/2-13 BS-1960379SM
...
0020
TRUNNION, Unthreaded BS-1737417YP
...
0030
SUPPORT, Hanger (46/52) BS-7301097BMYP
...
0040
NUT-HEX FLANGE 1/2-1 BS-1930644SM
...
0050
NUT, Hex Jam, 1/2-13 BS-1913744SM
...
0060
ROD, Front Bail (1/2-13 thread) 46, 52" MWR BS-1736081YP
...
0080
WASHER, 0.516IDX1OD BS-703853
...
0090
PIN, 3/32 X 1.6 BS-703300
...
0110
NUT, 1/4-20 BS-703251
...
0120
NUT, 5/16-18, GR5 BS-703409
...
0130
NUT, CNTR LCK, 3/8-16 BS-703893
...
0140
BRACKET, Deck Hanger BS-7300028BMYP
...
0150
BOLT, 5/16-18X0.625 BS-703823
...
0160
CAPSCREW, Hex Head, 5/16-18 x 1 1/4 BS-703570
...
0180
SPACER, Bearing, .25" BS-7301125BMYP
...
0190
BEARING, Flange, .75 ID PM BS-7026196SM
...
0200
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
0210
LIFT, DECK (Use after serial Nos. 2016328880) BS-1757866BMYP
...
0210
LIFT, DECK (Use before serial Nos. 2016328880) BS-1757866BMYP
...
0220
NUT, 3/8-16 BS-703333
...
0230
WASHER, 5/16" Nylon BS-7023649YP
...
0240
PIN, COTTER .06X .50 BS-579493MA
...
0250
SPRING, Compression BS-164X34MA
...
0260
SWITCH, Rocker Electric Height-Of-Cut BS-1734141SM
...
0270
LF PIN, CLEVIS .25DX BS-578309MA
...
0280
LEVER, Indicator, Height-Of-Cut BS-7301119BCYP
...
0290
BOLT, 3/8-16 X 1" GD5 BS-5025013X8SM
...
0300
BRACKET, Lift, Deck, Primary BS-7301104BMYP
...
0310
PIN, SHEAR BS-703063
...
0320
MOTOR, Actuator, Lift, Deck BS-7103818YP
...
0330
NUT, 1/4-20, GR5 BS-703233
...
0340
BRACKET, Lift, Deck, Secondary BS-7301105BMYP
...
0350
SHOULDER BOLT, 1/4-20 x 3/8" BS-009X54MA
...
0360
PIN, 13X1.19 BS-703430
...
0370
ROD, Mower Lift (3/8-16 thread) Yellow BS-1734217SM
...
0380
NUT, HEX, 3/8-16 BS-703577
...
0390
TRUNNION, Powdered Metal, Yellow, Regent BS-1731894SM
...
0400
SPACER, .385 ID x .6697 OD x .455 Long, PM YEL BS-1666294SM
...
0410
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
0420
SHOULDER BOLT, 3/8-16 x .94, BZ BS-1732129SM
...
0430
BAR, Rear Lift BS-7301098BMYP
...
0440
PIN, 3/8-16 BS-704054
...
0500
BRACKET, Indicator, Height-Of-Cut BS-7301120BMYP
...
0510
BRACKET, Motor Mount BS-7301103BMYP
...
0530
ROD, Indicator, Height-Of-Cut BS-7103956YP
...
0540
WASHER, FLAT .406X.81 BS-71072MA
...
...
...
...
...
