2691041-00 Briggs and Stratton - EZT2042, 20HP w/42" Mower Deck, CE (2012)

Model: 2691041-00

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

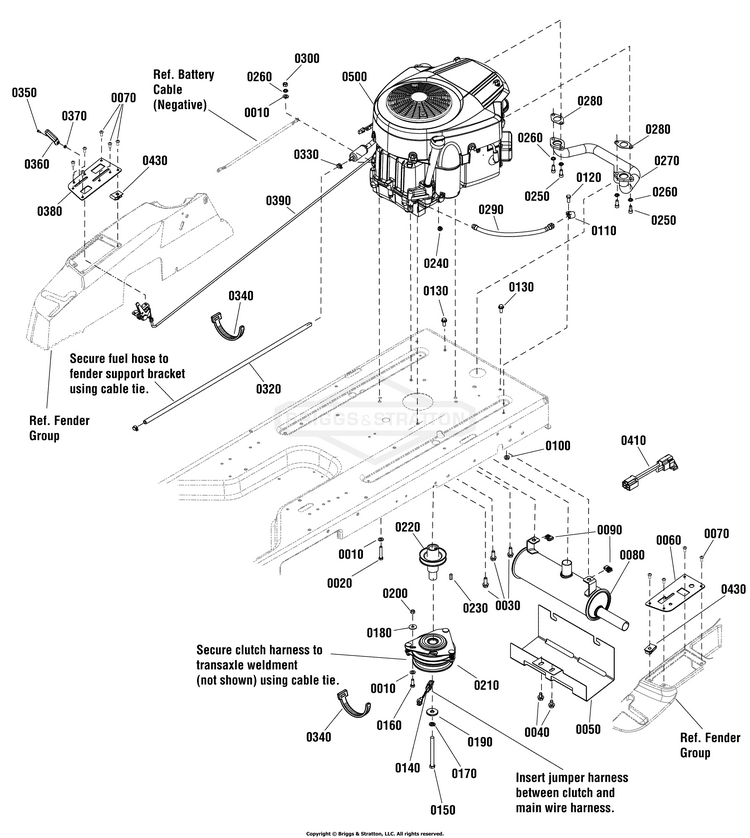

Engine Group - 20HP Briggs & Stratton

...
...
0010
WASHER, Flat, 0.34 ID x 5/8 OD BS-7090188
...
0020
BOLT, 5/16-18 X 1-3/4 BS-5025011X14SM
...
0030
SCREW, Hex Washer Head, Self Tap, 3/8-16 x 1 BS-7090324
...
0040
SCREW, Hex Washer Head, Self Tap, 3/8-16 x 5/8 BS-7091198SM
...
0050
HEAT SHIELD, Muffler BS-7301083BMYP
...
0060
PANEL, Control, LH BS-7301084BMYP
...
0070
SCREW BS-7090999FS
...
0080
MUFFLER, RZT BS-7103411YP
...
0090
NUT, SPEED, 5/16-18 L BS-1935255SM
...
0100
NUT, 5/16-18, GR5 BS-703409
...
0110
CLIP, Harness BS-7900020SM
...
0120
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
0130
SCREW, 5/16-18 BS-703354
...
0140
HARNESS, Jumper BS-1737462YP
...
0150
SCREW, 7/16-20 x 4-1/2" Hex Head Cap, GR 5 BS-7092130SM
...
0160
CAPSCREW, Hex Head, 5/16-18 x 7/8, G5 BS-7091904
...
0170
LCKWSHR,7/16,SPLIT RE BS-704007
...
0180
WASHER, Fender, 5/16 BS-7011763SM
...
0190
WASHER BS-704053
...
0200
NUT BS-703164
...
0210
KIT, ELECTRIC CLUTCH BS-1687746YP
...
0220
ASSEMBLY, Engine Pulley BS-7043343SM
...
0230
KEY, 1/4" Square x 3/4" BS-7016755YP
...
0240
NUT, 1/4-20, GR5 BS-703233
...
0250
SET SCREW, 5/16-18 x 3/4" Socket Head, GR8 BS-7091738SM
...
0260
WASHER, 5/16" LOCK BS-5025170SM
...
0270
MANIFOLD, B&S V-Twin BS-7103414YP
...
0280
GASKET, Exhaust BS-690970
...
0290
HOSE-OIL DRAIN .375ID BS-1726498SM
...
0300
HN, 5/16C GR5 YZ BS-7091511SM
...
0320
HOSE, Fuel BS-7200140YP
...
0330
CLAMP, Hose BS-791850
...
0340
TIE, SELF LOCKING BS-703586
...
0350
SCREW, FIL.HEAD BS-7091017YP
...
0360
KNOB, Throttle BS-7103888YP
...
0370
NUT, Hex #8-32 BS-703460
...
0380
PANEL, Control, RH BS-7301093BMYP
...
0390
ASSEMBLY, Throttle, Choke-A-Matic, B&S V-Twin BS-7103771YP
...
0410
PLUG, Shut-Off BS-1734025SM
...
0430
NUT BS-705876
...
0500
* ENGINE, 20HP Briggs & Stratton, Intek (Engine Model: 406777-0172-B1) BS-406777-0172-B1
...
0500
* ENGINE, 20HP Briggs & Stratton, Intek (Engine Model: 406777-0173-B1) BS-406777-0173-B1
...
...
...
...
...
