2690641 Briggs and Stratton - 107.277900, ZTS 7500, 24HP w/50" Mower Deck (2007)

Model: 2690641

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

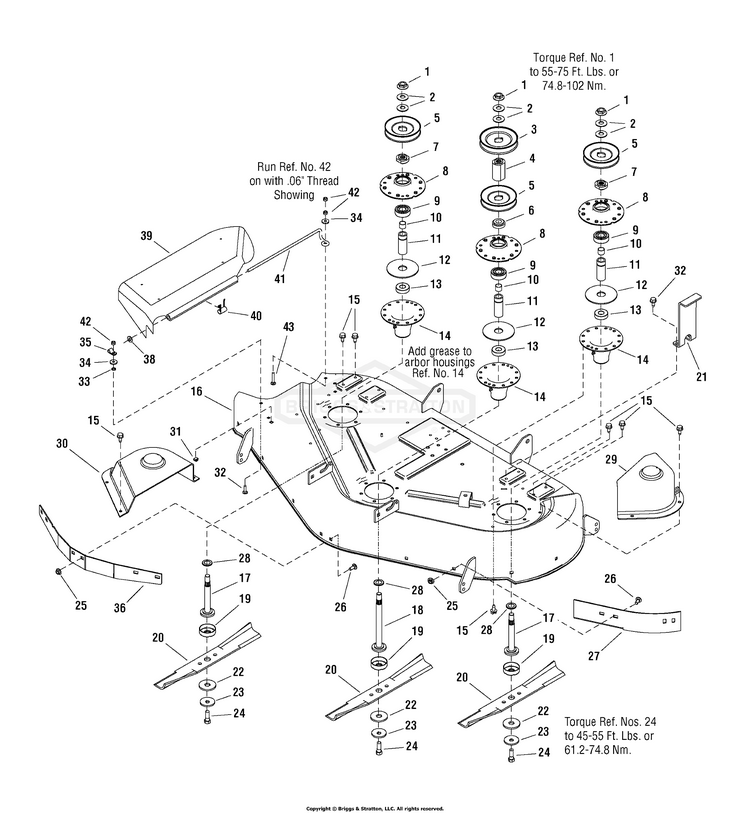

44" & 50" Mower Deck - Housing & Arbor Group

...
...
1
NUT, Hex Flange, 9/16-18 BS-1714419SM
...
2
WASHER, Bellville .56ID x 1.34 OD x .05T BS-1713675SM
...
3
PULLEY-04.60 OD 1.000 BS-1732951SM
...
4
HUB, Spacer BS-1713158SM
...
5
PULLEY, .49" Shallow-Groove OD 4.25" BS-1713098SM
...
6
HUB BS-1713533SM
...
7
HUB BS-1713197SM
...
8
HOUSING-ARBOR TOP - B BS-1655729ASM
...
9
BEARING, BALL BS-2108202SM
...
10
SPACER, Bearing Sleeve BS-1715724SM
...
11
SPACER, Powdered Metal BS-1732544SM
...
12
GASKET, Foam BS-1707335SM
...
13
BEARING, BALL 11/16X1 BS-1705897SM
...
14
HOUSING, Arbor Bottom with Lube Fitting BS-1713338ASM
...
15
SCREW, 5/16-18 X .75 BS-703228
...
16
HOUSING ASSEMBLY, 44" Deck BS-1733346ZSM
...
16
KIT MOWER DECK 50 BS-1687768YP
...
17
SHAFT, Arbor Short BS-1713195SM
...
18
SHAFT, Arbor Long BS-1713612SM
...
19
SHIELD, Grass BS-1713196SM
...
20
BLADE, 44" MULCH BS-1716696ASM
...
20
BLADE BS-1726453YP
...
21
UPSTOP BS-1733308ASM
...
22
WASHER, Hex, 11/16 x 2 BS-1713089SM
...
23
WASHER, SPRING 0.475I BS-1656916SM
...
24
HHCS, 7/16-14X1.25 BS-703579
...
25
NUT, Hex Flange Whiz-Lock, 5/16-18 BS-703330
...
26
BOLT, Round Head, Short Square Neck BS-703185
...
27
BAFFLE, Blowout, Short BS-1724538ASM
...
28
WASHER, Cup BS-1713619SM
...
29
COVER, Arbor BS-1729666SM
...
30
COVER, Arbor BS-1715673SM
...
31
PLUG, Hole BS-1705115SM
...
32
CARRIAGE BOLT, 1/4-20 x 7/8, G5 BS-1931318SM
...
33
BOLT, PUSHNUT 1/4 BS-703826
...
34
WASHER, 1/4 BS-703229
...
35
CLAMP, WIRE, .312DIA BS-1704873SM
...
36
BAFFLE, Front BS-1734181ASM
...
38
WASHER, 5/16 BS-1919326SM
...
39
DEFLECTOR, Discharge BS-1705449SM
...
40
SPRING BS-1759750YP
...
41
ROD-.283DIA 11.65LG D BS-1706709SM
...
42
NUT, 1/4-20, NYLOCK BS-703232
...
43
BOLT, 1/4-20 X 1.5 BS-704214
...
...
...
...
...
