2690641 Briggs and Stratton - 107.277900, ZTS 7500, 24HP w/50" Mower Deck (2007)

Model: 2690641

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

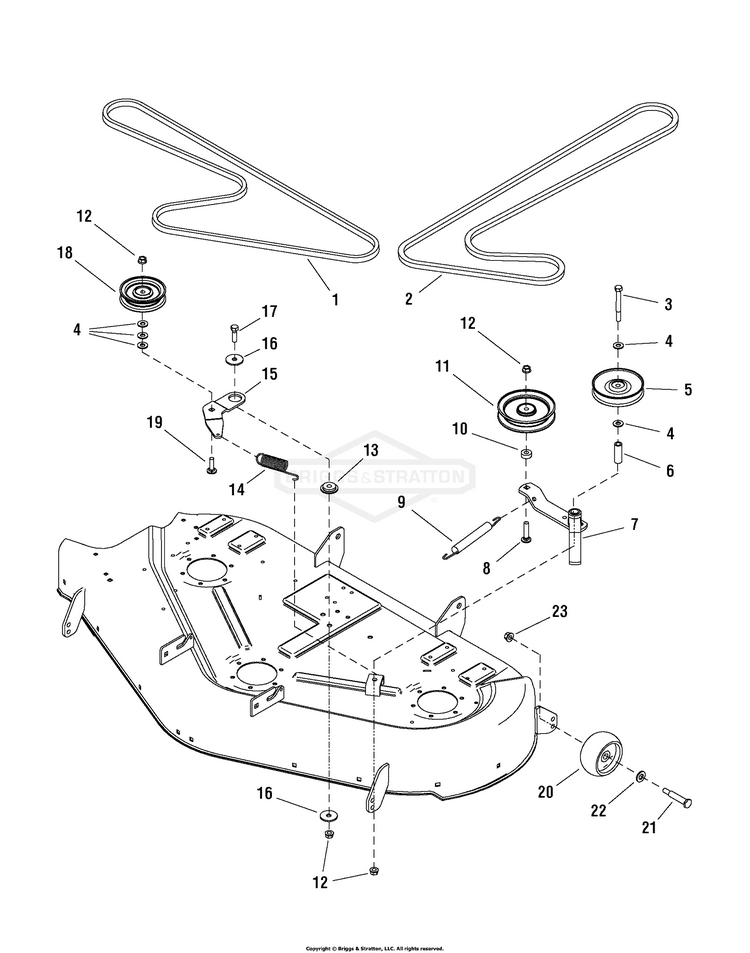

44" & 50" Mower Deck - Clutch & Support Group

...
...
1
BELT, 83.1 (Used on 44" Models) BS-1721532SM
...
1
V-BELT, Arbor Drive, 91.1 Kevlar (Used on 50" Models) BS-1732204SM
...
2
V-BELT, P.T.O. Drive, 70.1 A-Wedge (Used on 44" Models) BS-1734130SM
...
2
V-BELT, P.T.O. Drive, 73.24 A-Wedge (Used on 50" Models) BS-1734131SM
...
3
CAPSCREW,3/8-16X3.25 BS-703874
...
4
WASHER, FLAT BS-703878
...
5
PULLEY, 4-1/2 OD 3/8 ID .63 Groove BS-2101096SM
...
6
SPACER BS-1657242SM
...
7
WELDMENT, Idler Arm BS-1726815ASM
...
8
BOLT, 3/8-16X1.75 BS-703858
...
9
SPRING, Extension BS-1714062SM
...
10
SPACER BS-1667811SM
...
11
PULLEY, Idler Flat BS-2171247SM
...
12
NUT, CNTR LCK, 3/8-16 BS-703893
...
13
SPACER, Idler Powdered Metal BS-1714255SM
...
14
SPRING, Extension BS-1656936SM
...
15
ARM, Idler BS-1733465ASM
...
16
WASHER, .406X1.5X.12 BS-703591
...
17
BOLT, 3/8-16 X 1-1/4" BS-5025013X10SM
...
18
PULLEY, Idler BS-1724387SM
...
19
BOLT, 5/16-18X1.5 BS-703296
...
20
GAUGE WHEEL BS-1714760SM
...
21
BOLT-WHEEL 3/8-16X2.7 BS-2108765SM
...
22
WASHER, 0.516IDX1OD BS-703853
...
23
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
...
...
...
...
