2690641 Briggs and Stratton - 107.277900, ZTS 7500, 24HP w/50" Mower Deck (2007)

Model: 2690641

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

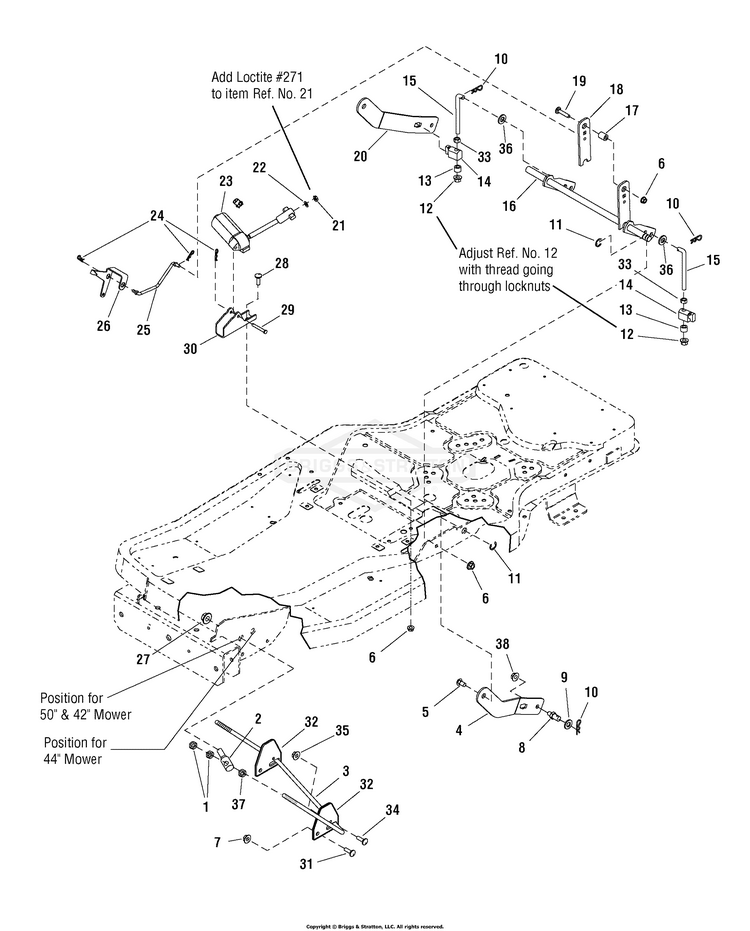

Lift Group

...
...
1
NUT, Hex Jam, 7/16-14, NC-2B BS-1922007SM
...
2
TRUNNION BS-1734042SM
...
3
ROD, Bail BS-1733381SM
...
4
ARM, Mower Lift L.H. BS-1733535ASM
...
5
BOLT, Shoulder BS-009X67MA
...
6
NUT, 5/16-18, GR5 BS-703409
...
7
NUT, 3/8-16 BS-703333
...
8
PIN, 3/8-16 BS-704054
...
9
WASHER, 0.516IDX1OD BS-703853
...
10
PIN, 3/32 X 1.6 BS-703300
...
11
RING, Klipring, 5/8" BS-1704420SM
...
12
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
13
SPACER BS-1666294SM
...
14
TRUNNION BS-1731894SM
...
15
ROD, Mower Lift 3/8-16 x 1 LG Thread BS-1734217SM
...
16
LIFT SHAFT ASSEMBLY BS-1733356ASM
...
17
SPACER, Powdered Metal BS-1673796SM
...
18
ARM, Lift Trunnion BS-1734336ASM
...
19
BOLT, 5/16-18X1.5 BS-703296
...
20
ARM, Mower Lift R.H. BS-1733536BMYP
...
21
NUT, Hex, 1/4-20 L.H. Thread BS-1960757SM
...
22
WASHER BS-703332
...
23
MOTOR, Electric BS-1761788YP
...
24
PIN, 13X1.19 BS-703430
...
25
ROD, Height of Cut Indicator BS-1733572SM
...
26
INDICATOR, Height of Cut BS-1733454SM
...
27
NUT-HEX FLANGE 1/2-1 BS-1930644SM
...
28
BOLT, CRRG, 5/16-18X1 BS-703800
...
29
PIN, SHEAR BS-703063
...
30
BRACKET, Electric Motor Mount BS-1733533BMYP
...
31
BOLT, 3/8-16X.75 G5 BS-703448
...
32
PLATE, Pivot Lock BS-1734379ASM
...
33
NUT, HEX, 3/8-16 BS-703577
...
34
BOLT,1/4-20X.75 BS-703101
...
35
NUT, 1/4-20, GR5 BS-703233
...
36
WASHER, FLAT BS-703878
...
37
NUT, Hex, 7/16 - 14 BS-1918213SM
...
38
NUT, CNTR LCK, 3/8-16 BS-703893
...
...
...
...
...
