2690514 Briggs and Stratton - 107.277680 - ZTS 7500, 19HP w/42" Mower Deck (2005)

Model: 2690514

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

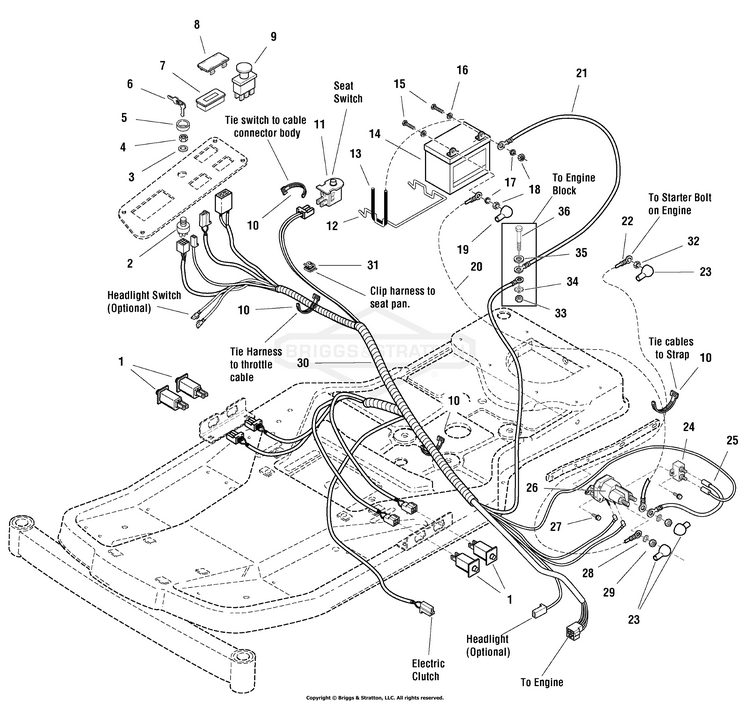

Electrical Group

...
...
1
SWITCH, DP NO/NC SNAP BS-7022886YP
...
2
IGNITION SWITCH (Includes Ref. Nos. 3, 4, 5 & 6) BS-1686734SM
...
3
LOCKWASHER-INTERNAL BS-1960547SM
...
4
SET, Washer/Nut BS-847144
...
5
CAP, Switch BS-847150
...
6
KEY-IGNITION INDAK (Set of Two Keys) BS-1717163SM
...
7
METER-HOUR DIGITAL NO BS-1731185SM
...
8
PLUG-HOLE BLACK BS-1722611SM
...
9
SWITCH-PTO PUSH BS-1722887SM
...
10
TIE, Self Locking BS-1701011SM
...
11
SWITCH, SEAT BS-7023354YP
...
12
BRACE, Battery BS-1667805SM
...
13
STRAP, Black BS-1665872SM
...
15
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
16
WASHER BS-703332
...
17
WASHER BS-5025169FS
...
18
NUT BS-703127
...
19
BOOT,INSULATOR BATTER BS-1677296SM
...
20
CABLE, Two Ring, #6 x 10 BS-1752685YP
...
21
CABLE, #6 x 15, 2 Ring Terminals (Briggs & Stratton) BS-1707056SM
...
21
CABLE, #6 x 26, 2 Ring Terminals (KOHLER) BS-1713163SM
...
22
CABLE, #6 x 15, 2 Ring Terminals BS-1727668SM
...
23
COVER, Terminal BS-1724588SM
...
24
BREAKER-CIRCUIT BS-1665238SM
...
25
WIRE, 12 GA BS-1665237SM
...
26
SOLENOID KIT BS-1686981YP
...
27
SCREW, HEX, 1/4-20X.5 BS-704130
...
28
WASHER BS-703138
...
29
NUT, 5/16-24 BS-703331
...
30
HARNESS, Wiring BS-1727801SM
...
31
CLIP- WIRE DIA .390 BS-2172434SM
...
32
NUT, HEX, 3/8-16 BS-703996
...
33
NUT, 5/16-18, GR5 BS-703409
...
34
WASHER, EXT, 3/8 BS-703864
...
35
WASHER, 5/16 BS-1919326SM
...
36
CAPSCREW, 5/16-18X1.5 (Briggs & Stratton) BS-703906
...
36
CAPSCREW,5/16-18 X 2 (KOHLER) BS-703867
...
...
...
...
...
