2690514 Briggs and Stratton - 107.277680 - ZTS 7500, 19HP w/42" Mower Deck (2005)

Model: 2690514

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

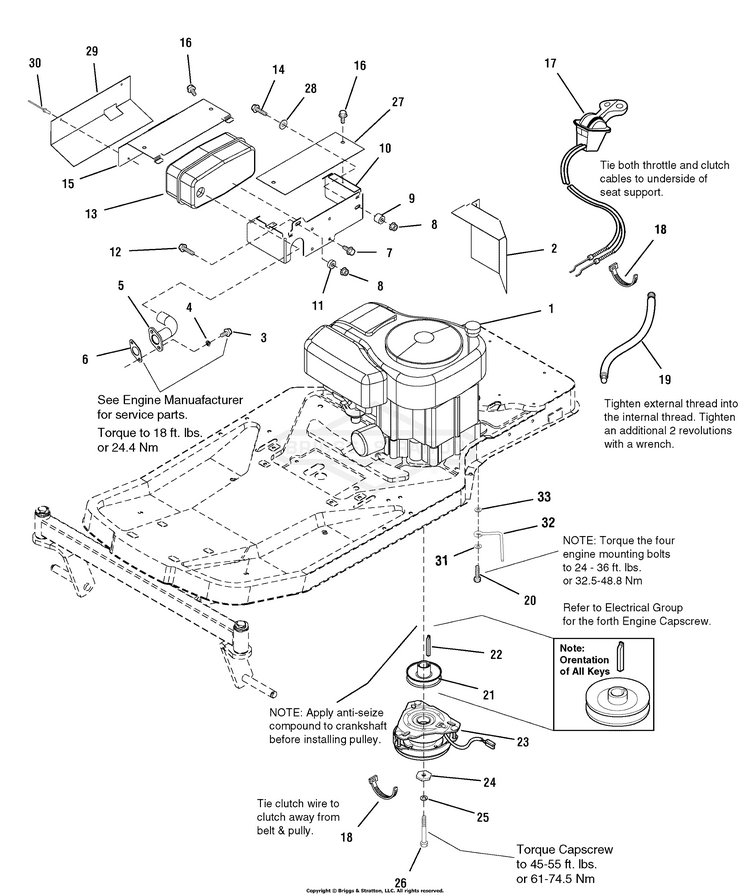

Engine Group - 19HP Briggs & Stratton

...
...
2
SHIELD, Heat Inner BS-1732257ASM
...
3
CAPSCREW, Hex Socket Head, 5/16-18 x 3/4 BS-1936228SM
...
4
WASHER, 5/16" LOCK BS-5025170SM
...
5
PIPE ASSEMBLY, Exhaust BS-1732259SM
...
6
GASKET, Exhaust BS-690970
...
7
CAPSCREW, Hex Flange, Whiz Lock, 1/4-20 x 5/8 BS-1960295SM
...
8
NUT, Hex Flange Whiz-Lock, 5/16-18 BS-703330
...
9
SPACER BS-1667812SM
...
10
BRACKET, Muffler Heat Resistent BS-1732255SM
...
11
SPACER BS-1667811SM
...
12
CAPSCREW, Hex Head, 5/16-18 x 1 1/4 BS-703570
...
13
MUFFLER ASSEMBLY, Single BS-1732273SM
...
14
CAPSCREW, 5/16-18X1.5 BS-703906
...
15
HEAT SHIELD, Outer Single BS-7300918ASM
...
16
CAPSCREW, Thread Cutting, # 10 x 1/2 BS-1960720SM
...
17
CONTROL, Throttle Double 42" Long BS-1727817SM
...
18
TIE, Self Locking, 3-5/8 LG BS-2832747SM
...
19
HOSE-OIL DRAIN .375ID BS-1726498SM
...
20
SCREW, HEX, 3/8-16 BS-704010
...
21
PULLEY, 3.74 OD x 1.003 ID x 1.88 LG BS-1727816SM
...
22
KEY, Hi-Pro, 1/4 x 2-1/2 BS-1720463SM
...
23
KIT, ELECTRIC CLUTCH BS-1687746YP
...
24
WASHER, HEX, 0.453ID BS-1708264SM
...
25
LCKWSHR,7/16,SPLIT RE BS-704007
...
26
CAPSCREW, Hex Head Cap, 7/16-20 x 2-3/4, GR5, Black BS-1960648SM
...
27
HEAT SHIELD BS-1732885ASM
...
28
WASHER, 5/16 BS-1919326SM
...
29
HEAT SHIELD BS-1733063SM
...
30
RIVET-POP.188 .429L A BS-1675044SM
...
31
WASHER, FLAT BS-703878
...
32
GUIDE, Belt, Short, 2.27" BS-1737420AYP
...
33
WASHER, .45X1.25X.25 BS-703990
...
...
...
...
...
