2690514 Briggs and Stratton - 107.277680 - ZTS 7500, 19HP w/42" Mower Deck (2005)

Model: 2690514

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

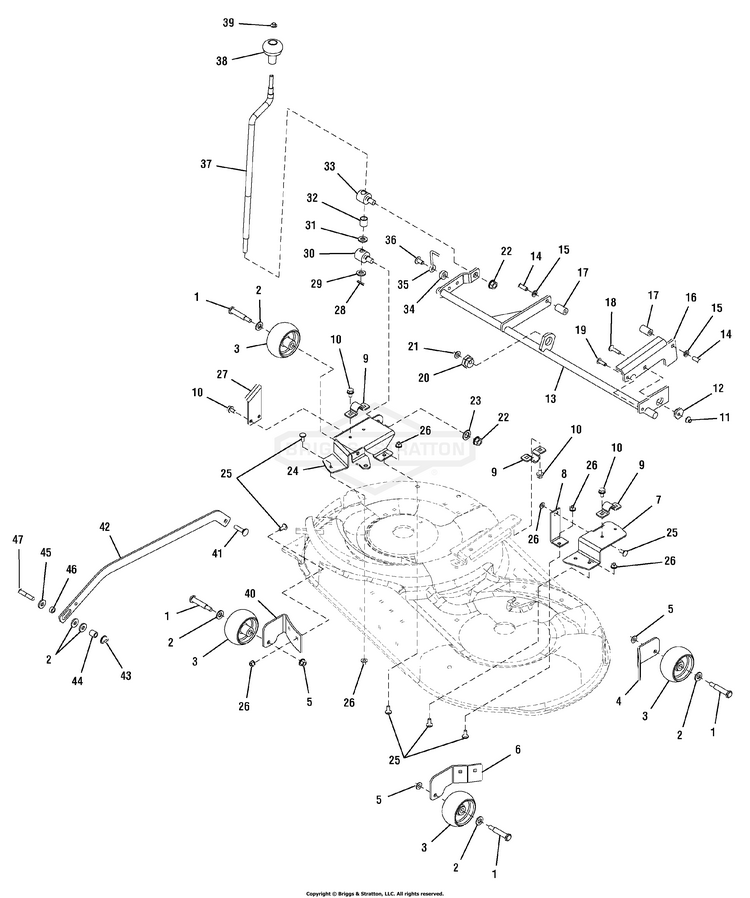

42" Mower Deck - Height Adjustment Group

...
...
1
BOLT-WHEEL 3/8-16X2.7 BS-2108765SM
...
2
WASHER, 0.516IDX1OD BS-703853
...
3
GAUGE WHEEL BS-1714760SM
...
4
SUPPORT-GAUGE WHEEL L BS-1731403ASM
...
5
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
6
BRACKET, Gage Wheel, Front, LH BS-1732258BMYP
...
7
BRACKET-REAR LH SEARS BS-1732244ZSM
...
8
BRACE, Mower 42" BS-1730201ZSM
...
9
STRAP, ROCKER SHAFT BS-1761690HYP
...
10
SCREW, 5/16-18 X .75 BS-703228
...
11
NUT, Hex Flange, 5/16-18 Collar Lock BS-2860643SM
...
12
CAM, Eccentric 1-1/8 A/F Hex BS-1714879SM
...
13
SHAFT ASSEMBLY, Rocker 42" BS-1732279ASM
...
14
BOLT, 3/8-16 X 1" GD5 BS-5025013X8SM
...
15
LOCKWASHER, SPLIT 3/8 BS-703454
...
16
ARM, Rear Adjustment BS-1718136ASM
...
17
SUPPORT, 1-1/4 Long BS-1716010SM
...
18
BOLT, 5/16-18X1.25 G5 BS-703446
...
19
SCREW, HEX, 5/16-18X1 BS-704146
...
20
NUT, Hex Adjusting, 11/16 BS-1704082SM
...
21
NUT, Hex Flange, 3/8-16 BS-2860681SM
...
22
NUT-HEX FLANGE 1/2-1 BS-1930644SM
...
23
WASHER, 5/8 BS-703580
...
24
BRACKET-REAR SUPPORT BS-1732243ASM
...
25
BOLT, Round Head, Short Square Neck BS-703185
...
26
NUT, 5/16-18, GR5 BS-703409
...
27
INDICATOR-CUT HEIGHT BS-1732348ZSM
...
28
PIN-SPRING .188 X 1.0 BS-2816001SM
...
29
WASHER, Detent BS-1704097SM
...
30
TRUNNION BS-1732346SM
...
31
WASHER, 0.516IDX1OD BS-703853
...
32
SPACER, .66 ID BS-1602946SM
...
33
TRUNNION BS-1732345SM
...
34
SPACER BS-1667811SM
...
35
STOP, Belt BS-1678306SM
...
36
SCREW, Hex Washer Head, Self Tap, 3/8-16 x 1 BS-704000
...
37
CRANK, Height Adjustment BS-1727681SM
...
38
KNOB, Spinner BS-1714084SM
...
39
PUSHNUT, 3/8 BS-703948
...
40
SUPPORT, Gauge Wheel, RH BS-1731402ASM
...
41
BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2 BS-1931352SM
...
42
ARM, Pitch BS-1728109ASM
...
43
NUT, CNTR LCK, 3/8-16 BS-703893
...
44
SPACER BS-1674440SM
...
45
WASHER BS-704128
...
46
SPACER-0.385IDX0 BS-1611705SM
...
47
CAPSCREW, 3/8-16X2 BS-703589
...
...
...
...
...
