2690514 Briggs and Stratton - 107.277680 - ZTS 7500, 19HP w/42" Mower Deck (2005)

Model: 2690514

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

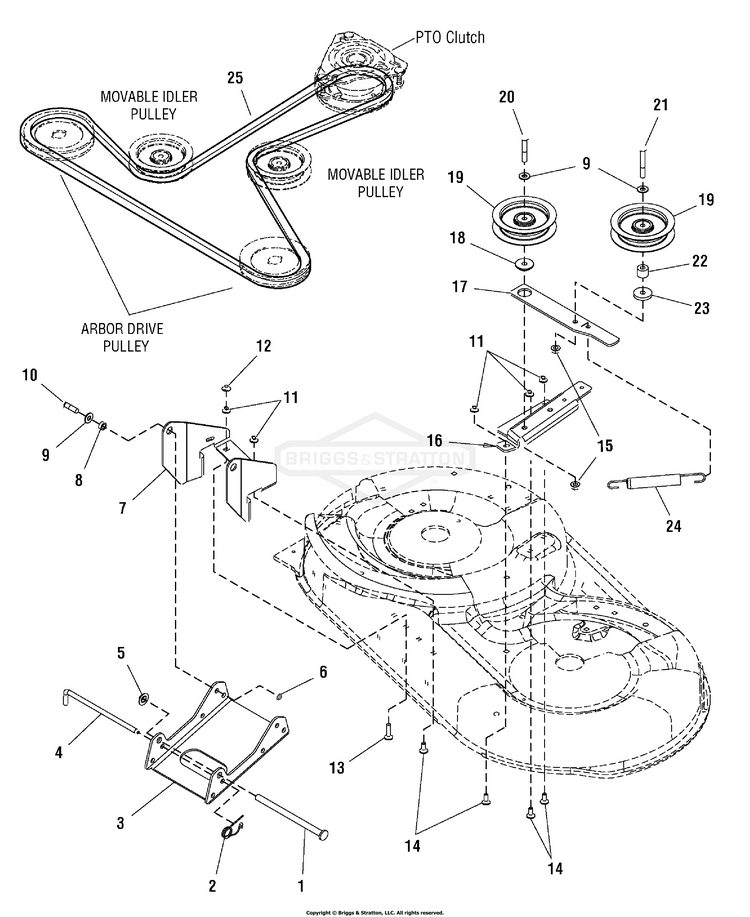

42" Mower Deck - Clutch & Support Group

...
...
1
ROD, 7-5/8 Long BS-1713578SM
...
2
PIN, 5/16 X 0.375 BS-703852
...
3
HITCH, Mower BS-1728124ASM
...
4
ROD, ZTR BS-1726012SM
...
5
PUSHNUT, CAP TYPE BS-703179
...
6
NUT BS-703117
...
7
HITCH-MOWER FRONT SEA BS-1732225ZSM
...
8
SPACER BS-2108717SM
...
9
WASHER, FLAT BS-703878
...
10
HHCS,3/8-16X1.250,GR8 BS-703969
...
11
NUT, 5/16-18, GR5 BS-703409
...
12
NUT, HEX FLNG,5/16-18 BS-704067
...
13
BOLT, 5/16-18X1.25 G5 BS-703446
...
14
BOLT, Round Head, Short Square Neck BS-703185
...
15
NUT, 3/8-16 BS-703333
...
16
BRACKET, Idler Fixed BS-1732260ASM
...
17
ARM, Idler Clutch BS-1732502ASM
...
18
SPACER, Powdered Metal BS-1714255SM
...
19
PULLEY, Idler 4" BS-1732360SM
...
20
SCREW BS-703872
...
21
CAPSCREW,3/8-16X3.25 BS-703874
...
22
SPACER BS-1667812SM
...
23
WASHER, 3/8 Black BS-1960534SM
...
24
SPRING ANCHOR KIT BS-1687303SM
...
25
V-BELT A WEDGE 98.00 BS-1732966SM
...
...
...
...
...
