2690429 Briggs and Stratton - 107.277740 - ZT 7000, 22HP w/50" Mower Deck (2005)

Model: 2690429

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

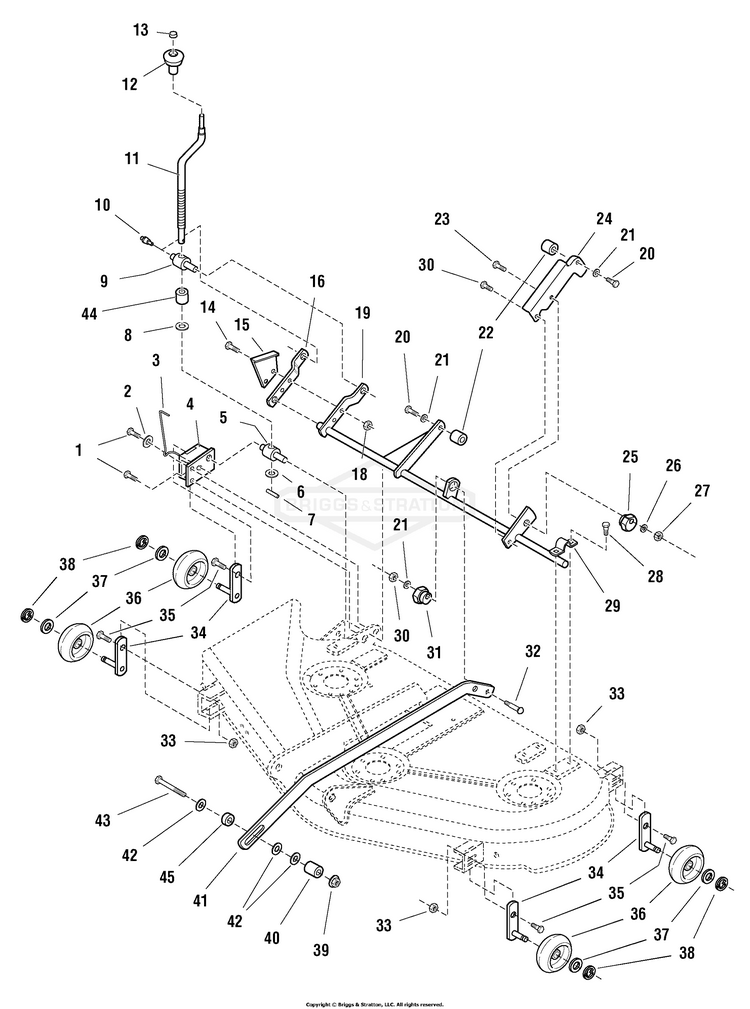

44" & 50" Mower Deck - Height Adjustment Group

...
...
1
SCREW BS-703167
...
2
WASHER, 5/16 BS-703298
...
3
ROD, Indicator Height of Cut BS-1704114SM
...
4
PLATE & BRACKET ASSEMBLY, Gauge Wheel BS-1726424ASM
...
5
TRUNNION, 1-1/4 BS-1724009SM
...
6
WASHER, Detent BS-1704097SM
...
7
PIN-SPRING .188 X 1.0 BS-2816001SM
...
8
WASHER, 0.516IDX1OD BS-703853
...
9
TRUNNION, 1-1/4 BS-1715892SM
...
10
ZERK, FITTING, 1/4 BS-703907
...
11
CRANK, Height Adjustment BS-1727681SM
...
12
KNOB, Spinner, Soft BS-1714084SM
...
13
PUSHNUT, 3/8 BS-703948
...
14
CAPSCREW, Hex Head, 5/16-18 x 1 1/4 BS-703570
...
15
BRKT, HEIGHT OF CUT E BS-1704116BMYP
...
16
ARM, Rear BS-1726409ASM
...
18
NUT, 5/16-18, GR5 BS-703409
...
19
ARM ASSEMBLY, Roller Bar 50" BS-1727906ASM
...
19
ARM ASSEMBLY, Roller Bar 44" BS-1727768ASM
...
20
BOLT, 3/8-16 X 1" GD5 BS-5025013X8SM
...
21
LOCKWASHER, SPLIT 3/8 BS-703454
...
22
SPACER, Support BS-1716010SM
...
23
BOLT, 5/16-18X1.25 G5 BS-703446
...
24
ARM, Rear Adjustable BS-1718136ASM
...
25
CAM, Eccentric, Hex BS-1714879SM
...
26
WASHER, 5/16 BS-703302
...
27
NUT, Hex Flange Collar Lock , 5/16-18 BS-2860643SM
...
28
SCREW, 5/16-18 X .75 BS-703228
...
29
STRAP, ROCKER SHAFT BS-1761690HYP
...
30
NUT, HEX, 3/8-16 BS-703577
...
31
NUT, Hex Adjusting, 11/16 BS-1704082SM
...
32
PIN, 0.375 X 2.00 BS-704241
...
33
NUT, HEX FLNG, 1/4-20 BS-703916
...
34
SHAFT & BAR ASSEMBLY, Roller Fixed Arm BS-1716020ASM
...
35
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
36
GAUGE WHEEL BS-1714760SM
...
37
WASHER BS-703128
...
38
RETAINER, RING, 1/2 BS-703976
...
39
NUT, CNTR LCK, 3/8-16 BS-703893
...
40
SPACER BS-1674440SM
...
41
ARM, Pitch 44" BS-1728109ASM
...
41
ARM, Pitch 50" BS-1727917ASM
...
42
WASHER BS-704128
...
43
CAPSCREW, 3/8-16X2 BS-703589
...
44
SPACER, .66 X 7/8 X 1 1/4 BS-1709195SM
...
45
SPACER-0.385IDX0 BS-1611705SM
...
...
...
...
...
