2690429 Briggs and Stratton - 107.277740 - ZT 7000, 22HP w/50" Mower Deck (2005)

Model: 2690429

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

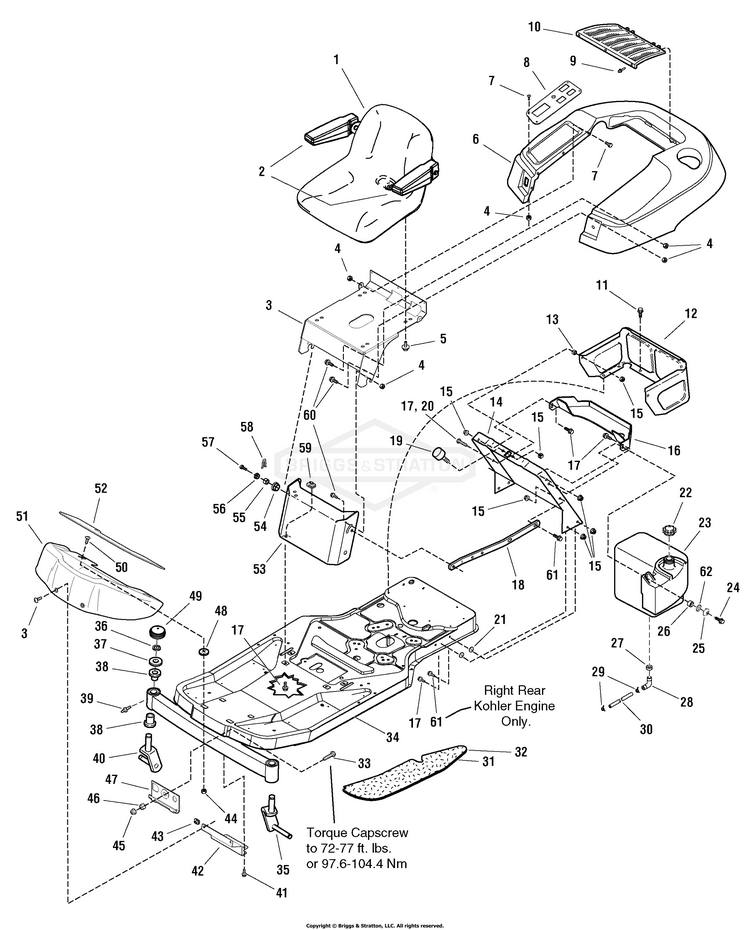

Frame, Body & Seat Group

...
...
1
SEAT ASSEMBLY, wth Arm Rests (Includes Ref. No. 68) BS-1726018SM
...
2
ARM REST KIT, (L.H. & R.H.) BS-1687021SM
...
3
SUPPORT, Seat BS-1727332ASM
...
4
NUT BS-5025391FS
...
5
BOLT, Hex Flange, 5/16-18 x 1/2 BS-7091525YP
...
6
DECK, Seat BS-1734143SM
...
7
SCREW BS-770135
...
8
PLATE, Pod Control BS-1727699ASM
...
9
RIVET, Pop BS-1673320SM
...
10
SCREEN, Seat Deck BS-7102141SM
...
11
SCREW BS-770135
...
12
SHROUD, Rear BS-7301146AYP
...
13
SPACER, Powdered Metal (22HP Models Only) BS-1673796SM
...
14
SUPPORT, Seat Deck (20HP Models) BS-1732974ASM
...
14
SUPPORT, Seat Deck (22HP Models) BS-1727308ASM
...
15
NUT, 5/16-18, GR5 BS-703409
...
16
DUCT, Air Inlet (20HP Models) BS-1727945ASM
...
16
DUCT, Air Inlet (22HP Models) BS-1727682ASM
...
17
SCREW, 5/16-18 BS-703354
...
18
BRACE, Tank BS-1727810ASM
...
19
BUMPER, Rubber BS-1726390SM
...
20
SCREW, 5/16-18 x 1-1/2, Hex Flange, Whiz Lock BS-1933689SM
...
21
RETAINER, GR5, 5/16 BS-703297
...
22
CAP, Fuel Tank BS-1714020SM
...
23
TANK, Fuel BS-1726397SM
...
24
CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1-1/2 BS-1930600SM
...
25
WASHER, 5/16 BS-703298
...
26
SPACER BS-1710437SM
...
27
BUSHING, 3/8 x 9/16 x 5/8, Rubber BS-1654930SM
...
28
ELBOW, with Screen, Gas Tank to Fuel Line BS-1674792SM
...
29
CLAMP, Hose, Wire Type E BS-2860112SM
...
30
HOSE, Fuel 11-1/2" Long BS-1726594SM
...
31
PAD, Footrest, R.H. BS-1728986SM
...
32
PAD, Footrest, L.H. BS-1728987SM
...
33
CAPSCREW, 1/2-13X1.5 BS-703571
...
34
FRAME & SPINDLES ASSEMBLY (Includes Ref. Nos. 35, 36, 37, 38, 39 & 40) BS-1687299SM
...
35
SEARS -SPINDLE ASMY-L BS-1726377ASM
...
36
RING, E-Retaining BS-2834712SM
...
37
WSHR BS-703149
...
38
BUSHING BS-1721682SM
...
39
ZERK, FITTING, 1/4 BS-703907
...
40
SEARS -SPINDLE ASMY-R BS-1726378ASM
...
41
SCREW, 5/16-18 X .75 BS-703228
...
42
BRACKET, Footrest Support BS-1726024ASM
...
43
NUT BS-705876
...
44
NUT BS-703161
...
45
NUT-HEX FLANGE 1/2-1 BS-1930644SM
...
46
SPACER BS-1709235SM
...
47
HOOK & WASHER ASSEMBLY BS-1716064ASM
...
48
BOLT, PUSHNUT 1/4 BS-703826
...
49
CAP, Hub BS-1726504SM
...
50
BOLT,1/4-20X.75 BS-703101
...
51
PANEL-FOOTREST 18GA Z BS-1726025ZSM
...
52
PAD, Footrest, Front BS-1726306SM
...
53
PANEL, Front BS-1727685ASM
...
54
SPACER BS-1704626SM
...
55
SPACER BS-1705249SM
...
56
PIVOT, Hood BS-1705248SM
...
57
PIN, Quick BS-1704628SM
...
58
SCREW, HEX, 5/16-18X1 BS-704146
...
59
NUT, SPEED, 5/16-18 L BS-1935255SM
...
60
SCREW, Hex Flange Whiz Lock, 1/4-20 x 5/8 BS-1960295SM
...
61
CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 1-1/4, G5 (20HP Models Only) BS-1930595SM
...
62
WASHER, EXT, 3/8 BS-703864
...
...
...
...
...
