2690429 Briggs and Stratton - 107.277740 - ZT 7000, 22HP w/50" Mower Deck (2005)

Model: 2690429

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

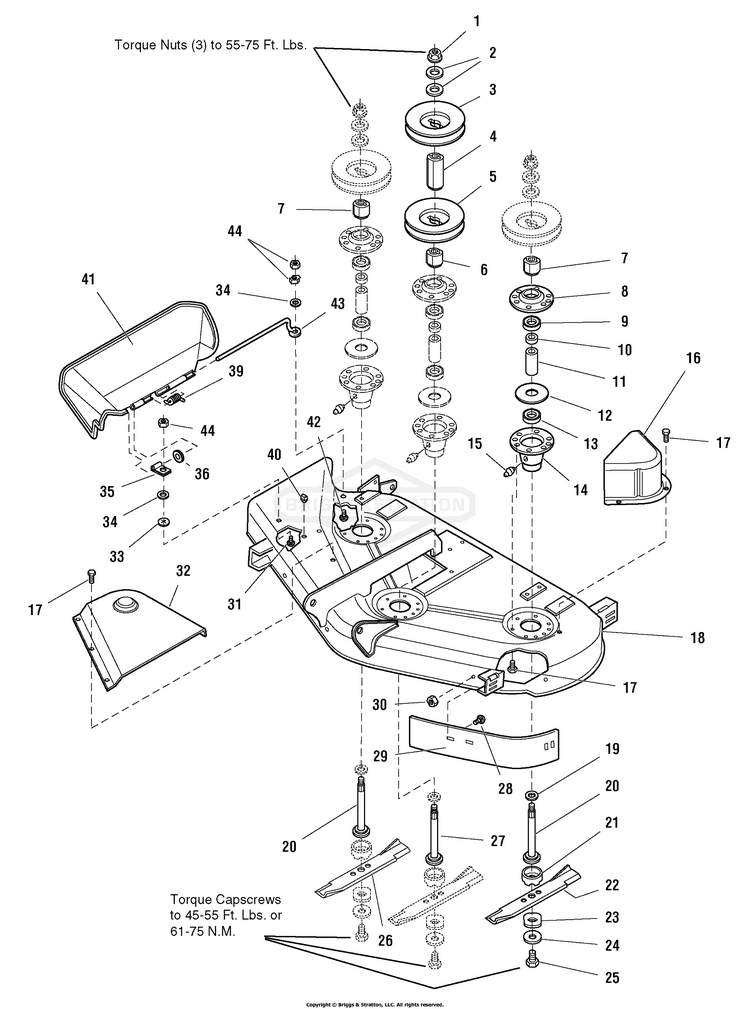

44" & 50" Mower Deck - Housing & Arbor Group

...
...
1
NUT, Hex Flange Non-Locking, 9/16-18 BS-1714419SM
...
2
WASHER, Bellville .56ID x 1.34 OD x .05T BS-1713675SM
...
3
PULLEY, LH, .49" Shallow-Groove OD 4" BS-1720387SM
...
4
HUB, Spacer, 2-13/32 BS-1713158SM
...
5
PULLEY, .49" Shallow-Groove OD 4.25" BS-1713098SM
...
6
HUB, 35/64 BS-1713533SM
...
7
HUB, Serrated, 35/64 BS-1713197SM
...
8
HOUSING-ARBOR TOP - B BS-1655729ASM
...
9
BEARING, BALL BS-2108202SM
...
10
SPACER, Bearing Sleeve BS-1715724SM
...
11
SPACER, Tube BS-1732544SM
...
12
GASKET, Foam BS-1707335SM
...
13
BEARING, BALL 11/16X1 BS-1705897SM
...
14
HOUSING ASSEMBLY, Arbor Bottom with Lube Fitting BS-1713338ASM
...
15
ZERK, FITTING, 1/4 BS-703907
...
16
COVER, Arbor BS-1729666SM
...
17
SCREW, 5/16-18 X .75 BS-703228
...
18
HOUSING ASSEMBLY, 44" Mower Deck BS-1687118SM
...
18
HOUSING ASSEMBLY, 50" Mower Deck BS-1687037SM
...
19
WASHER, Cup BS-1713619SM
...
20
SHAFT, Arbor with Extruded Washers (short) BS-1713195SM
...
21
SHIELD, Grass, Lower Arbor BS-1713196SM
...
22
BLADE, 44" MULCH BS-1716696ASM
...
22
BLADE BS-1726453YP
...
23
WASHER, Hex BS-1713089SM
...
24
WASHER, SPRING 0.475I BS-1656916SM
...
25
HHCS, 7/16-14X1.25 BS-703579
...
26
BLADE, Mower 44", R.H. (High Lift) BS-1727775ASM
...
26
BLADE-MOWER 18.12 8G BS-1726357ASM
...
27
SHAFT, Arbor with Extruded Washers (Long) BS-1713612SM
...
28
BOLT, Round Head, Short Square Neck BS-703185
...
29
BAFFLE, Blowout, Short BS-1724538ASM
...
30
NUT, Hex Flange Whiz-Lock, 5/16-18 BS-703330
...
31
CARRIAGE BOLT, 1/4-20 x 7/8, G5 BS-1931318SM
...
32
COVER, Arbor BS-1703601SM
...
33
BOLT, PUSHNUT 1/4 BS-703826
...
34
WASHER, 1/4 BS-703229
...
35
CLAMP, WIRE, .312DIA BS-1704873SM
...
36
WASHER, 5/16 BS-1919326SM
...
39
SPRING BS-1759750YP
...
40
PLUG, Button BS-1705115SM
...
41
DEFLECTOR, Discharge BS-1705449SM
...
42
BOLT, 1/4-20 X 1.5 BS-704214
...
43
ROD-.283DIA 11.65LG D BS-1706709SM
...
44
NUT, 1/4-20, NYLOCK BS-703232
...
...
...
...
...
