2690429 Briggs and Stratton - 107.277740 - ZT 7000, 22HP w/50" Mower Deck (2005)

Model: 2690429

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

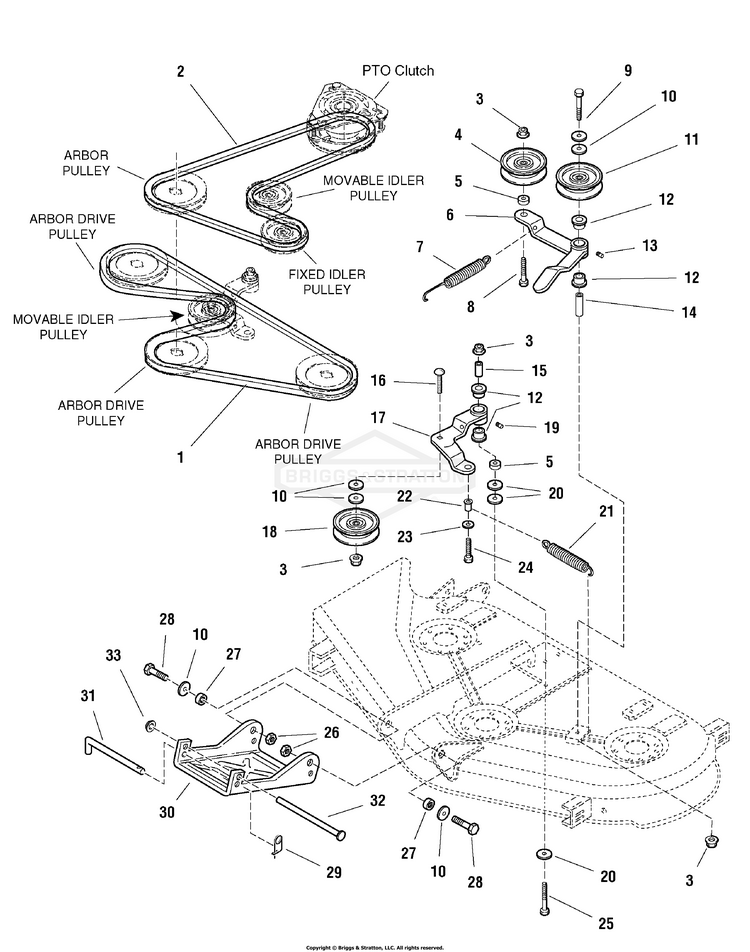

44" & 50" Mower Deck - Clutch & Support Group

...
...
1
BELT, 83.1 BS-1721532SM
...
1
V-BELT, Mower Drive, 50" Mower Deck BS-1726472SM
...
2
V-BELT, P.T.O. 44" Mower Deck BS-1727773SM
...
2
V-BELT HA 073.24 A BS-1726471SM
...
3
NUT, CNTR LCK, 3/8-16 BS-703893
...
4
PULLEY, Idler BS-2171247SM
...
5
SPACER BS-1667811SM
...
6
WELDMENT, Idler Arm (Includes Ref. Nos. 12 & 13) BS-1726815ASM
...
7
SPRING, Extension BS-1714062SM
...
8
BOLT, 3/8-16X1.75 BS-703858
...
9
CAPSCREW,3/8-16X3.25 BS-703874
...
10
WASHER, FLAT BS-703878
...
11
PULLEY, Idler BS-1706510SM
...
12
BUSHING-0.628IDX BS-1676148SM
...
13
FITTING, Lube, 1/4-20 Tapered BS-2812808SM
...
14
SPACER, Hardened BS-1657242SM
...
15
SPACER-0.39 IDX0.625O BS-1674669SM
...
16
CARRIAGE BOLT, 3/8-16 x 1-1/4, G5 BS-1960268SM
...
17
LEVER ASSEMBLY, Idler (Includes Ref. Nos. 12 & 19) BS-1718561SM
...
18
PULLEY, Idler BS-1724387SM
...
19
ZERK, FITTING, 1/4 BS-703907
...
20
WASHER, .406X1.5X.12 BS-703591
...
21
SPRING, Extension BS-1656936SM
...
22
SPACER BS-1701159SM
...
23
WASHER BS-703332
...
24
CAPSCREW, Hex Head, 1/4-20 x 1-1/6 BS-1933958SM
...
25
BOLT BS-84007037
...
26
NUT BS-703117
...
27
SPACER, Powdered Metal BS-1713791SM
...
28
HHCS,3/8-16X1.250,GR8 BS-703969
...
29
PIN, 5/16 X 0.375 BS-703852
...
30
HITCH BS-1728124ASM
...
31
ROD, Hitch BS-1726012SM
...
32
ROD, Hitch, 1/2 x 7-5/8 BS-1713578SM
...
33
PUSHNUT, CAP TYPE BS-703179
...
...
...
...
...
