195436-0781-01 Briggs and Stratton Engine

Model: 195436-0781-01

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

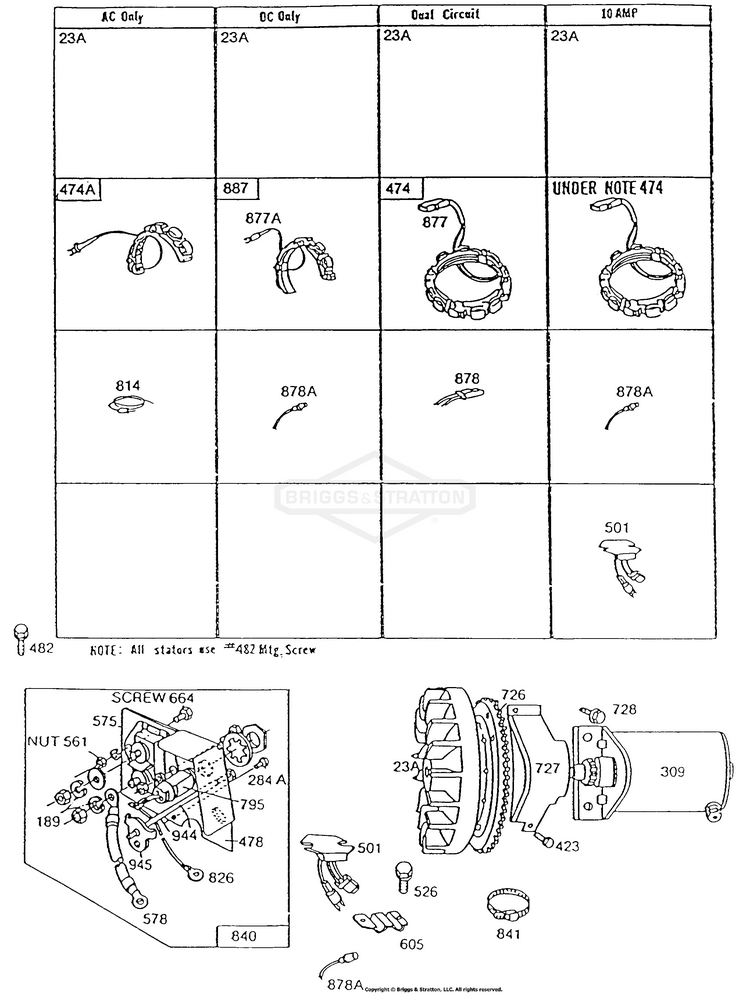

Alternator Chart, Elect Starter

...
...
23A
FLYWHEEL (Aluminum Ring Gear) For Use on Engines WITH ALTERNATOR Machined to Accept Aluminum Ring Gear (Not Included) BS-691354
...
189
WASHER, 5/16" LOCK BS-5025170SM
...
284A
SCREW (10-32 X 3/8) BS-690664
...
309
MOTOR, Starter (3 1/16 Housing) BS-497595
...
309
MOTOR, Starter (3 1/2 Housing) (Briggs & Stratton 110V) BS-396505
...
423
SCREW BS-691002
...
474A
ALTERNATOR (AC Only) BS-391595
...
474
ALTERNATOR (Uses Ref. 878A) (10, 13, or 16 Amp-Depending on Size of Flywheel Magnets) (Regulated) BS-592830
...
474
ALTERNATOR (Dual Circuit) BS-84012663
...
478
KIT, Panel BS-395408
...
482
SCREW (Tapping) BS-691183
...
501
REGULATOR (10, 13, or 16 Amp, Depending on Size of Flywheel Magnets) BS-845907
...
526
SCREW (Control Panel) BS-690297
...
561
(Starting Switch) BS-
...
575
SWITCH, Rotary (Mechanical Governor) BS-692309
...
578
CABLE, Starter BS-690630
...
605
BRACKET, Mounting BS-691177
...
664
SCREW (1/4-20 X 3/4) BS-691681
...
726
GEAR, Ring BS-696537
...
727
GUARD-FLYWHEEL Used Before Code Date 86082600 BS-690490
...
727
GUARD, Flywheel Used After Code Date 86082500 BS-690488
...
727
GUARD-FLYWHEEL Used After Code Date 86082500 BS-690490
...
727
COVER, Starter Drive BS-395405
...
728
SCREW (5/16-18 X 3/4) BS-691058
...
795
SWITCH, Toggle (Toggle Switch) Uses: 93888 Nut-Hex. BS-496590
...
795
SWITCH, Key Includes: 392832 Key Set BS-392833
...
814
HARNESS, Alternator (Ac Only) BS-390867
...
826
WIRE ASSEMBLY (Starter Switch to Ground Wire Terminal) BS-690647
...
840
KIT, Panel (Toggle Switch) BS-395408
...
840
KIT, Panel (Key Switch) BS-395409
...
841
CLAMP BS-690635
...
877A
WIRE/CONNECTOR, Alternator (10 Amp Regulated) BS-393814
...
877
WIRE/CONNECTOR, Alternator BS-393456
...
878A
WIRE ASSEMBLY (Dc Only) BS-692306
...
878
HARNESS, Wiring (Dual Circuit) BS-398661
...
887
ALTERNATOR (DC Only) BS-592828
...
944
SCREW (3 5/8 Housing) BS-690323
...
945
BRACKET, Starter Motor BS-692132
...
...
...
...
...
