1696255-01 Briggs and Stratton - BM1227SE, 11.5 Gross Torque 27" Dual Stage Snowthrower (CE) (2013-2015)

Model: 1696255-01

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

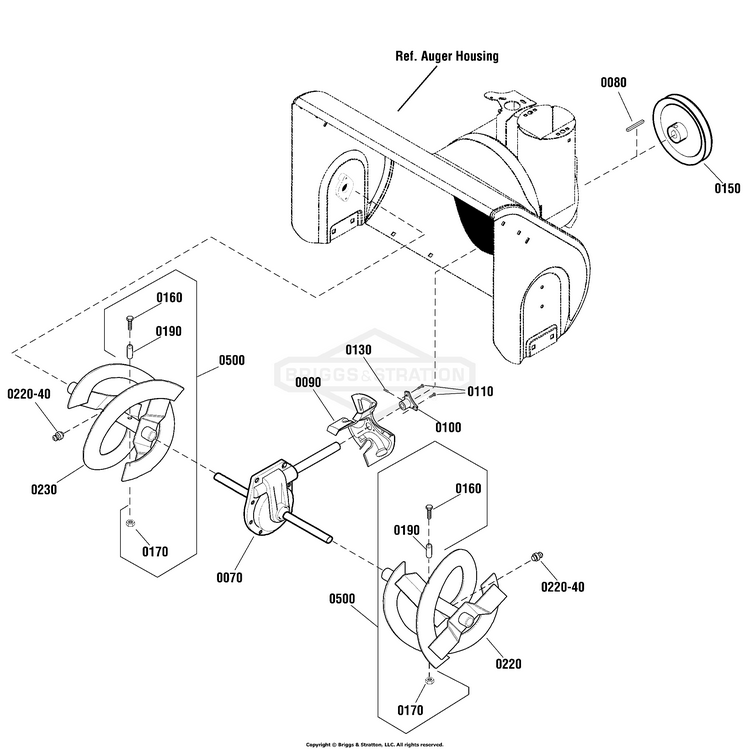

Auger Drive Group

...
...
0070
GEAR CASE ASSEMBLY, 27" BS-1752897YP
...
0070
GEAR CASE ASSEMBLY, 29" BS-1752898YP
...
0080
KEY, Square, 3/16 x 1 BS-056534MA
...
0090
IMPELLER BS-772306
...
0100
HUB, Impeller BS-1739073YP
...
0110
SCREW, 5/16-18.625 BS-703949
...
0130
SET SCREW, Socket Head, 5/16-18 x 1/2 BS-7090848SM
...
0150
PULLEY, 8.4 V4L .67 ID (Used on 27" Models) BS-583146MA
...
0150
PULLEY, 8.4 V4L .67 ID, Hybrid (Used on 29" Models) BS-1501211MA
...
0160
SCREW, 1/4-20X1.75 BS-703057
...
0170
NUT, 1/4-20 BS-703251
...
0190
SPACER, SLEEVE BS-703058
...
0220
AUGER, L.H., 27" (Includes Ref. No. 0220-40) BS-1740736BJYP
...
0220
AUGER, 29, Left (Includes Ref. No. 0220-40) BS-1740738AYP
...
0220-40
ZERK, FITTING, 1/4 BS-703907
...
0230
AUGER, R.H., 27" (Includes Ref. No. 0220-40) BS-1740737BJYP
...
0230
AUGER, R.H., 29" (Includes Ref. No. 0220-40) BS-1740739BJYP
...
0240
SPACER,FRICTION PULLE BS-1501158MA
...
0500
KIT,SHEAR BOLT.25-20X (Includes Ref. Nos. 0160, 0170 & 0190) BS-1501216MA
...
...
...
...
...
