1696254-00 Briggs and Stratton - BM924E, 9TP 24" Dual Stage Snowthrower (CE) (2012)

Model: 1696254-00

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

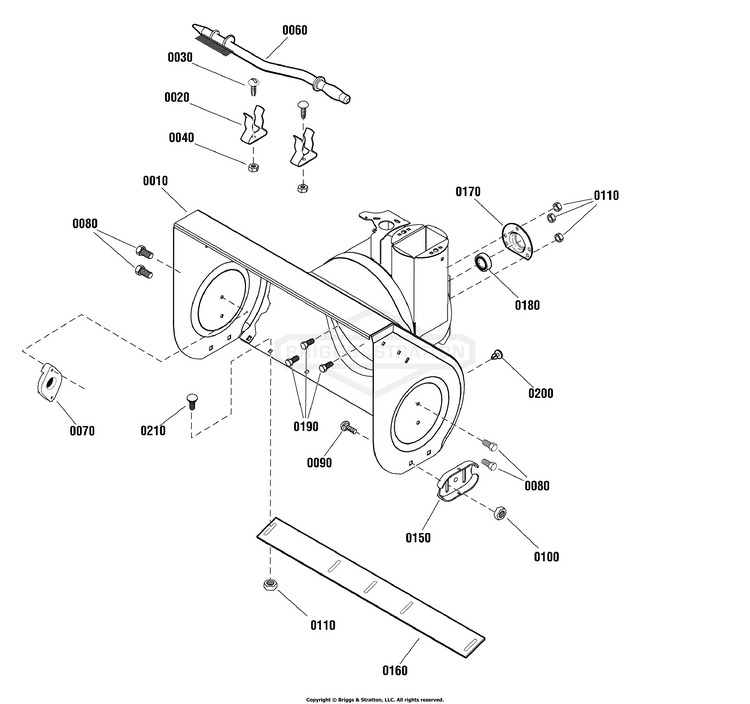

Auger Housing Group

...
...
0010
AUGER HOUSING BS-1687694YP
...
0020
CLAMP, Spring BS-1736620YP
...
0030
SCREW, 10-24X.375 BS-706144
...
0040
NUT, NYLOCK, 10-24 BS-703412
...
0060
STICK-CLEANOUT W/BRUSH BS-1736094YP
...
0070
BEARING AUGER BLACK BS-9517MA
...
0080
SCREW, 5/16-18 X .75 BS-703228
...
0090
BOLT, 3/8-16X.75 G5 BS-703448
...
0100
NUT, 3/8-16 BS-703333
...
0110
NUT, Hex Flange, Serrated Lock, 5/16-18 BS-706409
...
0150
SKID SHOE BS-1727854BMYP
...
0160
BLADE, Scraper BS-1738301AYP
...
0170
RETAINER, BEARING BS-1756809YP
...
0180
BEARING, BALL 11/16X1 BS-1705897SM
...
0190
CAPSCREW,5/16-18X.625 BS-703822
...
0200
PLUG BS-760040MA
...
0210
BOLT, 5/16-18X.625 G5 BS-703447
...
...
...
...
...
