1696253-00 Briggs and Stratton - BL924R, 9TP 24" Dual Stage Snowthrower (CE) (2012)

Model: 1696253-00

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

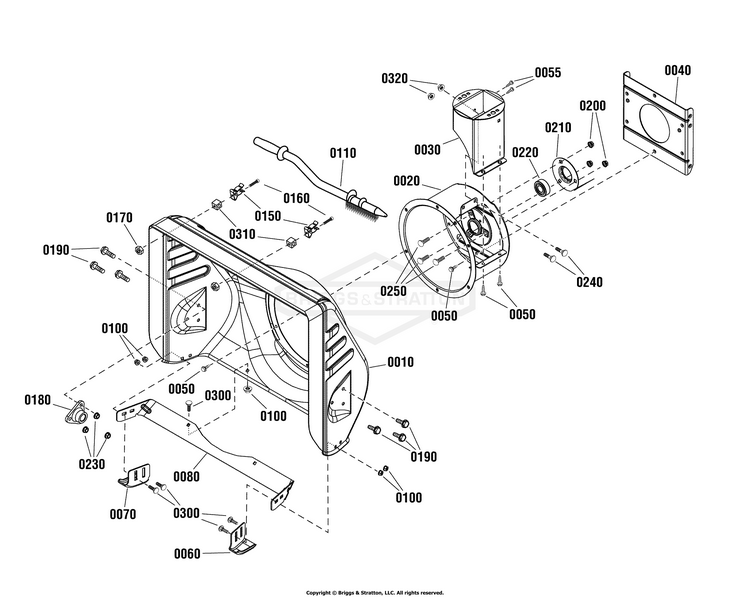

Auger Housing Group

...
...
0010
AUGER HOUSING, Stamped, VL BS-1687693YP
...
0020
HOUSING, IMPELLER, 10" BS-1751278BSYP
...
0030
CHIMNEY, Steel BS-1751938BSYP
...
0040
BRACKET, Rear Mounting BS-1751303BSYP
...
0050
SCREW, 1/4-20X.375 BS-703583
...
0055
SCREW, HEX, 1/4-20X.5 BS-704130
...
0060
SHOE-SKID, LH BLACK E BS-1751407BMYP
...
0070
SHOE, SKID, RH, BLACK BS-1751406BMYP
...
0080
SCRAPER BAR, BLACK E- BS-1751418BMYP
...
0100
NUT BS-5025391FS
...
0110
STICK-CLEANOUT W/BRUSH BS-1736094YP
...
0150
CLAMP, Spring, Snow Brush BS-1736620YP
...
0160
SCREW, 10-24 x 1 1/4 BS-704086
...
0170
NUT, NYLOCK, 10-24 BS-703412
...
0180
BEARING AUGER BLACK BS-9517MA
...
0190
SCREW, 5/16-18 BS-703354
...
0200
NUT, 5/16-18, GR5 BS-703409
...
0210
BEARING RETAINER - PL BS-1665982SM
...
0220
BEARING, BALL BS-2108202SM
...
0230
NUT, Hex Flange, Top Lock, 5/16-18 BS-703119
...
0240
BOLT,1/4-20X0.5 BS-703978
...
0250
BOLT, Round Head, Short Square Neck BS-703185
...
0300
BOLT,1/4-20X.75 BS-703101
...
0310
BLOCK,UNIVERSAL PIVOT BS-578063MA
...
0320
NUT, 1/4-20 BS-703251
...
...
...
...
...
