1696160-01 Briggs and Stratton - BP2138S, 21 Gross TP 38" Dual Stage Snowthrower (2013)

Model: 1696160-01

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

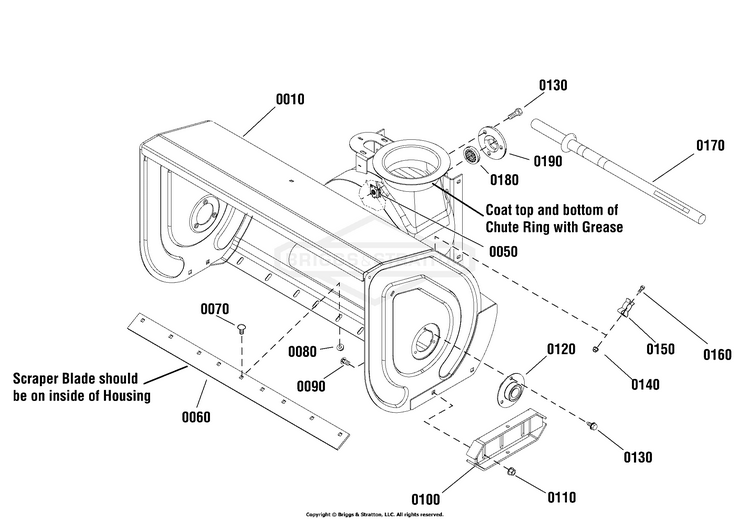

Auger Housing Group

...
...
0010
AUGER HOUSING KIT, 38" BS-1687715YP
...
0050
RETAINER, Nut, 5/16-18 BS-1930659SM
...
0060
BLADE, Scraper, 32" BS-1709948BMYP
...
0070
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
0080
NUT, HEX FLNG,5/16-18 BS-704067
...
0090
BOLT, RD HD, 3/8-16X1 BS-703814
...
0100
SHOE, Skid BS-1725747BMYP
...
0110
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
0120
KIT-BEARING (Includes Ref. No. 0130) BS-772167
...
0130
SCREW, 5/16-18 X .75 BS-703228
...
0140
NUT, NYLOCK, 10-24 BS-703412
...
0150
CLAMP, Spring BS-1736620YP
...
0160
SCREW, 10-24X.375 BS-706144
...
0170
STICK-CLEANOUT W/BRUSH BS-1736094YP
...
0180
BEARING, BALL BS-2108202SM
...
0190
BEARING RETAINER - PL BS-1665982SM
...
...
...
...
...
