1696158-00 Briggs and Stratton - 1730HD, 16.5TP 30" Dual Stage Snowthrower (2012)

Model: 1696158-00

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

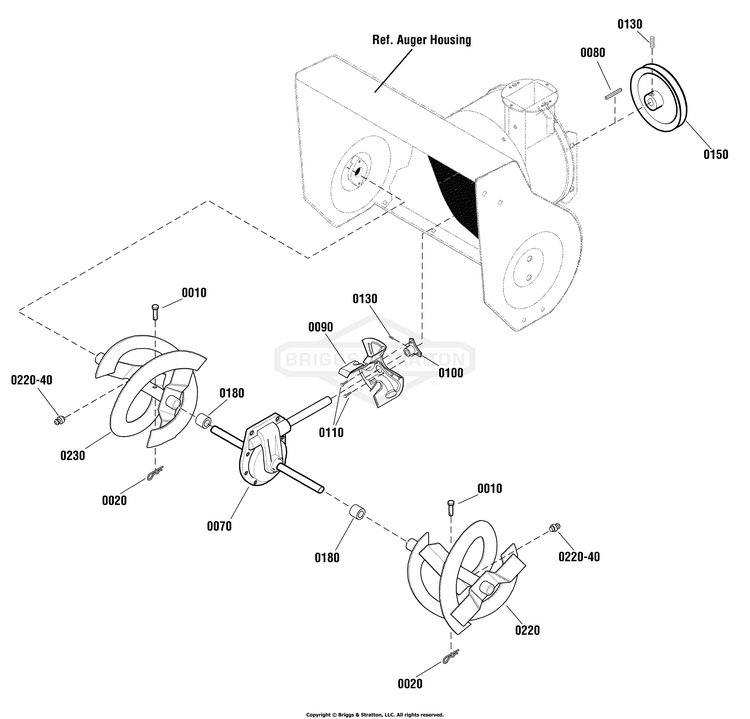

Auger Drive Group

...
...
0010
PIN, SHEAR BS-703063
...
0020
PIN, BOW TIE, 3/16 BS-703060
...
0070
GEAR CASE ASSEMBLY, 28" (Used on 28" Model) BS-1755672YP
...
0070
GEAR CASE ASSEMBLY, 30" (Used on 30" Model) BS-1755492YP
...
0080
KEY,SQUARE 3/16 X 3/4 BS-2001022MA
...
0080
KEY, 3/16X.625 BS-703891
...
0090
IMPELLER BS-772306
...
0100
HUB, Impeller BS-1739073YP
...
0110
SCREW, 5/16-18X.5 BS-703985
...
0130
SET SCREW, Socket Head, 5/16-18 x 1/2 BS-7090848SM
...
0150
PULLEY, AUGER BS-1752220YP
...
0180
SPACER, Auger, 1" BS-1733406SM
...
0220
AUGER, L.H. (Used on 28" Model) (Includes Ref. 0220-40) BS-1755565BJYP
...
0220
AUGER, L.H. (Used on 30" Model) (Includes Ref. 0220-40) BS-1737079BJYP
...
0220-40
ZERK, FITTING, 1/4 BS-703907
...
0230
AUGER, R.H. (Used on 28" Model) (Includes Ref. 0220-40) BS-1755566BJYP
...
0230
AUGER, R.H. (Used on 30" Model) (Includes Ref. 0220-40) BS-1737078BJYP
...
--
KIT, Shear Bolt (Includes Ref. Nos. 0010 & 0020) BS-1739821YP
...
...
...
...
...
