1696156-02 Briggs and Stratton - 1227MS, 11.5TP 27" Dual Stage Snowthrower (2016)

Model: 1696156-02

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

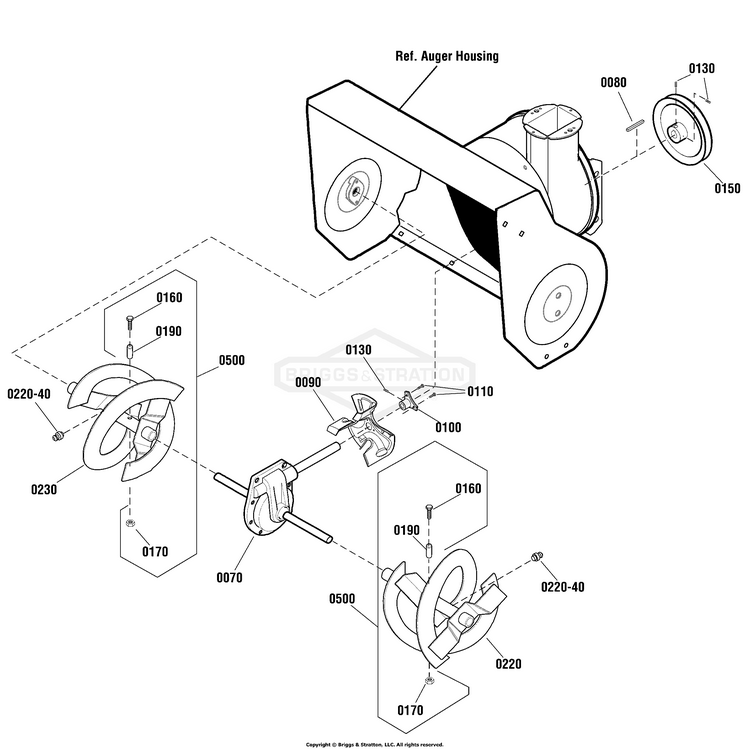

Auger Drive Group

...
...
0070
GEAR CASE ASSEMBLY BS-1752897YP
...
0080
KEY,SQUARE 3/16 X 3/4 BS-2001022MA
...
0090
IMPELLER BS-772306
...
0100
HUB, Impeller BS-1739073YP
...
0110
SCREW, 5/16-18X.5 BS-703985
...
0130
SET SCREW, Socket Head, 5/16-18 x 1/2 BS-7090848SM
...
0150
PULLEY BS-1501211MA
...
0160
SCREW, 1/4-20X1.75 BS-703057
...
0170
NUT, 1/4-20 BS-703251
...
0190
SPACER, SLEEVE BS-703058
...
0220
AUGER, LEFT (Includes Ref. No. 0220-40) BS-1740736AYP
...
0220-40
ZERK, FITTING, 1/4 BS-703907
...
0230
AUGER, RIGHT (Includes Ref. No. 0220-40) BS-1740737AYP
...
0500
KIT,SHEAR BOLT.25-20X (Includes Ref. Nos. 0160, 0170 & 0190) BS-1501216MA
...
...
...
...
...
