1696155-01 Briggs and Stratton - 924MD, 9 Gross TP 24" Dual Stage Snowthrower (2014)

Model: 1696155-01

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

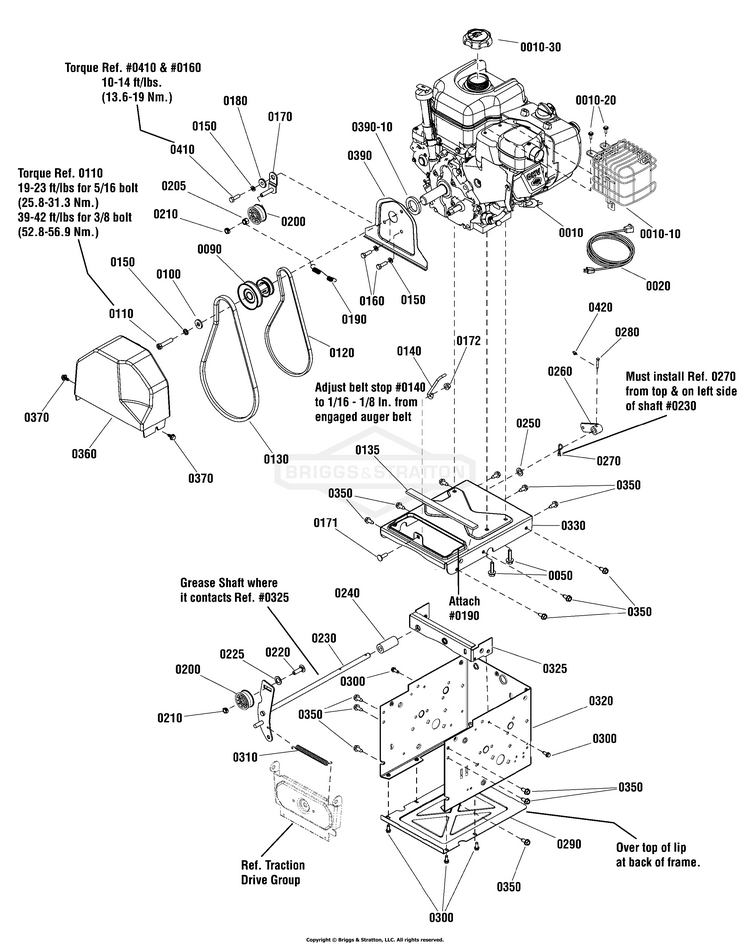

Engine & Frame Group

...
...
0010
* ENGINE, 9 Gross TP Briggs & Stratton, Export (Engine Model: 12D107-0167-F8) BS-12D107-0167-F8
...
0010
* ENGINE, 9 Gross TP Briggs & Stratton, Domestic (Engine Model: 12D107-0163-F8) BS-12D107-0163-F8
...
0010-10
GUARD, Muffler, Wire (Export Models) BS-793193
...
0010-10
GUARD, Muffler, Plate (Domestic models) (Not Illustrated) BS-797003
...
0010-20
SCREW, Muffler Guard BS-699854
...
0010-30
CAP, Fuel Tank BS-795027
...
0020
CORD, Electric, 10FT. 110V (Domestic models) BS-6219MA
...
0050
SCREW-HEX WSHR HD TAP BS-2828635SM
...
0090
PULLEY ASSEMBLY BS-1739514YP
...
0100
WASHER, 5/16 BS-703298
...
0110
BOLT BS-5025025X14YP
...
0120
BELT, DRIVE BS-1733324SM
...
0130
BELT BS-585416MA
...
0135
SEAL, Strip BS-1750314YP
...
0140
STOP, Belt BS-1737377YP
...
0150
WASHER, 5/16" LOCK BS-5025170SM
...
0160
CAPSCREW, 5/16-24X.75 BS-703336
...
0170
BRACKET, Idler BS-1687798YP
...
0171
BOLT, CRRG, 5/16-18X1 BS-703800
...
0172
NUT, Hex KEPS, Conical Washer, 5/16-18 BS-703222
...
0180
BUSHING,IDLER BRKT BS-1501065MA
...
0190
SPRING,EXT IDLER 8-13 BS-165X164MA
...
0200
IDLER, Plastic Ball Bearing BS-1502120MA
...
0205
NUT BS-703117
...
0210
NUT, 3/18-16, GR2 BS-703230
...
0220
CARRIAGE BOLT, 3/8-16 x 1-1/4, G5 BS-1960268SM
...
0225
WASHER, Thrust BS-1670971SM
...
0230
IDLER, Auger BS-1739574YP
...
0240
SPACER, Auger Bracket BS-1739964YP
...
0250
WASHER BS-703128
...
0260
ARM, Control BS-1733451SM
...
0270
PIN, 3/32 X 1.6 BS-703300
...
0280
PIN, CLEVIS, ZINC BS-703313
...
0290
PANEL, BOTTOM BS-1737221BMYP
...
0300
SCREW, 1/4-20X0.625 BS-703054
...
0310
SPRING, Extension, Auger BS-165X159MA
...
0320
FRAME BOX BS-1739107BSYP
...
0325
ANGLE, AUGER,TRACTION BS-1739093BMYP
...
0330
PLATE, Engine BS-1754138BSYP
...
0350
SCREW, 5/16-18 X .75 BS-703228
...
0360
COVER, Belt BS-1750551YP
...
0370
SCREW, 1/4-20 X 3/4 BS-1751355YP
...
0390
PLATE, SEAL BS-1733868BMYP
...
0390-10
SEAL, Foam BS-1733898SM
...
0410
BOLT, HEX, 5/16-24X1 BS-703301
...
0420
PIN, Cotter, 1/4 BS-7023590SM
...
...
...
...
...
