1695904 Briggs and Stratton - SS22E 8TP 22" Single Stage Snowthrower, CN (2010)

Model: 1695904

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

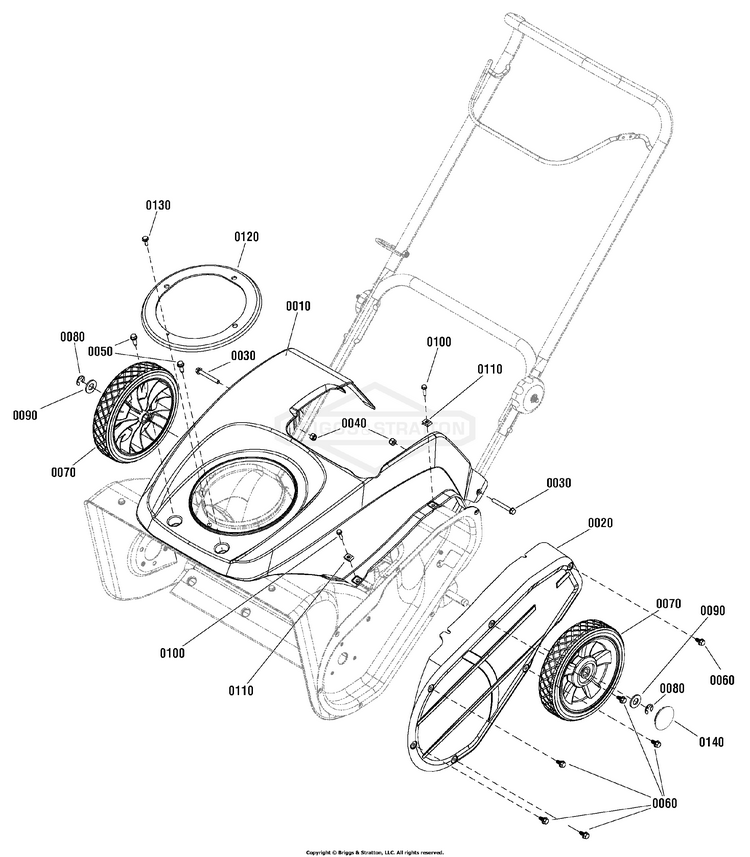

Wheel & Body Covering Group

...
...
0010
COVER, Top, Silver BS-1752326YP
...
0020
COVER, Drive Case, Black BS-1739599YP
...
0030
CAPSCREW, Hex Washer Head, 1/4 x 20 x 2 BS-1750777YP
...
0040
NUT, 1/4-20, NYLOCK BS-703232
...
0050
SCREW, Hex Hd., Slotted, Plastite, 1/4-10 x 5/8 BS-1960728SM
...
0060
SCREW, HEX, 1/4-20X.5 BS-704130
...
0070
WHEEL, 2 x 8, Plastic 1/2, SILVER BS-311237YP
...
0080
RETAINER, RING, 1/2 BS-703976
...
0090
WASHER, Flat, 17/32 x 5/8 BS-7025074SM
...
0100
CAPSCREW, Hex Washer Head, 10-24 x 3/4 BS-1750638YP
...
0110
NUT, U-Style Speed, #10 BS-885118YP
...
0120
COVER, Chute BS-1739752YP
...
0130
SCREW, 10X.62 UNSL-HW BS-316042MA
...
0140
HUBCAP BS-1751540YP
...
...
...
...
...
