1695904 Briggs and Stratton - SS22E 8TP 22" Single Stage Snowthrower, CN (2010)

Model: 1695904

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

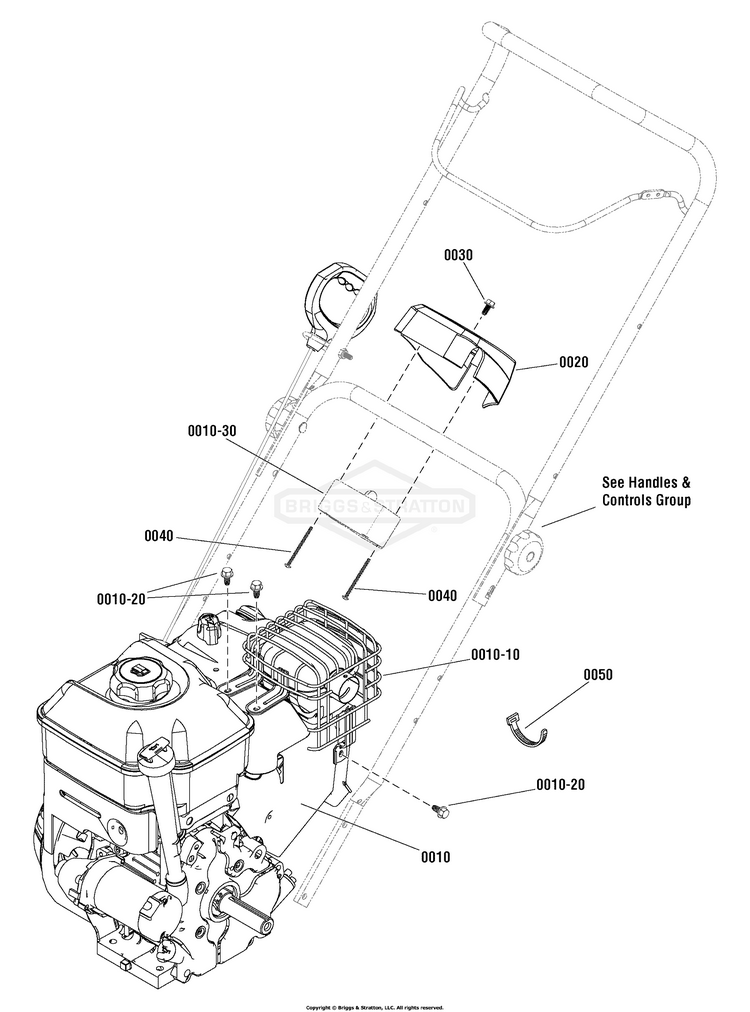

Engine Group

...
...
0010
* ENGINE, 800 Series, Briggs & Stratton, Export (Engine Model: 12A105-0160-F8) BS-12A105-0160-F8
...
0010
* ENGINE, 9TP, Briggs & Stratton, North American (Engine Model: 12D107-0162-F8) BS-12D107-0162-F8
...
0010-10
GUARD, Muffler, Wire (Export Models) BS-799028
...
0010-10
GUARD, Muffler, Plate (North American models) BS-797003
...
0010-20
SCREW, Muffler Guard, Hex Washer Head BS-699854
...
0020
HOUSING, Starter, 230V (Export Models) BS-1750033YP
...
0020
HOUSING, Starter, 110V (North American models) BS-1750032YP
...
0030
SCREW, HEX, 1/4-20X.5 BS-704130
...
0040
SCREW, Pan Head Phillips, Plast., 8-16 x 2-1/2 (Export Models) BS-1750592YP
...
0040
SCREW, Pan Head Phillips, Plast., 8-16 x 2 (North American models only) BS-1750593YP
...
0050
STRAP, Tie BS-032618MA
...
...
...
...
...
