1695904 Briggs and Stratton - SS22E 8TP 22" Single Stage Snowthrower, CN (2010)

Model: 1695904

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

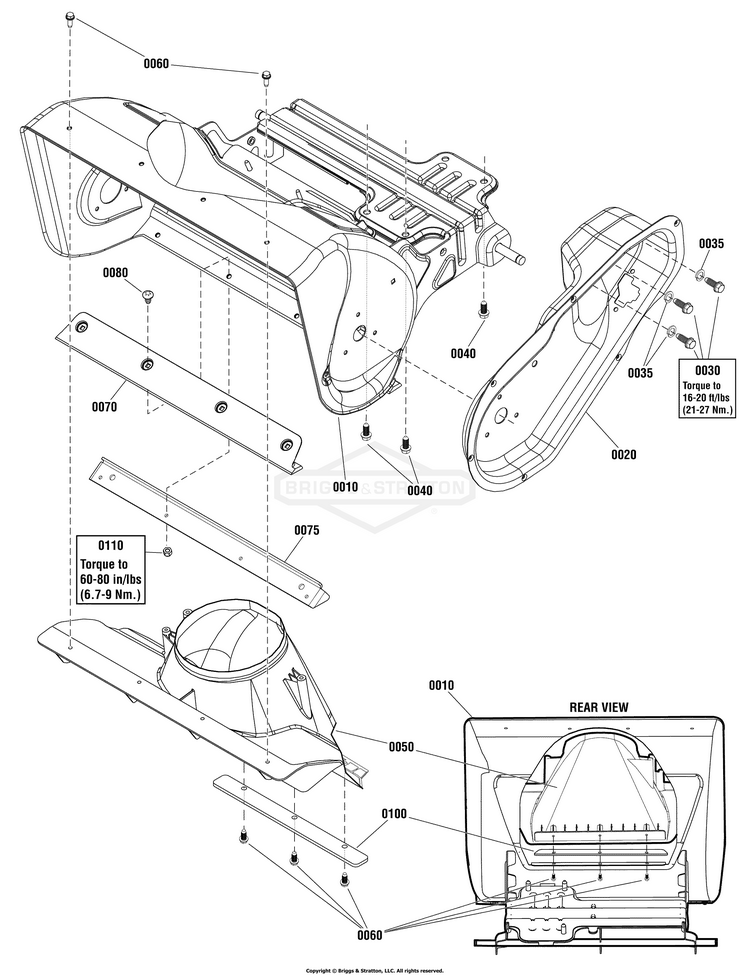

Frame Group

...
...
0010
KIT, FRAME BS-1687744YP
...
0020
HOUSING, DRIVE BS-1739100AYP
...
0030
CAPSCREW, Hex Head, 5/16-24 x 5/8 BS-1752876YP
...
0035
WASHER, 5/16" LOCK BS-5025170SM
...
0040
SCREW-HEX WSHR HD TAP BS-2828635SM
...
0050
CHIMNEY Used without Service Kit 1687864, Refer to Chute Rotation Group BS-707849
...
0050
CHIMNEY Used with Service Kit 1687864, Refer to Chute Rotation Group BS-707849
...
0060
SCREW, Hex Hd., Slotted, Plastite, 1/4-10 x 5/8 BS-1960728SM
...
0070
KIT, Scraper Bar & Flight BS-1687806
...
0075
SUPPORT, Scraper Blade BS-1752660AYP
...
0080
SCREW, 1/4-20 X .550, T-30 Pan Head Torx, Self-Tapping, Zinc/Clear BS-703961
...
0100
SPACER, Chimney BS-1751553BZYP
...
0110
NUT, 1/4-20, Nylon Hex, CZ BS-1752935YP
...
...
...
...
...
