146403-0612-99 Briggs and Stratton Engine

Model: 146403-0612-99

Save
 Part Not Listed?Part Not Listed?
product name

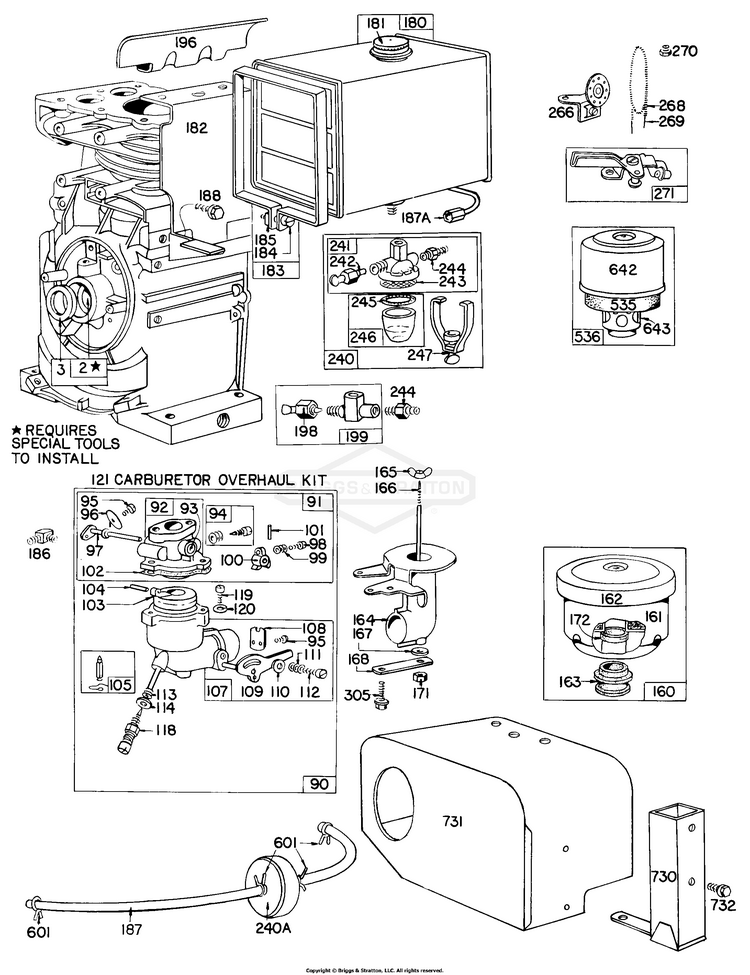

Carb Assy,Fuel Tank, A/C

...
...
2
KIT, Bushing/Seal BS-295962
...
3
SEAL, Oil BS-294606S
...
90
CARBURETOR (Manual Choke) BS-390323
...
91
BODY, Upper Carburetor BS-390404
...
92
BODY, Upper Carburetor BS-390404
...
93
BUSHING, Throttle Shaft BS-691769
...
94
VALVE, Idle Mixture Included in Carburetor Overhaul Kit-Part No. 295938 BS-292681
...
95
SCREW (Throttle Valve) BS-691437
...
96
VALVE, Throttle BS-223370
...
97
SHAFT, Throttle BS-298826
...
98
SCREW (8-32 X 5/8) BS-691615
...
99
KIT, Idle Speed BS-693942
...
100
PIN, Shaft BS-691616
...
102
GASKET, Carburetor Body Included in Carburetor Overhaul Kit-Part No. 295938 BS-27918
...
103
FLOAT, Carburetor BS-99333
...
104
PIN, Float Hinge Included in Carburetor Overhaul Kit-Part No. 295938 BS-691775
...
105
KIT, Needle/Seat BS-394681
...
107
BODY, Lower Carburetor BS-299170
...
108
VALVE, Choke BS-221835
...
109
SHAFT, Choke (Manual) BS-391987
...
110
WASHER (Thermostat) BS-691186
...
111
SPRING, Friction BS-691590
...
112
SCREW BS-691587
...
113
NOZZLE, Carburetor Included in Carburetor Overhaul Kit-Part No. 295938 BS-390395
...
114
GASKET, Nozzle (Viton Seat) Included in Carburetor Overhaul Kit-Part No. 295938 BS-691610
...
118
VALVE, Float Needle Uses: 292226 Retainer Assembly-Needle Valve 68677 Packing-Needle Valve BS-391213
...
118
VALVE, High Speed Included in Carburetor Overhaul Kit-Part No. 295938 BS-99525S
...
119
SCREW (10-32 X 5/8) BS-690278
...
120
WASHER, Lock, #10 BS-22152GS
...
121
KIT, Carburetor Overhaul BS-295938
...
160
CLEANER, Air BS-393616
...
161
CLEANER, Air BS-393616
...
162
CLEANER, Air BS-393616
...
163
GASKET, Air Cleaner Included in Gasket Set-Part No. 295970 BS-27907
...
164
ELBOW, Intake BS-298410
...
165
NUT BS-691331
...
166
STUD (Air Cleaner) (8 13/32) BS-295947
...
167
SEAL-O RING BS-691606
...
168
BEARING BS-5022832FS
...
171
NUT (1/4-28) BS-690284
...
172
GASKET, Air Cleaner (Air Cleaner) BS-27906
...
180
TANK, Fuel (4 Quart) BS-290816
...
181
CAP, Fuel Tank (1 3/4 O.D. Top) BS-791545
...
182
BRACKET, Fuel Tank BS-220858
...
182
BRACKET, Fuel Tank BS-221906
...
183
STRAP, Fuel Tank (4 Quart) BS-291367
...
184
SCREW (1/4-20 X 1-1/2) BS-690280
...
185
NUT (1/4-20) BS-690279
...
186
CONNECTOR, Hose For Connector for Metal Fuel Pipe order No. 63377 BS-691609
...
187A
LINE, Fuel (Carburetor To Filter) BS-296537
...
187A
LINE, Fuel (2 1/4) ( Metal) BS-89248
...
187A
LINE, Fuel All Fuel Pipes in this group are metal pipes. BS-294965
...
187
LINE, Fuel (13) BS-791745
...
188
SCREW (5/16-18 X 3/4) BS-691058
...
196
BRACKET, Fuel Tank (8 Quart) (Remote Mount Only) BS-691068
...
198
VALVE-FUEL SHUT OFF(M BS-592840
...
199
VALVE-FUEL SHUT OFF(M Includes 293934 Shut-Off Valve BS-592840
...
240A
FILTER, Fuel BS-298090S
...
240
FILTER, Fuel (Flexible Line) BS-690612
...
240
FILTER, Fuel BS-690612
...
241
FILTER, Fuel BS-690612
...
241
COVER, Fuel Filter (Metal Fuel Pipe) BS-99909
...
242
FILTER, Fuel BS-690612
...
243
STRAINER, Fuel BS-691962
...
244
CONNECTOR-HOSE (Flexible Fuel Pipe) For Connector for Metal Fuel Pipe order No. 53029 BS-691764
...
245
GASKET, Fuel Bowl Included in Gasket Set-Part No. 295970 BS-692190
...
246
BOWL, Fuel Filter BS-298683
...
247
YOKE, Bowl BS-691700
...
266
CONTROL, Throttle (Disc Type) BS-291460
...
268
CASING, Control Wire (Cut To Required Length) BS-691025
...
269
WIRE, Control (Cut To Required Length) If longer wire is required, specify length in inches; if shorter wire is needed, order No. 26633 and cut to required length. BS-26634
...
270
NUT (Control Wire Casing) BS-691027
...
271
LEVER, Control BS-691028
...
305
DECAL, HTSHLD, SR55/65 (1/4-20 X 1/2) BS-92666GS
...
305
SCREW (1/4-20 X 5/8) BS-692198
...
535
FILTER-A/C CARTRIDGE BS-496047
...
536
CLEANER, Air BS-393616
...
601
CLAMP, Hose (Green) BS-791850
...
642
COVER, Air Cleaner BS-497158
...
643
CUP, Air Cleaner BS-280002
...
730
MANIFOLD, Intake BS-299384
...
731
HOOD, Snow BS-492291
...
732
SCREW BS-691078

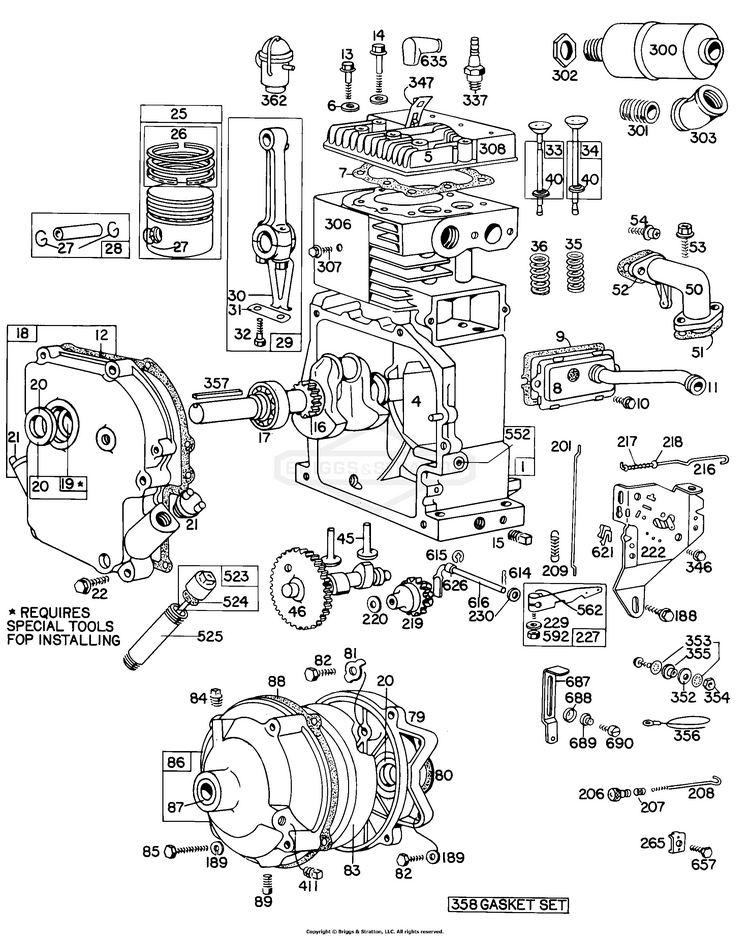

Cyl, Piston, Muffler, CrnkCse

...
...
1
CYLINDER ASSEMBLY BS-299166
...
1
CYLINDER ASSEMBLY BS-299548
...
4
PLATE, Baffle BS-221822
...
5
HEAD, Cylinder BS-210578
...
6
WASHER BS-691261
...
7
GASKET, Cylinder Head Included in Gasket Set-Part No. 295970 BS-270340
...
9
GASKET, Breather Included in Gasket Set-Part No. 295970 BS-27803S
...
10
SCREW BS-691666
...
11
TUBE, Breather (Used with Metal Air Cleaner Pipe) BS-67068
...
12
GASKET, Crankcase (1/64) Included in Gasket Set-Part No. 295970 BS-692221
...
12
GASKET, Crankcase (.005) Included in Gasket Set-Part No. 295970 BS-27876
...
12
GASKET, Crankcase (.009) Included in Gasket Set-Part No. 295970 BS-27877
...
13
MANUAL-OPERATOR (2-9/32) BS-93210GS
...
14
SCREW (5/16-18 X 2-21/32) BS-592244
...
15
PLUG, Oil Drain (3/8) BS-690946
...
16
CRANKSHAFT BS-492455
...
17
BEARING, Ball BS-691069
...
18
COVER, Crankcase BS-496982
...
19
KIT, Bushing/Seal (PTO Side) BS-295964
...
20
SEAL, Oil BS-391086S
...
21
CAP, Oil Fill BS-281658S
...
22
SCREW (Crankcase Cover) BS-691103
...
25
PISTON ASSEMBLY (Standard) BS-297692
...
25
PISTON ASSEMBLY (.010 Oversize) BS-297693
...
25
PISTON ASSEMBLY (.020 Oversize) BS-297694
...
25
PISTON ASSEMBLY (.030 Oversize) BS-297695
...
26
SET, Ring (.010 Oversize) BS-297705
...
26
SET, Ring (.020 Oversize) BS-297706
...
26
SET, Ring (.030 Oversize) BS-297707
...
26
SET, Ring (Standard) BS-297815
...
26
SET, Ring (Standard) BS-298745
...
27
LOCK, Piston Pin BS-691073
...
28
PIN, Piston (Standard) BS-499302
...
28
PIN, Piston (.005 Oversize) BS-295841
...
29
ROD, Connecting For Connecting Rod with .020 undersize Crankpin-order No. 298788 BS-295838
...
30
DIPPER-CONN ROD BS-692339
...
31
LOCK, Rod Screw BS-220811
...
32
SCREW (Connecting Rod) BS-690352
...
33
VALVE, Exhaust (With Hole In Stem) Used Before Code Date 6711060 BS-299885
...
33
VALVE, Exhaust (Grooved Stem-Includes Retainer) Used After Code Date 6711030 BS-299885
...
34
VALVE, Intake (With Hole In Stem) Used Before Code Date 6711060 BS-299884
...
34
VALVE, Intake (Grooved Stem-Includes Retainer) Used After Code Date 6711030 BS-299884
...
35
SPRING, Valve (Intake) BS-691605
...
36
SPRING, Valve (Intake) BS-691605
...
40
RETAINER, Valve (Valves With Groove In Stem) Used After Code Date 6711030 BS-690656
...
40
PIN, Retainer Used Before Code Date 6711060 BS-230476
...
40
RETAINER, Valve BS-230477
...
40
PIN, Retainer BS-230570
...
40
RETAINER, Valve (Exhaust Valve) (Exhaust) BS-691939
...
45
TAPPET, Valve BS-691793
...
46
CAMSHAFT BS-691167
...
50
MANIFOLD, Intake BS-210705
...
51
GASKET, Intake Included in Carburetor Overhaul Kit-Part No. 295938. Included in Gasket Set-Part No. 295970 BS-65647
...
52
GASKET-INTAKE Included in Gasket Set-Part No. 295970 BS-27828S
...
53
SCREW BS-690953
...
54
SCREW (Intake Manifold) BS-93208
...
79
CASE, Gear Reduction BS-690614
...
80
GASKET, Gear Case BS-691603
...
81
LOCK, Screw Head BS-691168
...
82
SCREW BS-690287
...
83
SHAFT, Auxiliary Drive BS-690387
...
84
PLUG-BREATHER (Gear Case) BS-691121
...
85
SCREW (2) BS-691076
...
86
COVER, Gear BS-690613
...
87
SEAL, Oil BS-391086S
...
88
GASKET, Gear Cover/Housing BS-691601
...
89
PLUG (1/8) BS-794903
...
188
SCREW (5/16-18 X 3/4) BS-691058
...
189
WASHER, 5/16" LOCK BS-5025170SM
...
201
LINK, Throttle BS-260872
...
206
NUT, Governor Adjusting (5-44) BS-230149
...
207
SPRING, Friction BS-692522
...
208
ROD, Governor Control BS-230841
...
209
SPRING, Governor (2700 To 3300 RPM) BS-792602
...
216
LINK, Choke BS-260880
...
217
SPRING, Choke Return BS-260903
...
218
WASHER BS-691722
...
219
GEAR, Governor BS-297656
...
220
WASHER (Governor Lever) BS-691724
...
222
BRACKET, Control BS-299012
...
227
LEVER, Governor Control (3/16 Diameter) BS-299165
...
229
WASHER BS-690390
...
230
WASHER (3/16 I.D.) BS-221559
...
265
CLAMP, Casing (Stamped Steel) BS-691024
...
300
MUFFLER BS-294599S
...
301
ELBOW, Exhaust BS-91245
...
302
LOCKNUT (Muffler and Elbow) BS-690453
...
303
ELBOW, Exhaust (45 Degree) BS-91246
...
306
SHIELD, Cylinder BS-221005
...
307
SCREW BS-691003
...
308
SWITCH, Stop BS-220824
...
337
PLUG, Spark BS-796112S
...
337
PLUG, Spark Spark Plugs 298809, 29693 and 293918 use Ignition Cable Term. No. 221798 BS-796112S
...
346
MANUAL-OPERATOR BS-93014GS
...
347
SWITCH, Stop BS-221808
...
352
WASHER (Fiber) BS-66068
...
353
WASHER BS-691077
...
354
NUT (Ground Terminal) BS-691612
...
355
WASHER (Insulating) BS-66554
...
356
WIRE, Stop (Used with Armature Refs. 333A and 333B) BS-398808
...
357
KEY, Drive Pulley (1/4) BS-691483
...
358
GASKET SET, Engine BS-295970
...
362
SHIELD-SPARK PLUG (With Stop Switch) BS-793351
...
411
PLUG-OIL DRAIN (Flush) (1/4-18 NPTF) (Flush) (1/4 18 NPTF) BS-691682
...
523
CAP, Oil Fill BS-295923
...
524
SEAL, O-Ring (Dipstick Cap) BS-690270
...
525
PIPE, Oil (5-1/4) BS-230553
...
525
TUBE, Dipstick BS-299284
...
552
BUSHING, Governor Crank (3/16 I.D.) BS-230843
...
562
BOLT (Governor Lever) BS-92613
...
592
NUT (10-24) BS-592578
...
614
PIN, Cotter BS-691620
...
615
RETAINER, Governor Shaft BS-93307
...
616
SHAFT, Governor Gear BS-231070
...
621
SWITCH, Stop BS-297472S
...
626
SPACER (Governor Lever) BS-230749
...
635
BOOT, Spark PLug BS-66538S
...
657
SCREW (10-32 X 5/8) BS-690804
...
687
SLIDE, Control BS-298957
...
688
CAP, Friction BS-690395
...
689
SPRING, Friction BS-690529
...
690
SCREW BS-92484

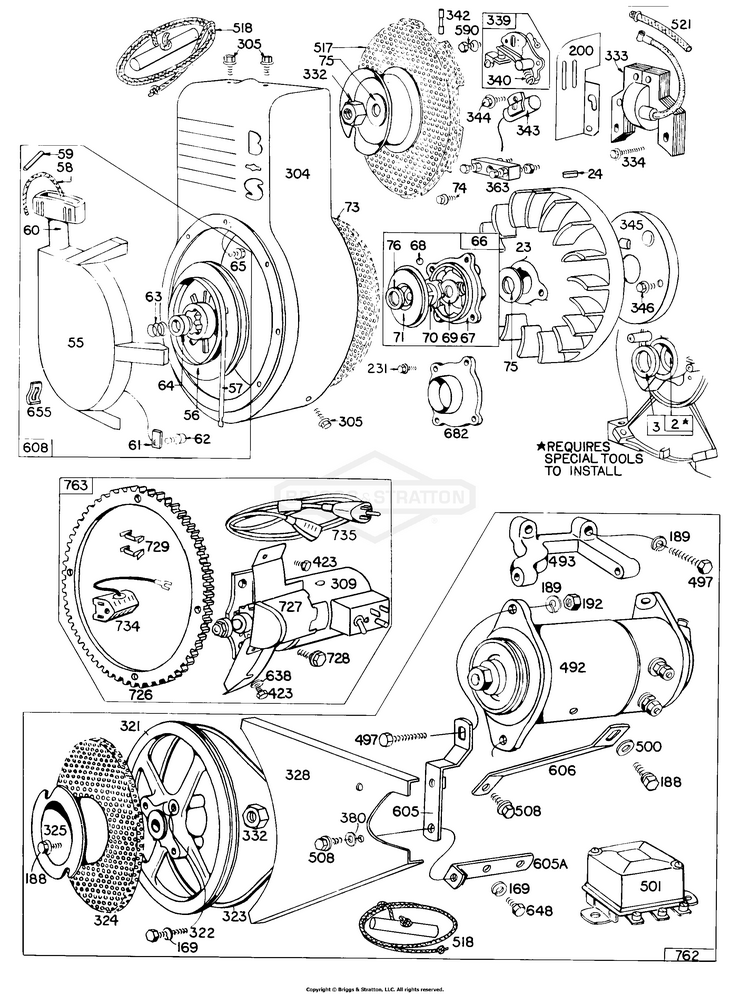

Electric Starter, Rewinds

...
...
2
KIT, Bushing/Seal BS-295962
...
3
SEAL, Oil BS-294606S
...
23
FLYWHEEL Use on engs W/O ALT (machined for STEEL ring gear, not incl) BS-299375
...
24
KEY, Flywheel (Breaker Ignition) BS-222698S
...
55
STARTER, Rewind (Casting) (Metal Pulley) BS-693900
...
56
PULLEY, Starter (63 Rope) BS-295871
...
57
SPRING-REWIND STR BS-490179
...
58
ROPE, Starter (63 Rope) If longer rope is needed, order No. 66574 and cut to required length. BS-66564
...
59
PIN, Starter Grip BS-230228S
...
60
GRIP-STARTER ROPE BS-490652
...
61
BUMPER, Starter Pulley BS-68848S
...
62
SCREW (Pulley) BS-93254
...
63
SPRING, Ratchet BS-690547
...
64
ADAPTER, Ratchet Spring BS-691920
...
65
NUT BS-230796
...
65
WASHER, Lock, #10 BS-22152GS
...
65
SCREW Used After Code Date 6904301 BS-691082
...
65
SCREW Used Before Code Date 6905011 BS-691003
...
65
SCREW (3/4) BS-93420
...
66
CLUTCH-STARTER (Rewind Starter) Used After Code Date 6601171 BS-399671
...
67
HOUSING, Clutch Used After Code Date 6601171 BS-394897
...
68
BALL, Clutch BS-691604
...
69
WASHER (1-1/16 O.D. X 17/32 I.D.) (1 1/16 O.D. X 17/32 I.D.) BS-690271
...
70
RATCHET-CLUTCH Used After Code Date 6601171 BS-691945
...
71
COVER, Ratchet Used After Code Date 6601171 BS-691359
...
73
SCREEN, Rotating Used Before Code Date 6601181 BS-220823
...
73
SCREEN-ROTATING Used After Code Date 6601171 BS-691754
...
74
SCREW BS-691078
...
75
WASHER (Heavy Flywheel) BS-690582
...
76
COVER, Ratchet BS-691359
...
169
WASHER (Blower Housing) BS-22097GS
...
188
SCREW (5/16-18 X 3/4) BS-691058
...
189
WASHER, 5/16" LOCK BS-5025170SM
...
192
LOCKNUT (5/16-18) BS-691105
...
200
GUIDE, Air BS-691170
...
231
SCREW BS-690292
...
304
HOUSING, Blower BS-491592
...
305
DECAL, HTSHLD, SR55/65 (1/4-20 X 1/2) BS-92666GS
...
305
SCREW (1/4-20 X 5/8) BS-692198
...
309
MOTOR, Starter (Mitsubishi and American Bosch 110V) BS-299329
...
321
PULLEY, Starter BS-210899
...
322
SCREW BS-90931
...
323
BELT, Vee BS-67708
...
324
SCREEN, Rotating Uses: 93506 Screw BS-221067
...
325
PULLEY, Rope Starter (With Screen) BS-299307
...
328
GUARD, Belt BS-221447
...
332
NUT (Flywheel) BS-690662
...
334
SCREW BS-691061
...
339
BREAKER, Ignition BS-29667
...
340
SPRING, Breaker Arm BS-26018
...
342
PLUNGER-BRKR BS-65704S
...
343
CONDENSER BS-29861
...
344
SCREW (Condenser) BS-93370
...
345
COVER, Breaker BS-221046
...
346
MANUAL-OPERATOR BS-93014GS
...
363
PULLER, Flywheel BS-19165
...
380
WASHER BS-91324
...
423
SCREW BS-93410
...
492
MOTOR, Starter (12v Delco-Remy #1101695 & Pulley #1949358) Delco-Remy No. 1101873 and Pulley-Delco-Remy No. 1949358) BS-296028
...
493
BRACKET, Starter Motor BS-211112
...
497
BOLT, 5/16-18 X 1-3/4 (5/16-18 X 1-3/4) BS-5025011X14SM
...
500
WASHER BS-690282
...
501
REGULATOR (Flat Mount, Delco-remy) BS-295924
...
508
SCREW (5/8) BS-692198
...
517
SCREEN/PULLEY BS-496084
...
518
KIT, Handle/Rope BS-69932S
...
521
SHIELD, Protective BS-298529
...
521
SHIELD, Protective Uses: 92704 Term.-Spark Plug BS-299367
...
590
SCREW BS-690295
...
605A
BRACKET, Support (Lower) BS-297171
...
605
BRACKET, Mounting (Upper) BS-297187
...
606
STRAP, Adjusting BS-221443
...
608
STARTER, Rewind For Starter Assembly with longer than standard length rope (63) order No. 298107 BS-693900
...
638
WASHER BS-26404
...
648
SCREW BS-91439
...
655
ANCHOR, Rewind Spring BS-221014
...
682
SHIELD, Starter BS-211516
...
726
GEAR, Ring (Steel) (Includes Mounting Hardware) BS-299543
...
727
GUARD-FLYWHEEL Uses: 92034 Screw (2) BS-690490
...
727
COVER, Starter Drive BS-395405
...
728
SCREW (5/16-18 X 11/16) BS-691058
...
729
CLIP, Wire BS-221907
...
734
PLUG BS-299484
...
735
CORD, Starter (Canadian Use Only) BS-795901
...
735
CORD, Starter (Includes Adaptor Plug) BS-795901
...
762
KIT, Electric Starter (12 Volt) (Low Position) BS-297335
...
763
KIT, Electric Starter (110 Volt Gear Drive) For 12 Volt Gear Drive Starter Kit-order No. 390211 BS-299914

Replacement Engine - US & Canada

...

No Parts Available for this Schematic

...
...
...
...
...
Processing
