073017-0 Briggs and Stratton Water Pum 198 GPM

Model: 073017-0

Save
 Part Not Listed?Part Not Listed?

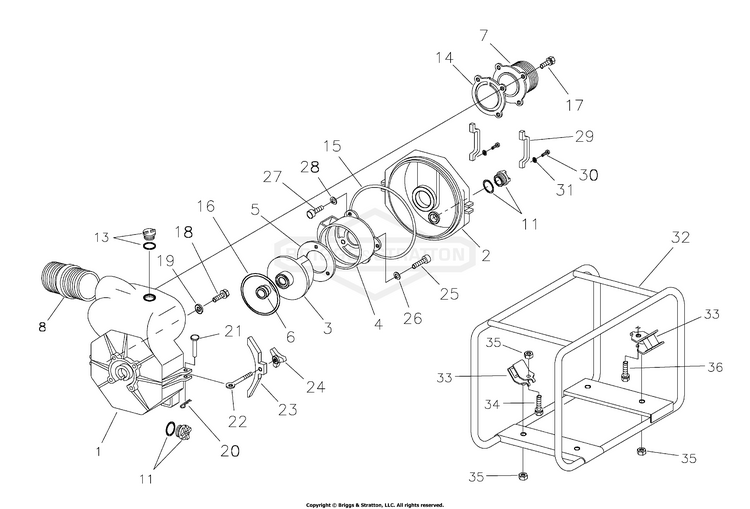

product name

Trash Pump

...
...
1
Casing BS-205231GS
...
2
Cover, Casing BS-205232GS
...
3
Impeller BS-205233GS
...
4
Inner Casing BS-205234GS
...
5
Liner BS-205235GS
...
6
Seal, Mechanical BS-205236GS
...
7
Valve Case, NPT, 2" BS-205237GS
...
8
Fitting, Pipe, NPT, 2" BS-205238GS
...
11
Assy, Plug BS-205239GS
...
13
Assy, Priming Plug BS-205240GS
...
14
Check Valve BS-205241GS
...
15
O-Ring BS-205324GS
...
16
O-Ring BS-205325GS
...
19
Washer, Rubber BS-205299GS
...
20
Snap Pin BS-205242GS
...
21
Pin BS-205243GS
...
22
Cover Bolt BS-205244GS
...
23
Casing Cover Holder BS-205245GS
...
24
Knob BS-205246GS
...
29
Drain Cover Handle BS-205247GS
...
32
Cradle BS-205248GS
...
33
Anti Vibration, Rubber BS-205249GS
...
--
Manual, Operator's Parts Not Illustrated BS-203519GS
...
--
Decal, Warning, Fuel Tank Parts Not Illustrated BS-203522GS
...
--
Decal, Warning, Vertical Parts Not Illustrated BS-204540GS

6237-00 - Hose, 2" NPT threaded Inlet/Outlet

...

No Parts Available for this Schematic

...
...
...
...
...
