071036-01 Briggs and Stratton Transfer System 200 Amp Automatic Transfer Switch

Model: 071036-01

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

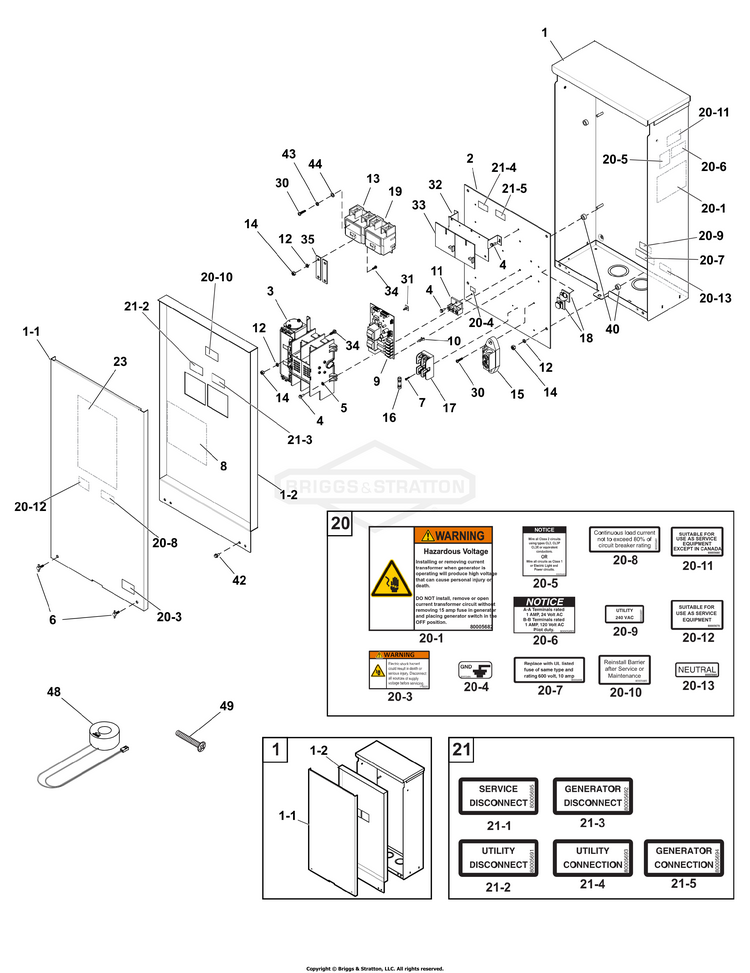

Transfer Switch - Hingeless Enclosure

...
...
1-1
DOOR BS-705951
...
1-2
DEADFRONT BS-705960
...
3
CONTACTOR, 200A BS-315050GS
...
8
INSULATION, Dead Front BS-193664GS
...
9
BOARD-CIRCUIT BS-771701
...
10
SPACER, PCB Board, 1/2 BS-197979GS
...
11
TERMINAL, GROUND BS-84006973
...
13
BREAKER, Circuit, 200A (Connect to Utility Power) BS-192065GS
...
15
TERMINAL, Neutral (Incl. Ref. No. 30 and bonding screw) BS-192696GS
...
16
FUSE BS-205110GS
...
17
HOLDER, Fuse BS-192151GS
...
18
CLIP, Latching Wire BS-197355GS
...
19
BREAKER, CIRCUIT, 225A (Connect to Generator Power) BS-84007974
...
23
DECAL, 200A, ATS BS-205061GS
...
31
STANDOFF BS-202841GS
...
32
BRACKET, Circuit Breaker Mounting BS-204428GS
...
33
INSULATOR, Circuit Breaker BS-192879GS
...
35
BAR-BUS BS-319267GS
...
40
NUT, HEX, 3/8-16 BS-703577
...
48
TRANSFORMER BS-208106GS
...
49
SCREW, Bonding, 1/4-20 X 1 3/4" BS-84007447
...
--
WIRE (Not Illustrated) BS-192242UGS
...
--
WIRE (Not Illustrated) BS-192242VGS

Wiring Diagram - Transfer Switch

...

No Parts Available for this Schematic

Wiring Schematic - Transfer Switch

...

No Parts Available for this Schematic

...
...
...
...
...
