071021-0 Briggs and Stratton Transfer System 200 Amp Automatic Transfer Switch w/ACCM2-MLD

Model: 071021-0

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

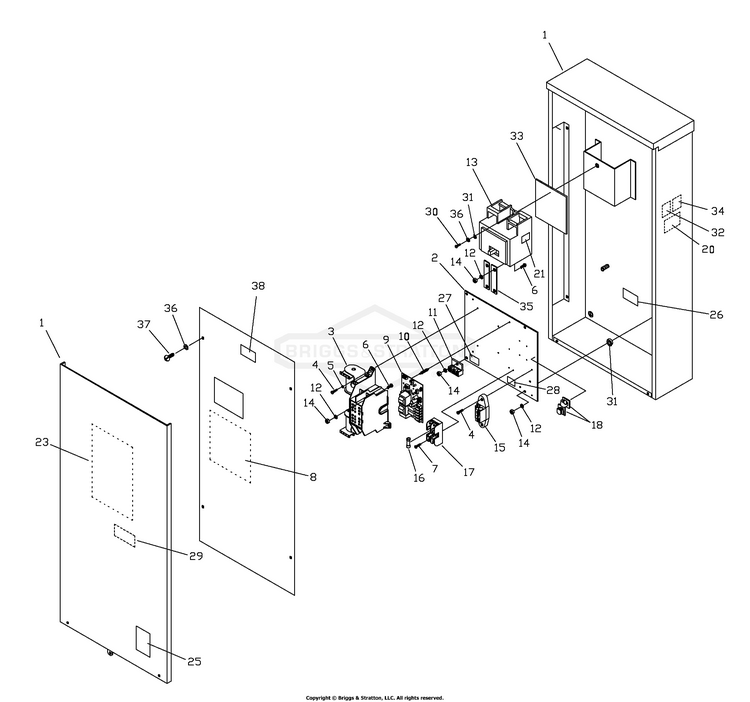

Automatic Transfer Switch

...
...
1
Assy, Enclosure BS-~NSP
...
2
Back Panel BS-~NSP
...
3
CONTACTOR, 200A BS-315050GS
...
8
Insulation, Dead Front BS-193664GS
...
9
Control, Board BS-197279GS
...
10
Spacer BS-201685GS
...
11
TERMINAL, GROUND BS-84006973
...
13
Breaker Circuit, 200A BS-192065GS
...
15
Terminal, Neutral (Incl. Ref. No. 4 and bonding screw) BS-192696GS
...
16
FUSE BS-205110GS
...
17
Fuse Holder BS-192151GS
...
18
Clip, Latching Wire BS-197355GS
...
20
Decal, CT Warning BS-196355GS
...
21
Decal, Connection, Utility BS-B5106GS
...
23
Decal, 200A, ATS BS-196521GS
...
25
Decal, Warning Shock BS-205395GS
...
26
Decal, Fuse BS-190984GS
...
27
Decal, Ground BS-B4986GS
...
28
DECAL SHEET-WARNINGS BS-704418
...
29
Decal, Breaker, Circuit BS-193450GS
...
31
NUT, HEX, 3/8-16 BS-703577
...
32
DECAL SHEET-WARNINGS BS-704420
...
33
Insulation, Circuit Breaker BS-192879GS
...
34
Decal, Contacts Rating BS-197294GS
...
35
BAR-BUS BS-319267GS
...
38
DECAL SHEET-WARNINGS BS-704420
...
xx
Current Transformer BS-195728GS

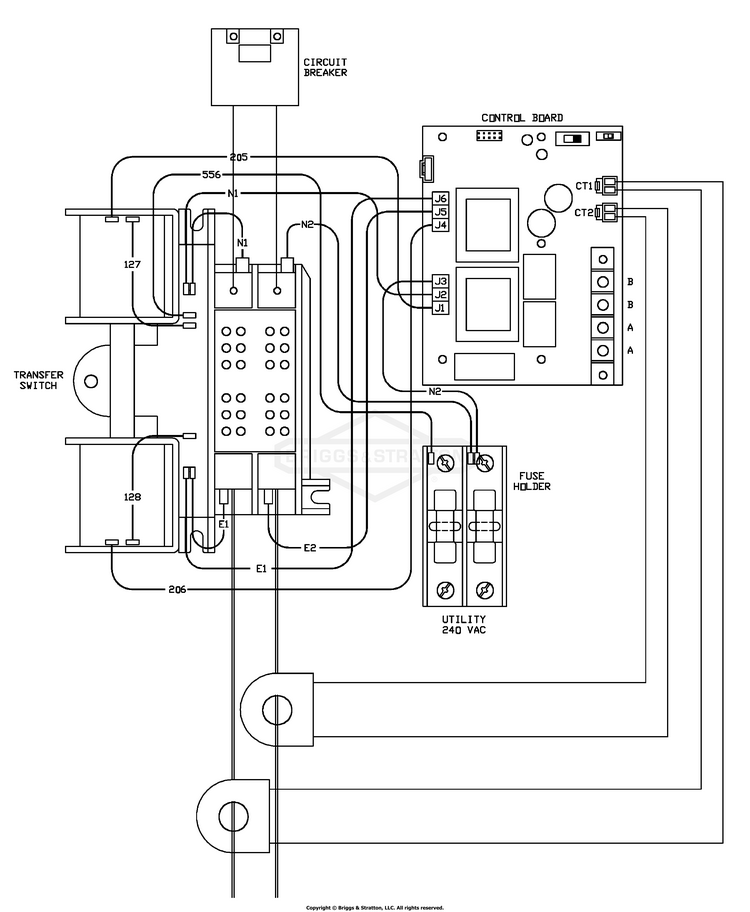

Wiring Diagram - Transfer Switch

...

No Parts Available for this Schematic

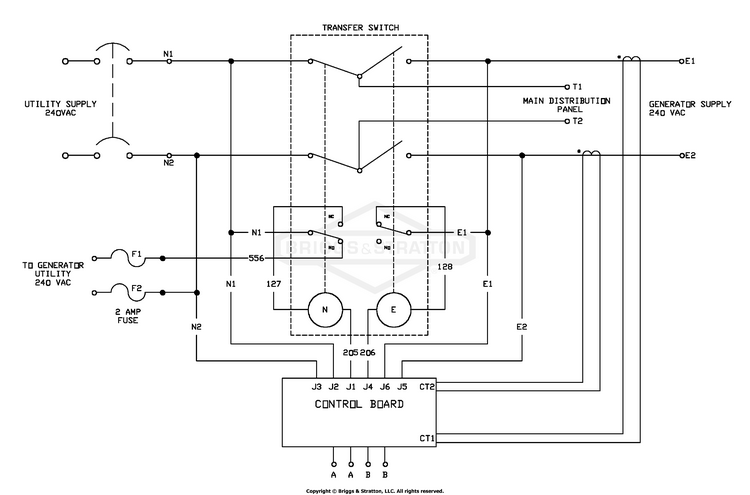

Wiring Schematic - Transfer Switch

...

No Parts Available for this Schematic

...
...
...
...
...
