product name

071013-0 Briggs and Stratton Transfer System Power Management System

Model: 071013-0

Save
 Part Not Listed?Part Not Listed?
product name

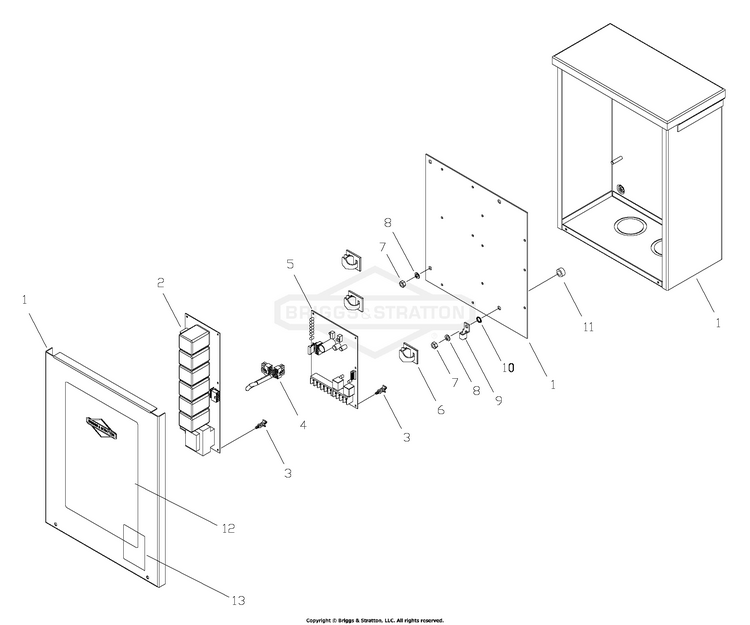

Power Management System

...
...
1
ENCLOSURE BS-~NSP
...
2
BOARD, Load Control Center Relay BS-196616GS
...
3
SPACER, PCB Board, 1/2" BS-197979GS
...
4
HARNESS,Wire, Load Control Center BS-198112GS
...
5
BRD, LOAD CNTRL CNTR BS-201924GS
...
6
CLIP, Latching Wire BS-198431GS
...
9
TERMINAL BS-186345GS
...
11
NUT, HEX, 3/8-16 BS-703577
...
12
DECAL BS-198433GS
...
13
DECAL,Warning BS-190992GS
...
--
MANUAL, Load Control Center Not Illustrated BS-198113GS
...
--
BLOCK,Terminal w/ Levrs Not Illustrated BS-197956GS
...
--
LUG, 1/4 Tab Not Illustrated BS-74094GS
...
--
LUG, 1/4, 18-22 Not Illustrated BS-77211GS

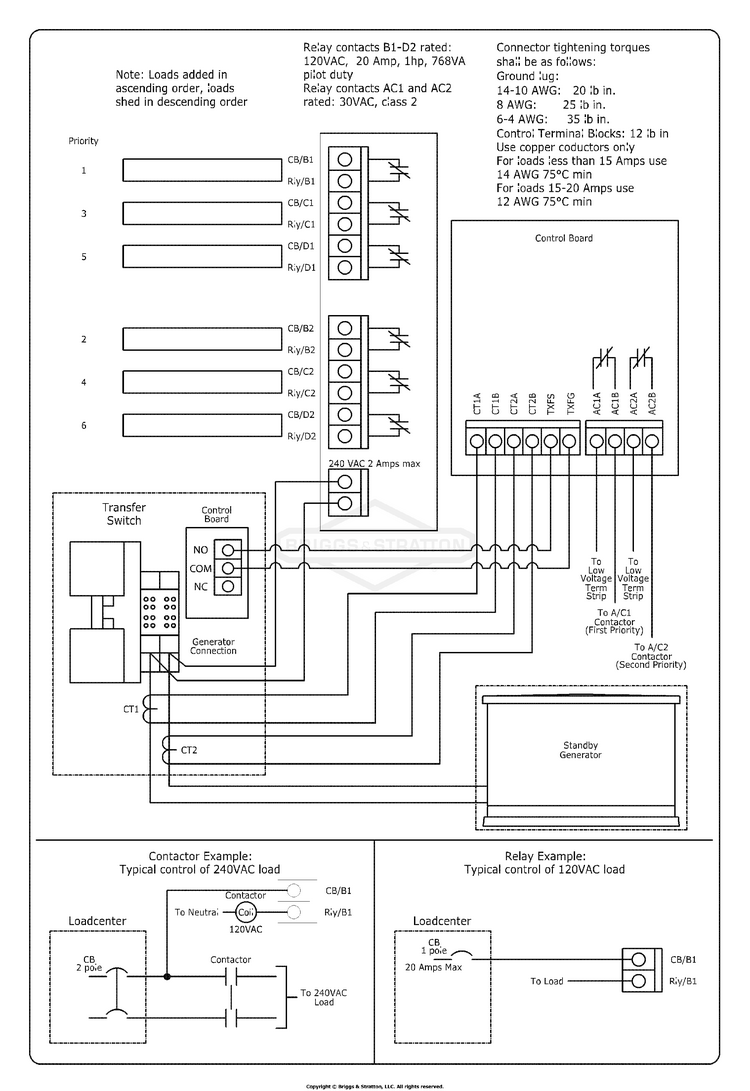

Wiring Decal

...

No Parts Available for this Schematic

...
...
...
...
...
