071011-0 Briggs and Stratton Transfer System 200 Amp Automatic Transfer Switch w/ACCM & MLD

Model: 071011-0

Save
 Part Not Listed?Part Not Listed?
product name

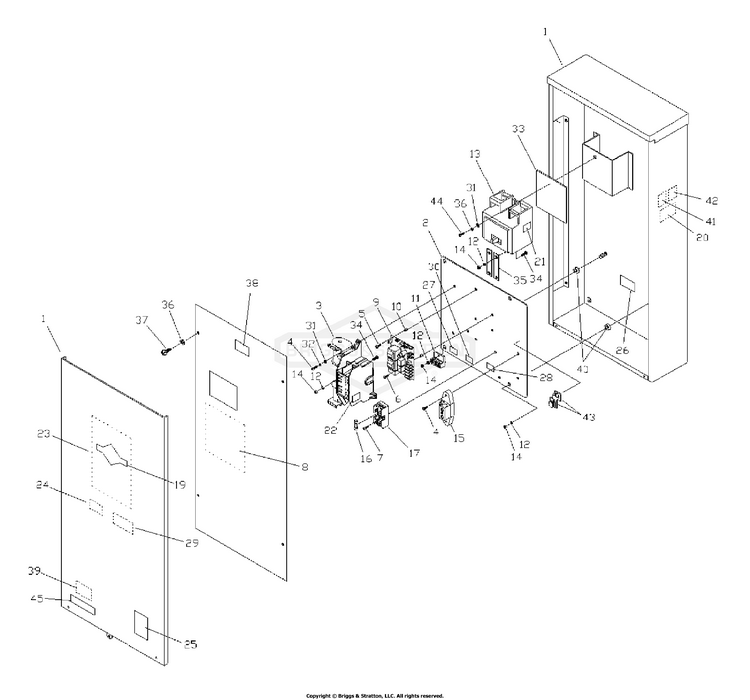

Transfer Switch

...
...
1
ASSY, Enclosure BS-~NSP
...
2
BACK PANEL BS-~NSP
...
3
TRANSFER SWITCH, 200A, w/Hndle BS-192664GS
...
8
INSULATION, Dead Front BS-193664GS
...
9
BOARD-CIRCUIT BS-200429GS
...
10
SPACER, Nylon #6 - 32 BS-196353GS
...
11
TERMINAL, GROUND BS-84006973
...
13
BREAKER Circuit, 200A BS-192065GS
...
15
TERMINAL,Neutral (Incl. Ref. No. 4 and bonding screw) BS-192696GS
...
16
FUSE BS-205110GS
...
17
FUSE HOLDER BS-192151GS
...
19
DECAL, B & S Logo BS-198136GS
...
20
DECAL, CT Warning BS-196355GS
...
21
DECAL, Connection, Utility BS-B5106GS
...
22
DECAL, Connection, Gnrtr BS-B5107GS
...
23
DECAL, 200A,ATS BS-196521GS
...
24
DECAL, Suit as Srv Equipment BS-192558GS
...
25
DECAL, Warning Shock BS-190992GS
...
26
DECAL, Fuse BS-190984GS
...
27
DECAL, Ground BS-B4986GS
...
28
DECAL SHEET-WARNINGS BS-704418
...
29
DECAL, Breaker, Circuit BS-193450GS
...
30
DECAL, Load BS-193307GS
...
33
INSULATION, Circuit Breaker BS-192879GS
...
35
BAR-BUS BS-319267GS
...
38
DECAL SHEET-WARNINGS BS-704420
...
39
DECAL, UL LIsted BS-~NSP
...
40
NUT, HEX, 3/8-16 BS-703577
...
41
DECAL SHEET-WARNINGS BS-704420
...
42
DECAL,Contacts Rating BS-197294GS
...
43
CLIP, Latching Wire BS-197355GS
...
45
DECAL,Intelligen Logo BS-198615GS
...
CURRENT TRANSFORMER Not Illustrated BS-195728GS

Wiring Diagram - Transfer Switch

...

No Parts Available for this Schematic

Wiring Schematic - Transfer Switch

...

No Parts Available for this Schematic

...
...
...
...
...
