product name

071007-0 Briggs and Stratton Transfer System 100 Amp Automatic Transfer Switch w/ 16 Circuits and ACCM

Model: 071007-0

Save
 Part Not Listed?Part Not Listed?

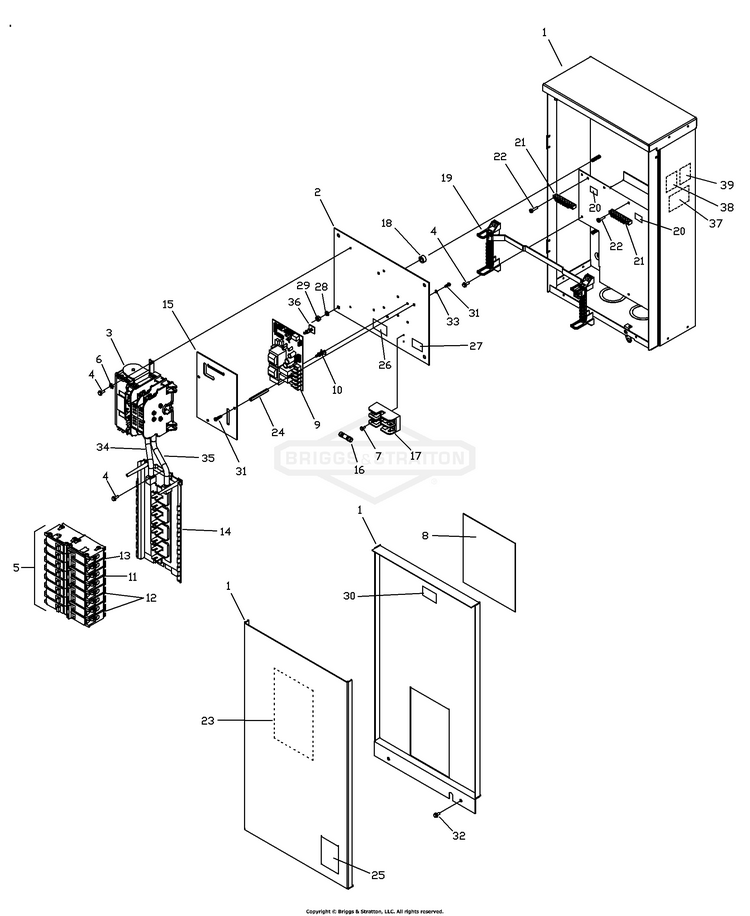

product name

Transfer Switch

...
...
1
ASSY, Enclosure BS-~NSP
...
2
BACK PANEL BS-~NSP
...
3
CONTACTOR, 100A BS-314865GS
...
5
BREAKER Circuit BS-198725GS
...
8
INSULATION, Dead Front BS-193664GS
...
9
CONTROL, Board BS-197279GS
...
10
SPACER, PCB Board, 1/2 BS-197979GS
...
11
BREAKER Circuit BS-198722GS
...
12
BREAKER Circuit BS-198721GS
...
13
BREAKER Circuit BS-198723GS
...
14
BUS, Double Rw Brkr Mntng BS-~NSP
...
15
COVER, Circuit Board BS-204511GS
...
16
FUSE BS-205110GS
...
17
FUSE HOLDER BS-192151GS
...
18
SPACER BS-~NSP
...
19
BAR, Neutral Connection BS-~NSP
...
20
DECAL, Ground BS-B4986GS
...
21
GROUND BAR BS-~NSP
...
23
DECAL, 100A, ATS BS-205108GS
...
24
SPACER BS-204433GS
...
25
DECAL, Warning Shock BS-190992GS
...
26
DECAL, Fuse BS-190984GS
...
27
DECAL SHEET-WARNINGS BS-704418
...
30
DECAL SHEET-WARNINGS BS-704420
...
34
WIRE - R BS-204431GS
...
35
WIRE - R BS-204432GS
...
36
SUPPORT, Locking, Crct Brd BS-202841GS
...
37
DECAL, CT Warning BS-196355GS
...
38
DECAL SHEET-WARNINGS BS-704420
...
39
DECAL, Contacts Rating BS-197294GS
...
xx
MANUAL, Operator’s Parts Not Illustrated BS-202267GS
...
xx
CURRENT TRANSFORMER Parts Not Illustrated BS-195728GS

Wiring Diagram - Transfer Switch

...

No Parts Available for this Schematic

Wiring Schematic - Transfer Switch

...

No Parts Available for this Schematic

...
...
...
...
...
