040248-0 Briggs and Stratton 7,000 Watt Dual Fuel Home Generator System

Model: 040248-0

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

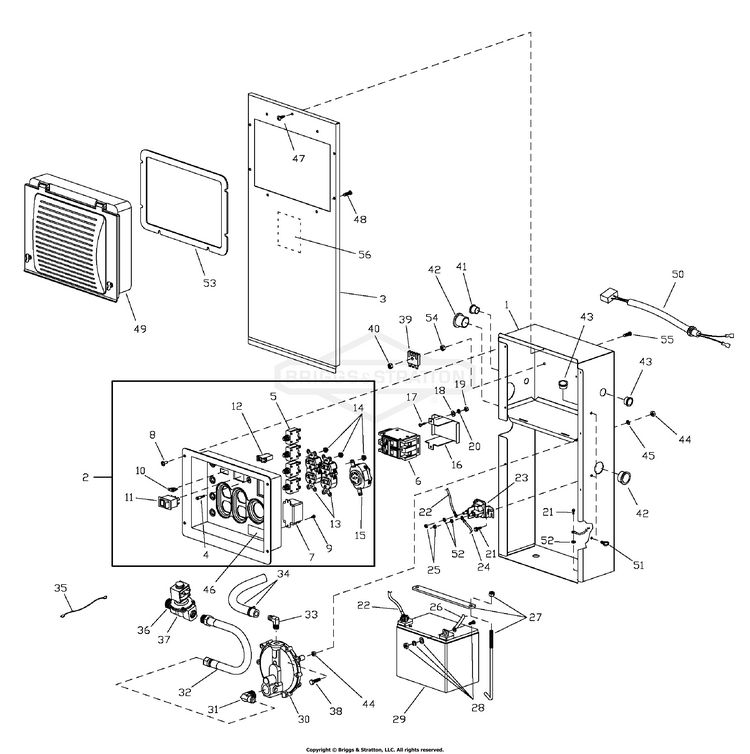

Control Panel

...
...
1
PANEL, Control BS-195229GS
...
2
PANEL, Control BS-199925GS
...
3
PANEL, Back BS-203441GS
...
4
LAMP, LED BS-200384GS
...
5
BREAKER-CIRCUIT 20A BS-209872GS
...
6
BREAKER, Circuit, 30A BS-192828DGS
...
7
RELAY BS-200641GS
...
9
SCREW, M3.5-1.57 x 8.0 BS-200245GS
...
10
FUSE, Auto Type, 15 Amp BS-84010838
...
11
SWITCH, ON/OFF/ON BS-195218GS
...
12
HOLDER, Fuse BS-200367GS
...
13
OUTLET, 120, 20A BS-68759GS
...
14
PALNUT, 5/32 BS-189165GS
...
15
OUTLET, 120/240V TL30A BS-43437GS
...
16
BRACKET BS-192931GS
...
22
WIRE BS-193171GS
...
23
SOLENOID, Starter BS-691656
...
24
CABLE, Starter Solenoid to Starter Motor, 6 AWG Red BS-194659GS
...
26
WIRE BS-188573AGS
...
27
KIT, Hardware, Battery BS-199844GS
...
28
KIT, Hardware, Battery Terminal BS-193347GS
...
29
BATTERY BS-188443GS
...
30
REGULATOR, FUEL BS-84012834
...
31
FITTING BS-186151GS
...
32
HOSE BS-186148GS
...
33
FITTING BS-186150GS
...
34
HOSE, NG/LPG BS-195005GS
...
35
WIRE BS-193537CGS
...
36
FITTING BS-192449GS
...
37
SOLENOID, Gas Fuel BS-194683GS
...
39
RECTIFIER, Battery Charge BS-65795GS
...
40
NUT, Lock, 8-32 BS-200576GS
...
41
BUSHING, Snap BS-192455GS
...
42
BUSHING, Snap BS-186173GS
...
43
BUSHING, Snap BS-186582GS
...
46
DECAL BS-200227GS
...
48
PLASTITE BS-B3311GS
...
49
COVER, Panel BS-200130GS
...
50
HARNESS, Wiring BS-200362GS
...
51
KIT, Retainer Clips BS-195009GS
...
53
SEAL, Foam BS-200285GS
...
56
DECAL BS-205397GS
...
--
RELAY (Not Illustrated) BS-201010GS
...
...
...
...
...
