040248-0 Briggs and Stratton 7,000 Watt Dual Fuel Home Generator System

Model: 040248-0

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

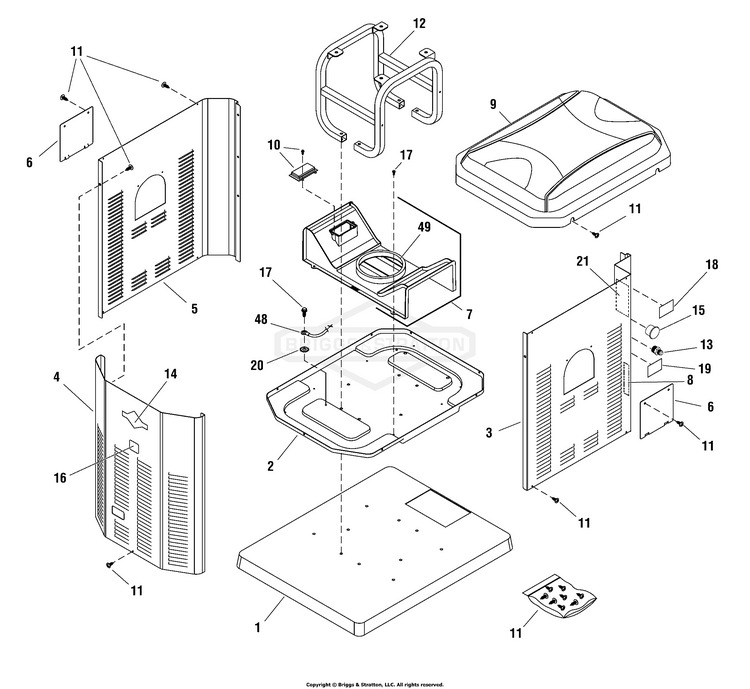

Enclosure Group

...
...
1
PAD-MOUNTING BS-704983
...
2
BASE BS-U191852GS
...
3
PANEL ASSEMBLY, Right BS-203440GS
...
4
PANEL ASSEMBLY, Front BS-200880GS
...
5
PANEL ASSEMBLY, Left BS-199335GS
...
6
COVER, Oil Filter BS-U208787GS
...
7
DUCT (Includes Ref. No. 7) BS-195228GS
...
8
DECAL BS-200327GS
...
9
ROOF ASSEMBLY BS-199009GS
...
10
REGULATOR, Voltage BS-314338GS
...
11
KIT, Hardware, Enclosure BS-194991GS
...
12
CRADLE BS-B191860GS
...
13
FITTING BS-200729GS
...
14
DECAL BS-199296GS
...
15
PLUG, Hole BS-185976GS
...
16
DECAL BS-200409GS
...
18
DECAL BS-195642GS
...
19
DECAL, Operation Instructions BS-186640GS
...
21
DECAL BS-203603GS
...
48
WIRE BS-195496GS
...
49
SEAL, Foam BS-193061GS
...
...
...
...
...
