040243-0 Briggs and Stratton 10,000 Watt Home Generator System

Model: 040243-0

Save
 Part Not Listed?Part Not Listed?
product name

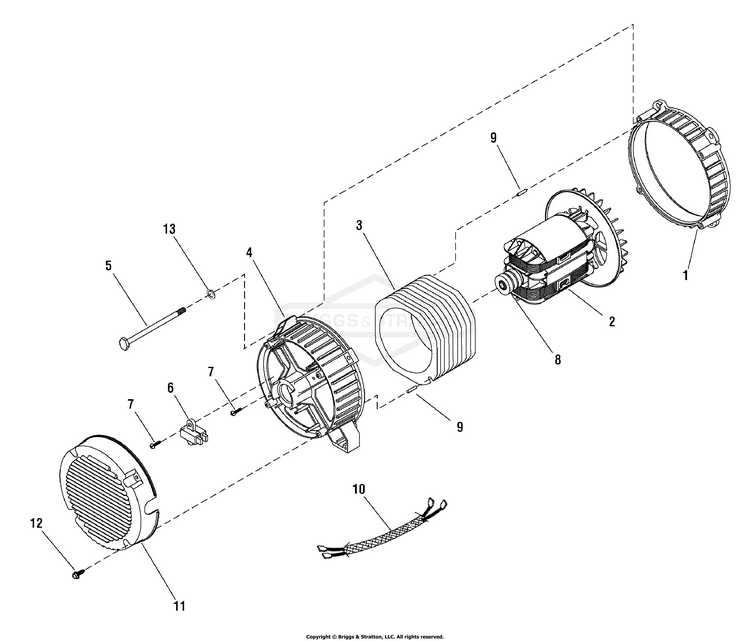

Alternator Group

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR BS-201309GS
...
3
STATOR BS-207506GS
...
4
CARRIER, Bearing BS-193336GS
...
5
BOLT BS-66449LGS
...
6
BRUSH ASSEMBLY BS-66386GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
BEARING BS-65791GS
...
9
PIN BS-81917GS
...
10
HARNESS BS-193472GS
...
11
COVER, Rear Bearing BS-192906GS
...
12
TAPTITE BS-74908GS

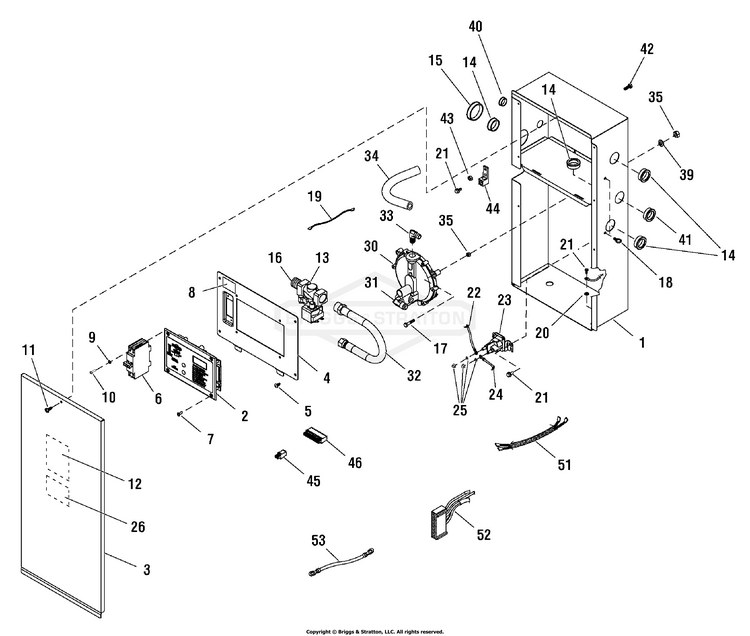

Control Panel Group

...
...
1
BOX, Control Panel BS-195117GS
...
2
CONTROL PANEL ASSEMBLY BS-311353GS
...
3
PANEL, Access BS-206197GS
...
4
PANEL, Control BS-U201825GS
...
5
SCREW, Phillips Truss Head, 10-32 x 5/8 BS-192445GS
...
6
BREAKER, Circuit, 50A BS-209790GS
...
7
SCREW BS-205947GS
...
8
DECAL BS-205394GS
...
12
DECAL BS-205397GS
...
13
SOLENOID, Gas Fuel BS-194683GS
...
14
BUSHING, Snap BS-186173GS
...
15
BUSHING, Snap BS-203015GS
...
16
FITTING BS-192449GS
...
18
CLIPS BS-195009GS
...
19
WIRE BS-195337CGS
...
21
SCREW, HEX, 1/4-20X.5 BS-704130
...
22
WIRE BS-193171GS
...
23
SOLENOID, Starter BS-691656
...
24
CABLE, Starter Solenoid to Starter Motor, 6 AWG Red BS-194659GS
...
25
KIT, Hardware BS-194251GS
...
26
DECAL BS-193297GS
...
30
REGULATOR, FUEL BS-84012834
...
31
FITTING BS-186151GS
...
32
HOSE, Flex, NG / LPG BS-186148GS
...
33
FITTING BS-205955GS
...
34
HOSE BS-843858
...
40
BUSHING, Snap BS-186582GS
...
41
BUSHING, Snap BS-197493GS
...
44
LUG BS-199011GS
...
45
CONNECTOR, 2 Pin BS-205991GS
...
46
CONNECTOR, 10 Pin BS-205992GS
...
51
HARNESS, Wiring BS-206318GS
...
52
HARNESS, Wiring BS-198894GS
...
53
WIRE BS-188573AGS
...
--
DECAL, Explosion BS-206609GS
...
--
FUSE, Auto Type, 15 Amp BS-84010838
...
--
HARNESS, Control Box BS-196069GS

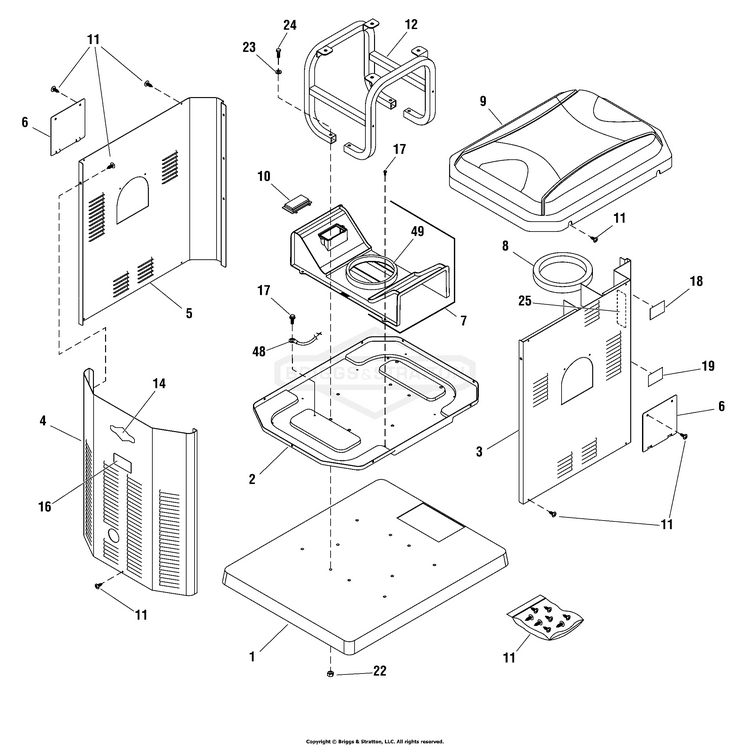

Enclosure Group

...
...
2
BASE BS-U191852GS
...
3
PANEL, Right BS-206194GS
...
4
PANEL, Front BS-206193GS
...
5
PANEL, Left BS-206195GS
...
6
COVER, Oil Filter BS-U208787GS
...
7
KIT, Baffle, Air In-take w/Seals (Includes Ref. No. 49) BS-195228GS
...
8
SEAL, Foam BS-199629GS
...
9
ROOF (Includes Ref. No. 8) BS-208609GS
...
10
REGULATOR, Voltage BS-196070GS
...
11
KIT, Hardware Enclosure BS-206387GS
...
12
CRADLE BS-B195088GS
...
14
DECAL BS-203442GS
...
16
DECAL BS-200409GS
...
17
SCREW, HEX, 1/4-20X.5 BS-704130
...
18
DECAL BS-195642GS
...
19
DECAL, Operation Instructions BS-186640GS
...
25
DECAL BS-206824GS
...
48
WIRE BS-195496GS
...
49
SEAL, Foam BS-193061GS

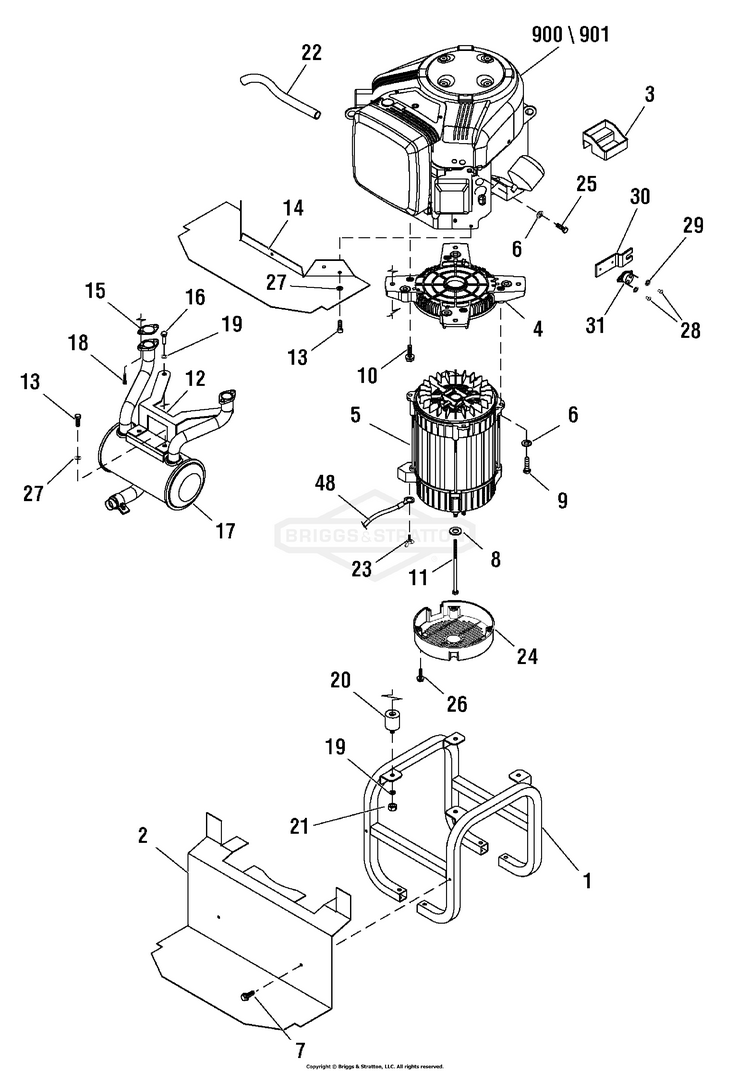

Main Unit Group

...
...
1
CRADLE BS-B195088GS
...
2
BOX, Muffler Bottom BS-200856GS
...
3
TRAY, Oil Drain BS-193536GS
...
4
ADAPTER, Engine BS-196727GS
...
7
SCREW, HEX, 1/4-20X.5 BS-704130
...
8
WASHER BS-96796GS
...
10
SCREW, HEX, 3/8-16 BS-704010
...
11
CAPSCREW, Hex Head, 5/16-24 x 10-7/8 BS-187365EGS
...
12
BRACKET, Muffler BS-200857GS
...
14
BOX, Muffler Top BS-200855GS
...
15
GASKET, Exhaust BS-692236
...
17
MUFFLER BS-201561GS
...
18
SCREW BS-698941
...
20
MOUNT, Vibration BS-38353GS
...
22
HOSE, Oil Drain BS-1723165SM
...
23
SCREW BS-86494GS
...
24
COVER, Rear Bearing BS-192906GS
...
26
TAPTITE BS-74908GS
...
28
SCREW BS-708730
...
29
WASHER BS-27772GS
...
30
PLATE, Switch BS-195124GS
...
31
SWITCH BS-195130GS
...
48
WIRE BS-15253621GS
...
901
HOSE BS-843858
...
--
MANUAL, Operator’s (Not Illustrated) BS-205513GS
...
--
KIT-MANUAL ACC (Not Illustrated) BS-312816GS
...
--
HOSE-FLEX NG/LPG (Not Illustrated) BS-202295GS
...
--
FILTER, Cartridge (Not Illustrated) BS-841359
...
--
FILTER, Pre Cleaner (Not Illustrated) BS-272490S
...
--
FILTER, Oil (Not Illustrated) BS-492932B
...
--
PAINT, Touchup, Gray (Not Illustrated) BS-198810GS
...
--
KIT,SERVICE,WALL PLATE (Not Illustrated) BS-313326GS
...
--
MANUAL, Engine (Not Illustrated) BS-279550TRI
...
--
MANUAL, Installation (Not Illustrated) BS-205750GS
...
--
KIT, Cold Weather (Includes Battery and Oil Warmers) (Optional Accessory) BS-6030
...
--
PAINT, Spray, Gray (Optional Accessory) BS-199474GS

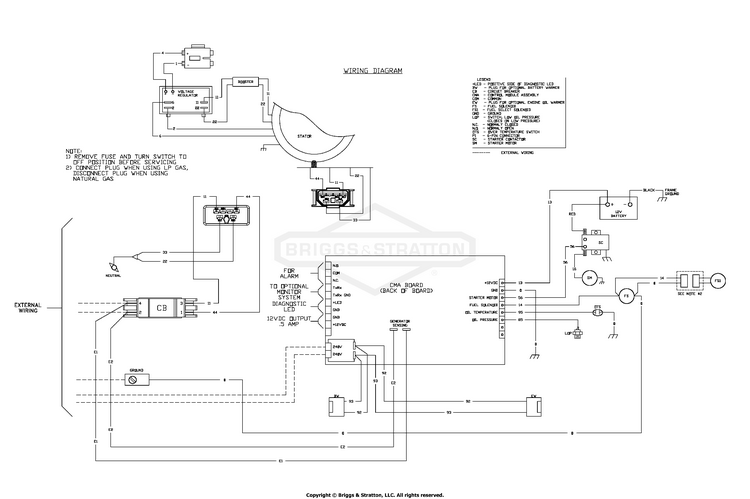

Wiring Diagram - Standby Generator

...

No Parts Available for this Schematic

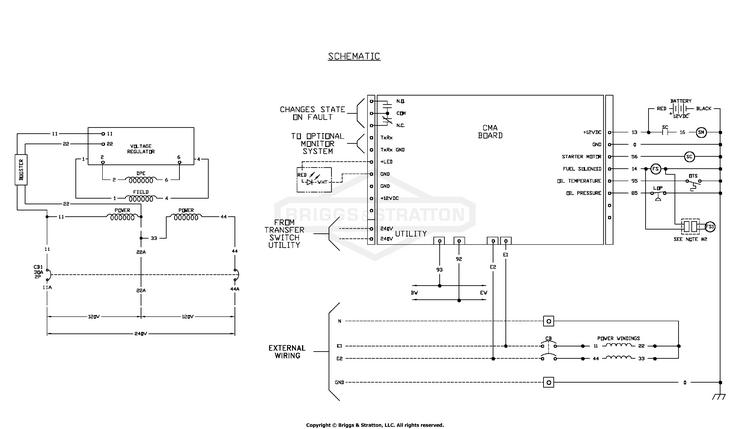

Wiring Schematic - Standby Generator

...

No Parts Available for this Schematic

...
...
...
...
...
